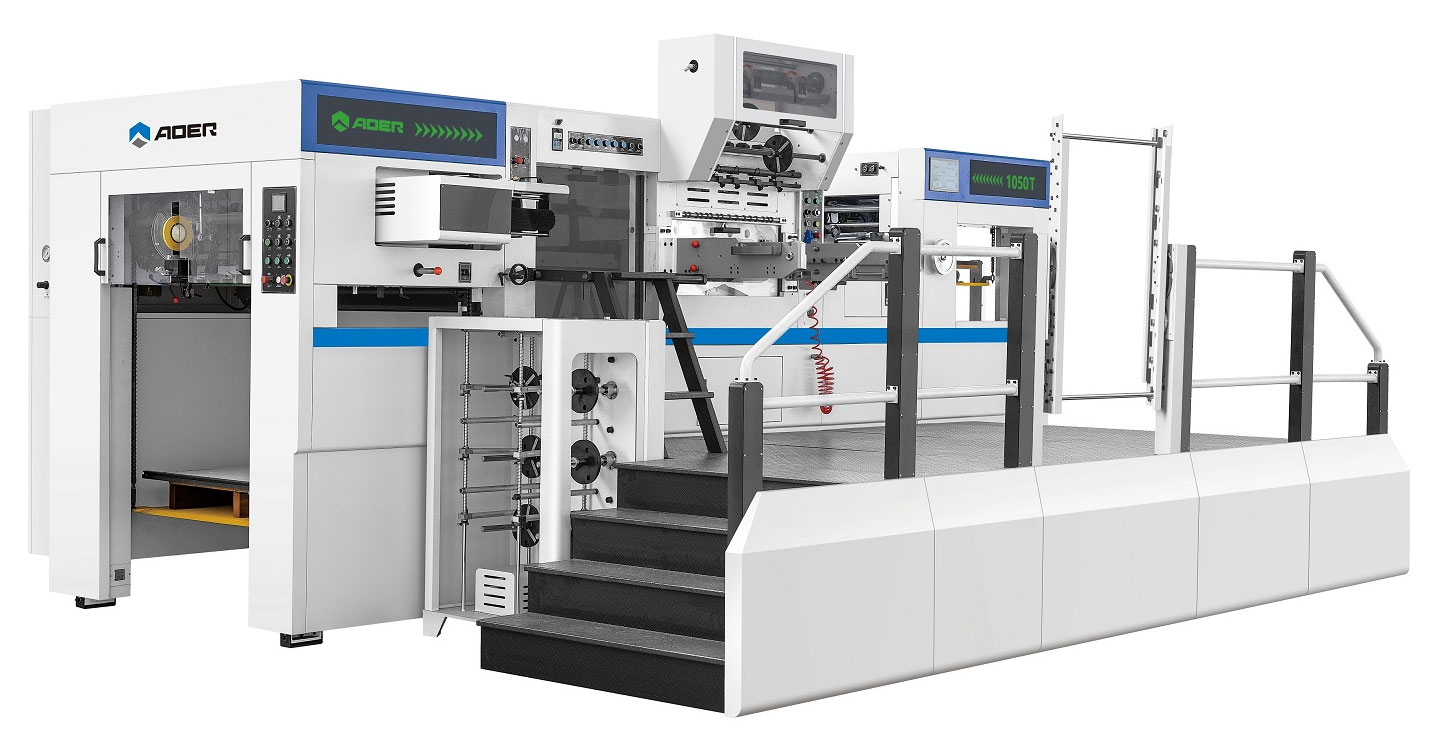

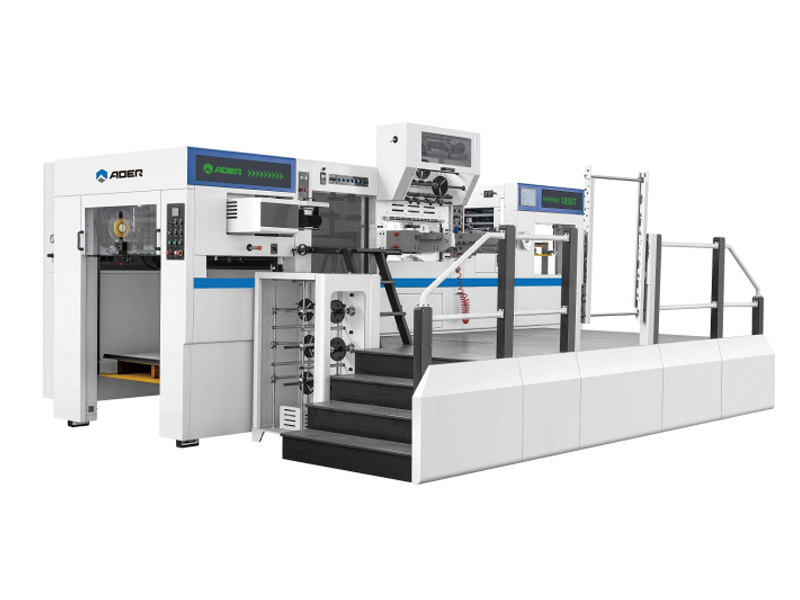

The AEM-1050T Automatic Hot Stamping And Die Cutting Machine is a versatile, high-performance industrial solution designed for hot stamping, die cutting, creasing, and embossing of diverse materials. It seamlessly processes paper, paperboard, corrugated board, and plastic sheets (PVC, PP), catering to packaging, printing, and specialty product manufacturing needs. Equipped with intelligent control systems, premium components, and safety-centric design, this machine balances speed, precision, and reliability—ideal for businesses seeking to boost productivity while maintaining consistent quality.
Adhering to Europe Safety Standard, the machine integrates multiple safety mechanisms to safeguard operators and equipment. An advanced startup alarm system reminds users to leave unsafe areas, while full-process automatic detection pauses operation instantly for malfunctions, paper shortages, or jams via a pneumatic clutch—reducing waste and preventing damage. Core parts feature a lubrication system with oil pressure display and insufficient pressure alarms, ensuring smooth, hazard-free operation.
Built for high throughput, the AEM-1050T boasts a pre-stacked device and non-stop feeding/delivery system, minimizing downtime for material handling. With a max machine speed of 7500 S/H and stamping speed of 6000 S/H, it outperforms standard models, directly boosting your production capacity and revenue. The PLC centralized controlling system automates status monitoring, error recording, and process adjustments, streamlining operations and reducing manual intervention.
The mainframe and base are crafted from high-strength spheroidal graphite iron QT500-7, precision-machined by a numerical control center to withstand heavy pressure during long-term use. Critical components like the crankshaft and worm gear use imported high-grade alloy steel, treated with quenching and high-temperature tempering for extended durability. Selected European, Japanese, and Taiwanese electrical/pneumatic parts enhance stability and reduce breakdowns.
Featuring 12 independent heating zones (50~199℃ adjustable), the machine enables precise temperature control for different stamping needs, saving energy by avoiding overheating. A Taiwan TECO main motor paired with a Panasonic inverter optimizes power consumption while ensuring smooth operation. The server motor controls foil feeding and collection, enhancing accuracy and reducing material waste.
Max. Sheet Size: 1050×750 mm; Min. Sheet Size: 400×350 mm
Die-Cutting Accuracy: ≤±0.1 mm; Stamping Accuracy: ≤±0.125 mm
Material Thickness Range: Paperboard (0.12 mm), Corrugated Paper (<4 mm), Plastic Sheets (0.21 mm)
Total Power: 60 KW; Main Motor Power: 11 KW; Heating Power: 24 KW

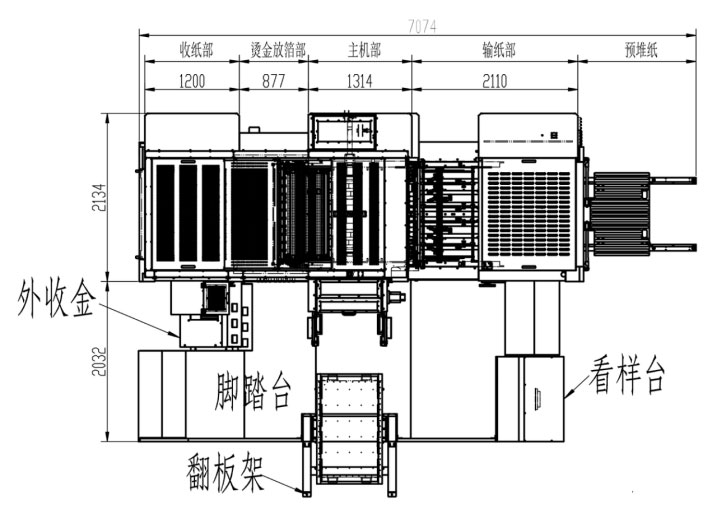

Overall Dimension: 5600(+1430)×2100(+2000)×2800 mm; Weight: 20 T
Standard Units: Feeder, Platen Press, Foil Stamping, Sheet Delivery (all included)
Foil Compatibility: Transverse width 15-720 mm, Longitudinal width 15-1030 mm, Max. Diameter Φ250 mm
Liner Plate Thickness: 7mm or 5+2mm; Inner Chase Size: 1080×745 mm
| Machine Model | AEM-1050T | |
| Machine configuration | Feeder unit | √ |
| Platen press unit | √ | |
| Foil stamping unit | √ | |
| Sheet delivery unit | √ | |
| Max. Sheet Size | 1050×750 mm | |
| Min. Sheet Size | 400×350 mm | |
| Max. Die-Cutting Size | 1040×720 mm | |
| Max. Stamping Size | 1030×720mm | |
| Inner Chase Size | 1080×745 mm | |
| Die Cutting Plate Size | 1050×730 mm | |
| Liner Plate Thickness | 7mm or 5+2mm | |
| Transverse foil width | 15-720mm | |
| Longitudinal foil width | 15-1030mm | |
| Max. Foil Diameter | Φ250mm | |
| Foil Reel Core Inner Diameter | 25mm(1”) or 76mm(3”) | |
| Transverse Feed Shafts | 2 pcs | |
| Longitudinal Feeding Shafts | 3 pcs | |
| Heating Zone | 12 pcs | |
| Temperature Range | 50~199℃ | |
| Feeding Pile Height | 1550mm | |
| Delivery Pile Height | 1500mm | |
| Stock Range | Paperboard:0.1～2 mm | |
| Corrugated paper:＜4 mm | ||
| Plastic sheet: 0.2～1 mm | ||
| Die-Cutting Accuracy | ≤±0.1 mm | |
| Stamping Accuracy | ≤±0.125mm | |
| Max. Pressure | 300 T | |
| Max. Machine Speed | 7500 S/H | |
| Max. Stamping Speed | 6000S/H | |
| Min Gripper Margin | 7mm | |
| Air Supply | 0.6-0.7Mpa, 0.36m³/Min | |
| Power Requirement | 3 phases 380V 50HZ | |
| Main Motor Power | 11 kw | |
| Heating power | 24 kw | |
| Total Power | 60 KW | |
| Total Machine Weight | 20 T | |
| Overall Dimension | 5600(+1430)×2100(+2000)×2800mm | |
| 【L (+ pre-stacking)×W(+ platform)×H】 | ||
PACKING SIZE | AEM-1050T | L*W*H: 5800*2200*2000mm |
Vacuum Packing | Loading Container | |
|
| |
AEM-1050T
We provide free technical training to ensure your team masters full operation and maintenance skills. A 1-year free maintenance service covers prompt troubleshooting and part replacements, minimizing downtime.
Every AEM-1050T undergoes strict quality checks—from material selection to assembly—guaranteeing high stability, low noise, and long service life. Our adherence to international standards ensures compatibility with global production requirements.
We prioritize operability and adaptability, with features like adjustable heating zones, flexible material compatibility, and intuitive PLC controls. Customizable options cater to specific production needs, making the machine a versatile asset for diverse industries.
It handles paper, paperboard (0.12 mm), corrugated board (<4 mm), and plastic sheets (PVC, PP, 0.21 mm).
Stamping accuracy ≤±0.125 mm; Die-cutting accuracy ≤±0.1 mm—ideal for high-precision packaging and printing projects.
We offer a 1-year free warranty covering parts, labor, and on-site maintenance. Long-term technical support is also available.
