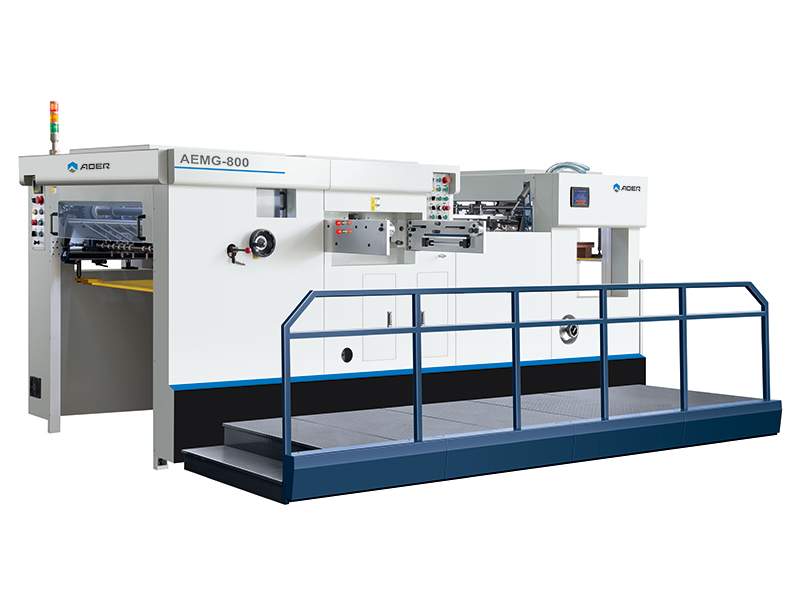

The AEMG-800 Automatic Die Cutting And Creasing Machine is a versatile, high-performance solution for die cutting, creasing, and embossing tasks. Engineered to process paper, paperboard, corrugated board, and plastic sheets (PVC, PP), it combines safety, energy saving, and efficiency to meet the demands of packaging, printing, and industrial production. Equipped with a Taiwan TECO main motor and Panasonic inverter, the machine operates at a maximum speed of 7000 sheets/hour with a precision of ≤±0.1mm, ensuring crisp, accurate cuts for products like cartons, labels, and plastic components. Compliant with European Safety Standards, it prioritizes operator safety while delivering consistent, high-quality results—making it a top choice for businesses seeking reliable die cutting solutions.
The machine is powered by a PLC centralized controlling system that automates workflow, monitors working status in real time, and detects abnormalities (e.g., malfunctions, paper jams, no-paper situations). It instantly triggers the pneumatic clutch to separate and stop operation, reducing paper waste, protecting equipment, and ensuring operator safety.
Designed in line with European Safety Standards, the machine features an advanced startup alarm system that reminds operators to leave unsafe areas. Its robust structure, emergency stop functions, and automatic safety checks create a secure working environment, minimizing accident risks.
The mainframe and base are crafted from high-strength spheroidal graphite iron QT500-7, processed by a numerical control center for precision. Core components like the crankshaft and worm gear are made of imported high-grade alloy steel, treated with quenching and high-temperature tempering for long service life—even under high-pressure operation (max 200T die cutting pressure).
Equipped with an elaborate pre-stacked device and non-stop feeding & delivery systems, the machine reduces stacking time and eliminates production downtime. This design boosts efficiency, increases output, and enhances overall productivity for high-volume operations.
The AEMG-800 handles a wide range of materials: paperboard (0.1-2mm), corrugated paper (<4mm), and plastic sheets (0.2-1mm with optional heating plate). This versatility makes it suitable for diverse applications, from packaging production to plastic component processing.
Sheet Size Range: Max 800×620mm, Min 340×280mm, covering most common product dimensions.
Die Cutting Performance: Max die cutting size 770×600mm, max pressure 200T, precision ≤±0.1mm for sharp, accurate cuts.
Speed & Efficiency: 7000 sheets/hour, ideal for high-volume production.
Power Requirements: 3-phase 380V 50HZ, total power (without heating) 15KW, main motor power 11KW—energy-efficient and cost-effective.
Weight & Dimension: AEMG-800 (8.5T) and AEMG-800Q (9.5T); dimensions range from 4350(+1360)×1900(+1680)×1880mm to 5150(+1360)×1900(+1680)×1880mm.
Standard Components: Feeder section, platen press section, sheet delivery section—ensuring a complete workflow.
Optional Add-Ons: Heating plate (for plastic sheet cutting) and stripping section (for waste removal), customizable to specific production needs.
Pneumatic & Electrical Components: Selected European, Japanese, and Taiwanese parts ensure stability and reduce maintenance frequency.
Machine Model | AEMG-800 Automatic Die Cutting Machine | |
Machine configuration | Feeder section | √ |
Platen press section | √ | |
Heating plate | OPTIONAL | |
Stripping section | OPTIONAL | |
Sheet delivery section | √ | |
Max. Sheet Size | 800×620 mm | |
Min. Sheet Size | 340×280 mm | |
Feeding Pile Height | 1150mm | |
Delivery Pile Height | 1000mm | |
Max. Die-Cutting Size | 770×600 mm | |
Inner Chase Size | 820×628 mm | |
Die Cutting Plate Size | 826×628 mm | |
Cutting Rule Height | 23.8mm | |
Cutting Plate Thickness | 7mm | |
Stock Range | Paperboard:0.1～2 mm | |
Corrugated paper:＜4 mm | ||
Plastic sheet: 0.2～1 mm(heating plate is optional) | ||
Die-Cutting Accuracy | ≤±0.1 mm | |
Max. Die-Cutting Pressure | 200 T | |
Max. Machine Speed | 7000 S/H | |
Min Gripper Margin | 7mm | |
Air Supply | 0.6-0.7Mpa, 0.36m³/Min | |
Power Requirement | 3 phases 380V 50HZ | |
Main Motor Power | 11 kw | |
Heating area power (if for plastic cutting, optional) | 16 KW (8 heating zone, each zone is 2kw) | |
Total Power(without heating) | 15KW | |
Total Machine Weight | AEMG-800 | 8.5 T |
AEMG-800Q | 9.5 T | |

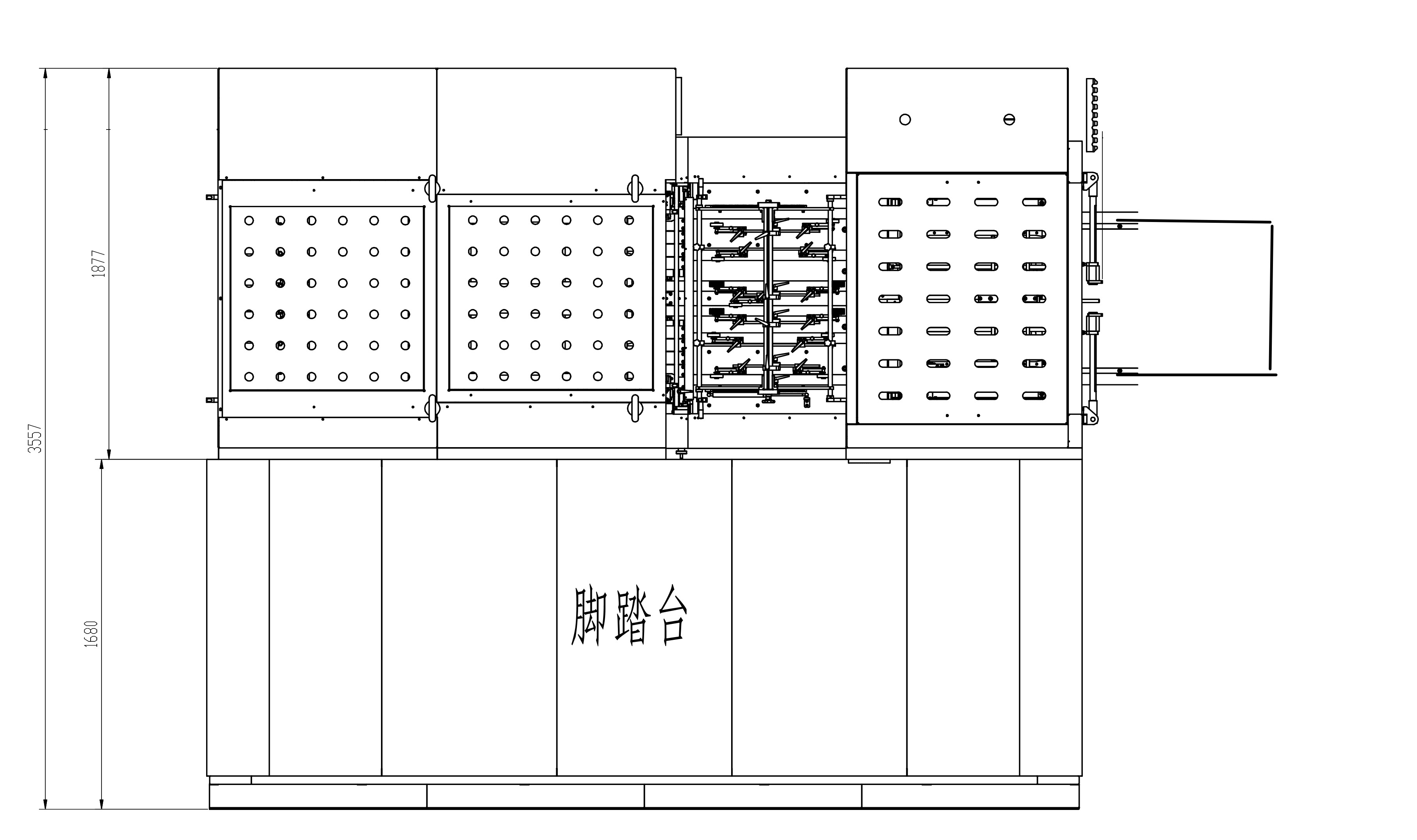

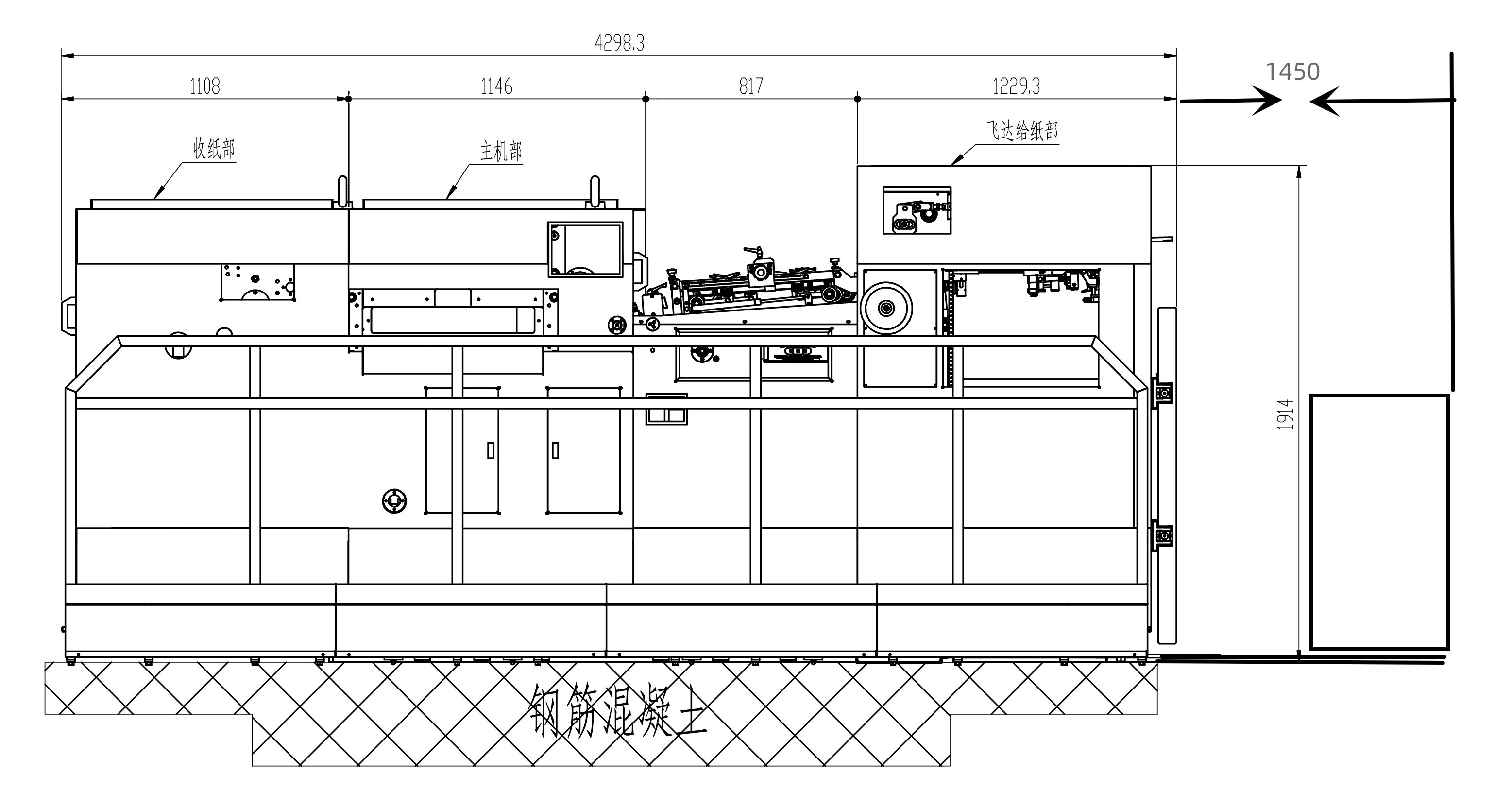

Overall Dimension 【L (+ pre-stacking)×W(+ platform)×H】 | AEMG-800 | 4350(+1360)×1900(+1680)×1880mm |
AEMG-800Q | 5150(+1360)×1900(+1680)×1880mm | |
AEMG-800

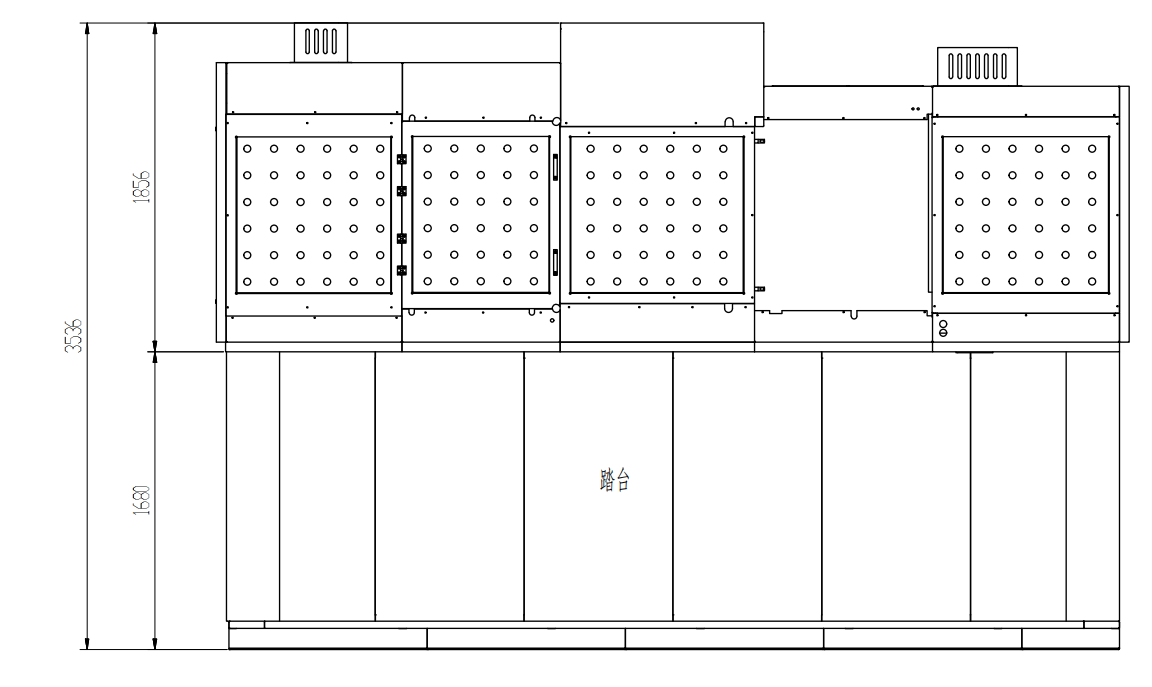

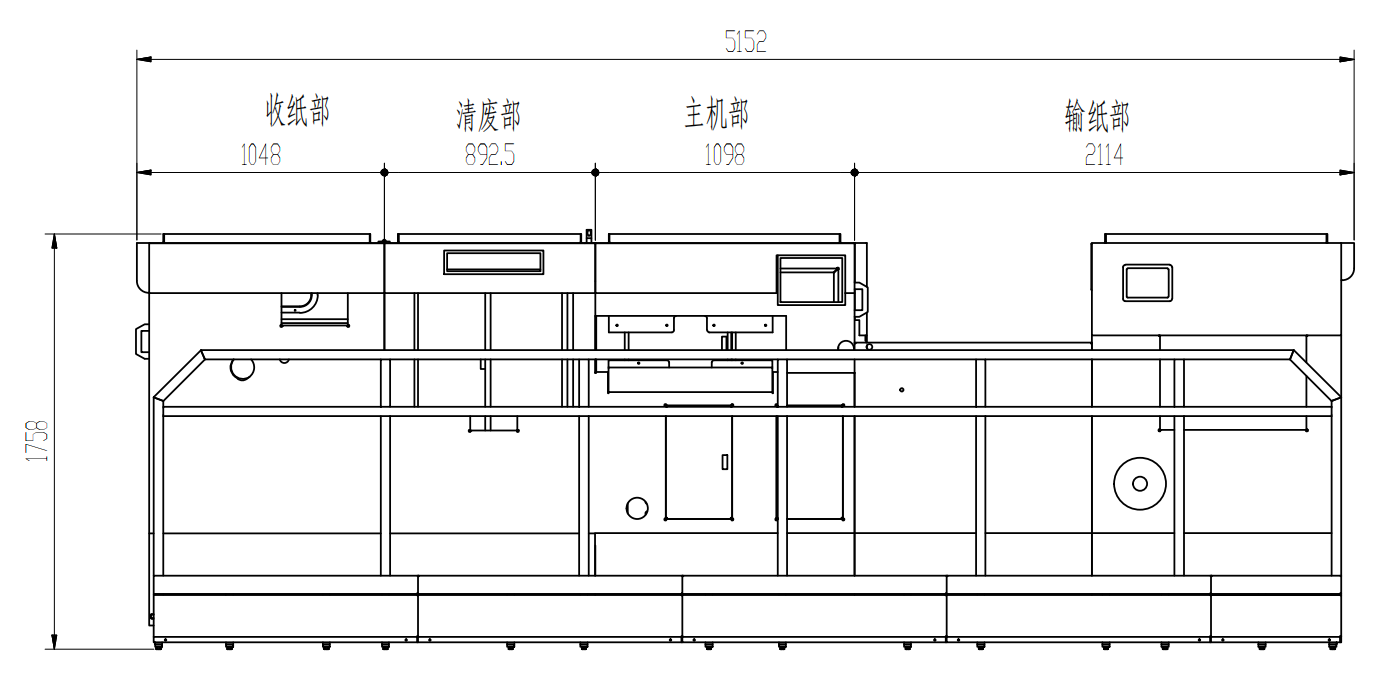

AEMG-800Q
Premium Components & Reliability: Adopting top-tier motors (TECO), inverters (Panasonic), and electrical/pneumatic parts, the machine offers consistent performance and low failure rates.
Safety & Efficiency Focus: Compliance with European Safety Standards and non-stop feeding systems balance safety and productivity, reducing risks and downtime.
Comprehensive Support: We provide free technical training, one-year free maintenance, and prompt after-sales service—ensuring you master the equipment and minimize production disruptions.
Customizable Solutions: Optional heating plates and stripping sections allow you to tailor the machine to your specific material and production requirements.
Durable & Long-Lasting: High-strength construction and imported core components guarantee long service life, delivering excellent return on investment.
It integrates die cutting, creasing, and embossing in one machine, suitable for processing paper, cardboard, corrugated board, and plastic sheets (PVC/PP).
It supports paperboard (0.1-2mm), corrugated paper (<4mm), and plastic sheets (0.2-1mm with the optional heating plate).
The maximum speed is 7000 sheets/hour, with a die cutting accuracy of ≤±0.1mm—ideal for high-volume, high-precision production.
Yes. It is designed in compliance with European Safety Standards, featuring startup alarms, automatic malfunction detection, and emergency stop functions for operator safety.
We offer free technical training, one-year free maintenance, and 24/7 responsive support to address any operational or maintenance issues promptly.
