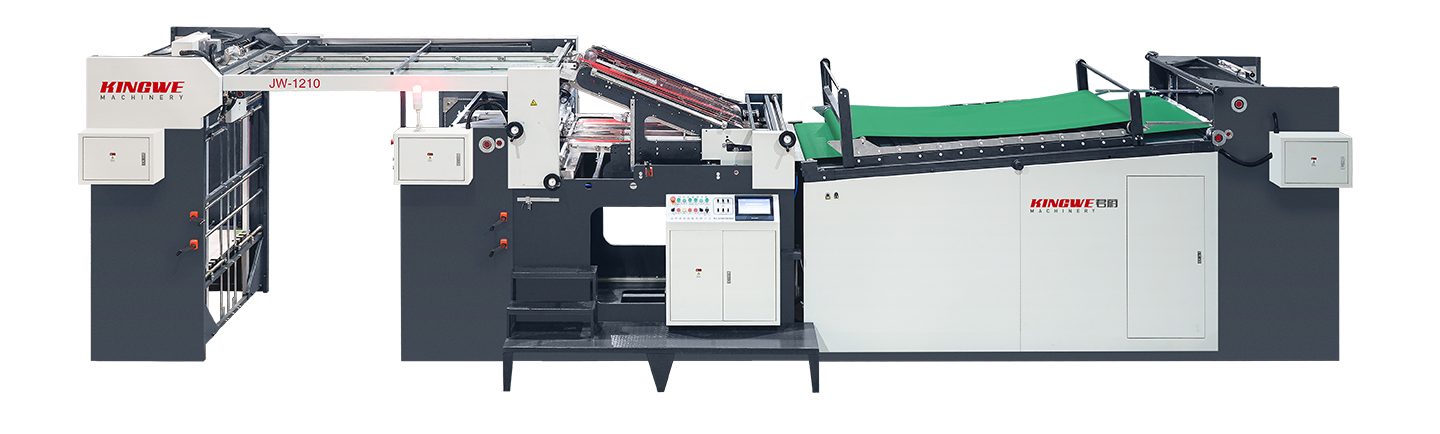

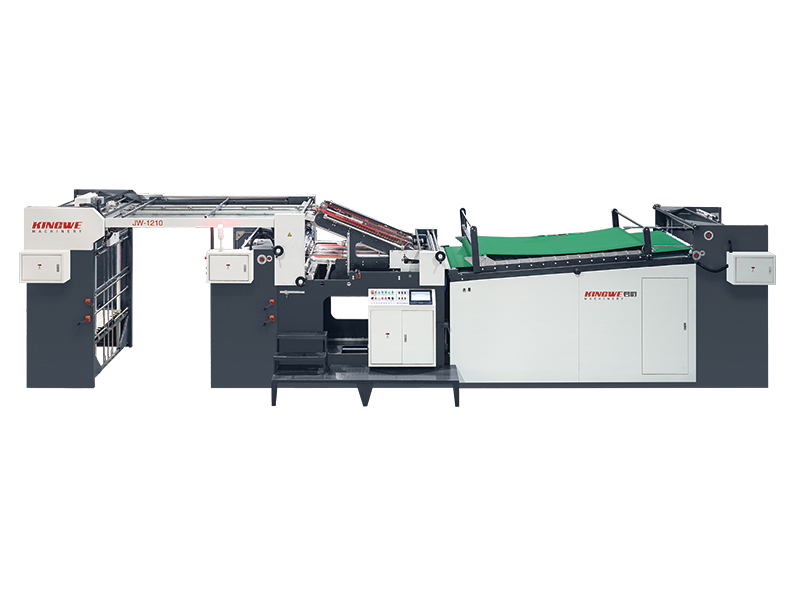

The JW Automatic Cardboard Laminating Machine is a high-end smart laminating device engineered for sheet-to-sheet lamination with outstanding precision, speed, and efficiency. Specially designed for laminating cardboard, coated paper, chipboard and other materials, this machine ensures laminated products remain free from deformation, perfectly catering to diverse lamination needs, including double-side printing paper lamination, thin-thick paper lamination, and 3-ply to 1-ply product lamination. Ideal for packaging of wine boxes, shoe boxes, hang tags, toy boxes, gift boxes, cosmetic boxes and most delicate products, it is a reliable choice for premium packaging manufacturers seeking top-tier lamination solutions.
Model | JW-800 | JW-1207 | JW-1210 |
Max Paper Size | 800*720mm | 1200*720mm | 1200*1000mm |
Min Paper Size | 450*260mm | 450*300mm | 450*300mm |
Thickness of upper paper | 100-800 g/m² | 100-800 g/m² | 100-800 g/m² |
Thickness of bottom paper | 180-2000 g/m² | 180-2200 g/m² | 180-2200 g/m² |
Max Speed | 150 pcs/min | 150 pcs/min | 105 pcs/min |
Accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
Power | 14KW | 14KW | 14KW |
Weight | 6600kg | 7000kg | 7000kg |
Operating Space | 3*12m | 3*12m | 3*12m |
Dimension | 9000*2100*2200mm | 9000*2100*2200mm | 9000*2100*2200mm |
Boasting an alignment accuracy of ±0.5mm, the machine guarantees consistent and precise lamination results. With a maximum speed of up to 150 pcs/min for JW-800 and JW-1207 models, it significantly boosts production efficiency while maintaining superior quality.
It supports a wide range of paper thicknesses: the upper paper can be 100-800 g/m², and the bottom paper ranges from 180-2200 g/m². Making it adaptable to various packaging requirements.
Equipped with a Leading-edge Feeder System. The machine simplifies operation for different production tasks, reducing setup time and enhancing user-friendliness.
All models feature a 14KW power system and sturdy construction, with weights ranging from 6600kg to 7000kg. Ensuring long-term stable operation even in high-intensity production environments.
 |  |

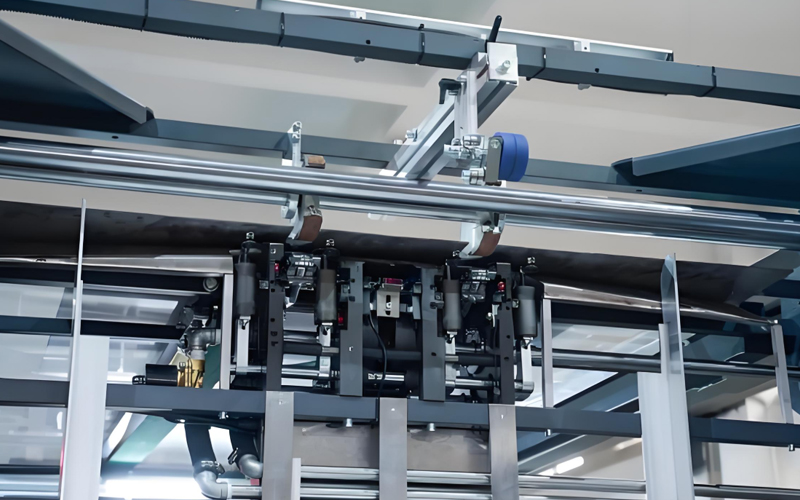

| Coating System | Leading-Edge Feeder System |
 |  |
Top Sheet Dynamic Aligning System | Airing System |
 |  |
Control System | Drive System |
As a seasoned machinery manufacturer, we focus on producing high-quality packaging equipment. Our cardboard laminating machines are crafted with advanced technology to meet the strict demands of the packaging industry.
We understand different clients have unique needs. We offer tailored solutions to match various production scales and product types, from small-batch delicate gift boxes to large-scale industrial packaging.
We provide comprehensive after-sales support, including technical guidance, maintenance services, and spare parts supply. Ensuring your production line runs smoothly without interruption.
 |  |
Tag | Jigsaw |
 |  |  |
Wine Packaging | Electronics Packaging | Paper Hanger |
It is suitable for cardboard, coated paper, chipboard and other paper-based materials, supporting lamination of double-side printing paper, thin-thick paper combinations and 3-ply to 1-ply products.
All models achieve an alignment accuracy of ±0.5mm, ensuring precise lamination for high-end packaging products.
