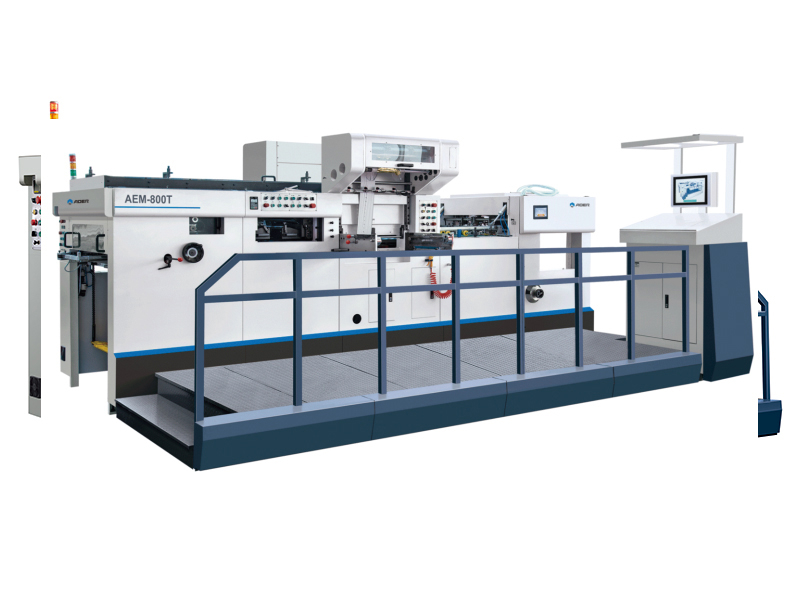

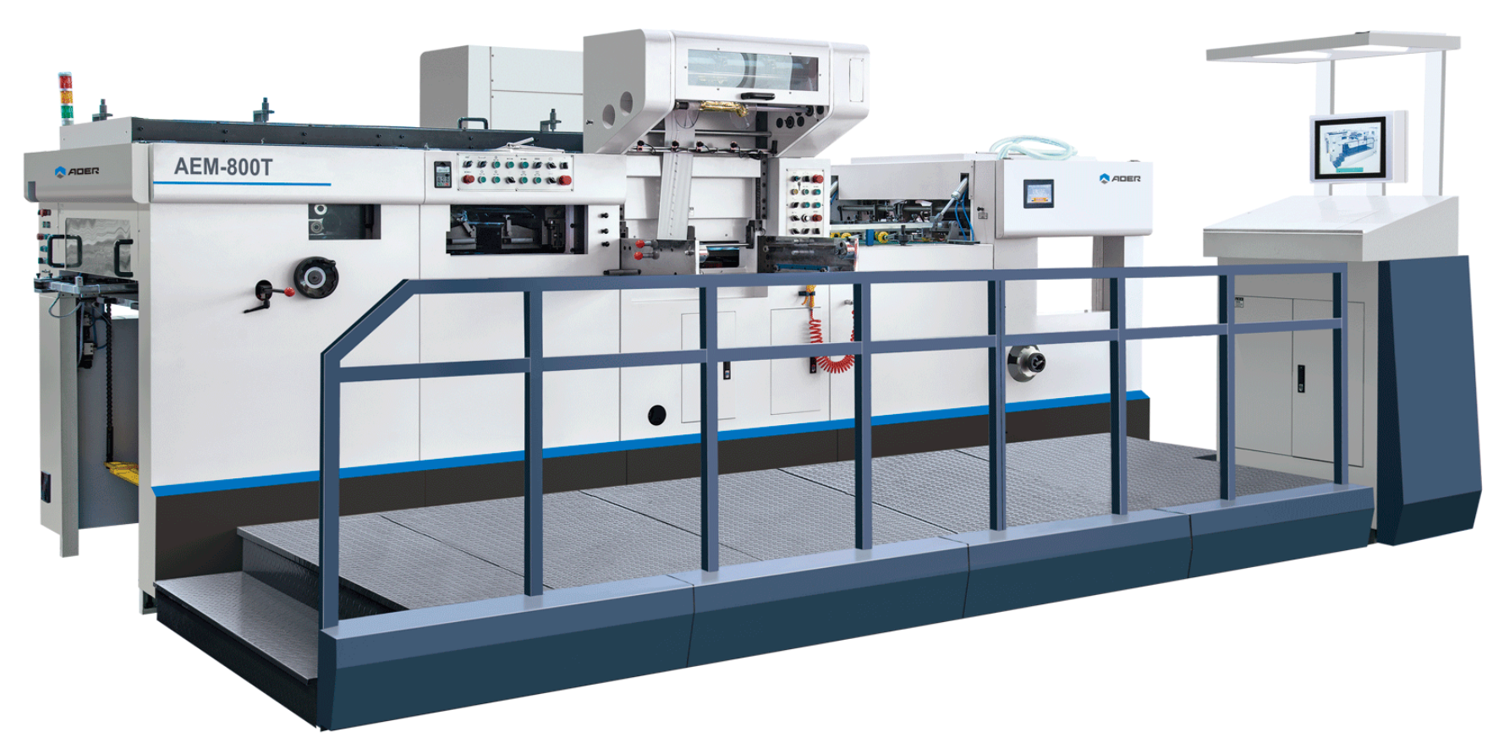

The AEM-800T Automatic Hot Stamping And Die Cutting Machine is a high-performance all-in-one post-press equipment, built for industrial packaging and printing enterprise users. It integrates four core functions: foil hot stamping, die cutting & creasing, and embossing, compatible with paper, paperboard, corrugated board, and PVC/PP plastic sheets. Equipped with a servo motor control system for foil stamping, feeding and collecting, plus an 8-zone independent temperature control system, it delivers stable high-precision processing for mass production, meeting the strict demands of commercial packaging manufacturers.
This high precision die cutting machine achieves ≤±0.1 mm die-cutting accuracy and ≤±0.125 mm stamping accuracy, ensuring consistent finished product quality in long-run production. It minimizes defective rates, cuts material waste, and lowers production costs for industrial manufacturers.
The full servo system precisely manages foil feeding, sheet conveying and delivery, with a max machine speed of 7000 S/H and max stamping speed of 6000 S/H. It drastically improves production throughput, shortens order turnaround time, and helps enterprise users capture more market opportunities.
With 8 independent heating zones, separate temperature setting and 50~199℃ thermostatic control, this servo controlled hot stamping machine adapts to diverse foil and material characteristics, ensuring uniform vivid stamping for complex patterns, eliminating color difference and uneven stamping defects.
Machine Model | AEM-800T | |
Machine configuration | Feeder unit | √ |
Platen press unit | √ | |
Foil stamping unit | √ | |
Sheet delivery unit | √ | |
Max. Sheet Size | 820×620 mm | |
Min. Sheet Size | 340×260 mm | |
Max. Die-Cutting Size | 770×600 mm | |
Max. Stamping Size | 780×600mm | |
Inner Chase Size | 820×628 mm | |
Die Cutting Plate Size | 826×628 mm | |
Liner Plate Thickness | 7mm or 5+2mm | |
Transverse foil width | 15-600mm | |
Longitudinal foil width | 15-780mm | |
Max. Foil Diameter | Φ250mm | |
Foil Reel Core Inner Diameter | 25mm(1”) or 76mm(3”) | |
Transverse Feed Shafts | 2 pcs | |
Longitudinal Feeding Shafts | 2 pcs | |
Heating Zone | 8 pcs | |
Temperature Range | 50~199℃ | |
Feeding Pile Height | 1150mm | |
Delivery Pile Height | 1000mm | |
Stock Range | Paperboard:0.1～2 mm | |
Corrugated paper:＜4 mm | ||
Plastic sheet: 0.2～1 mm | ||
Die-Cutting Accuracy | ≤±0.1 mm | |
Stamping Accuracy | ≤±0.125mm | |
Max. Pressure | 200 T | |
Max. Machine Speed | 7000 S/H | |
Max. Stamping Speed | 6000S/H | |
Min Gripper Margin | 7mm | |
Air Supply | 0.6-0.7Mpa, 0.36m³/Min | |
Power Requirement | 3 phases 380V 50HZ | |
Main Motor Power | 11 kw | |
Heating power | 16 kw | |
Total Power | 35 KW | |
Total Machine Weight | 10.5 T | |

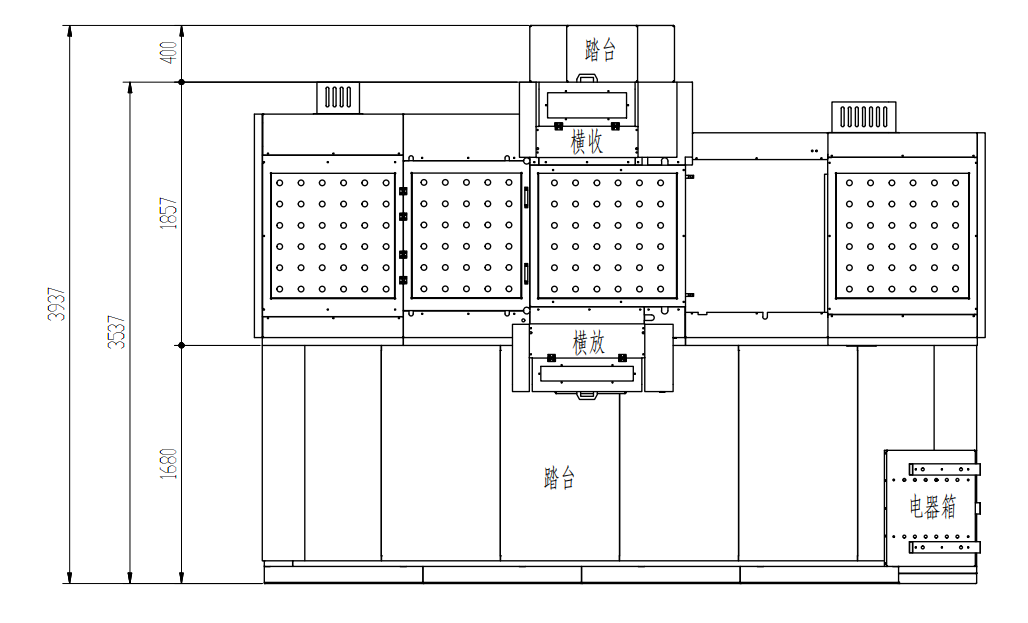

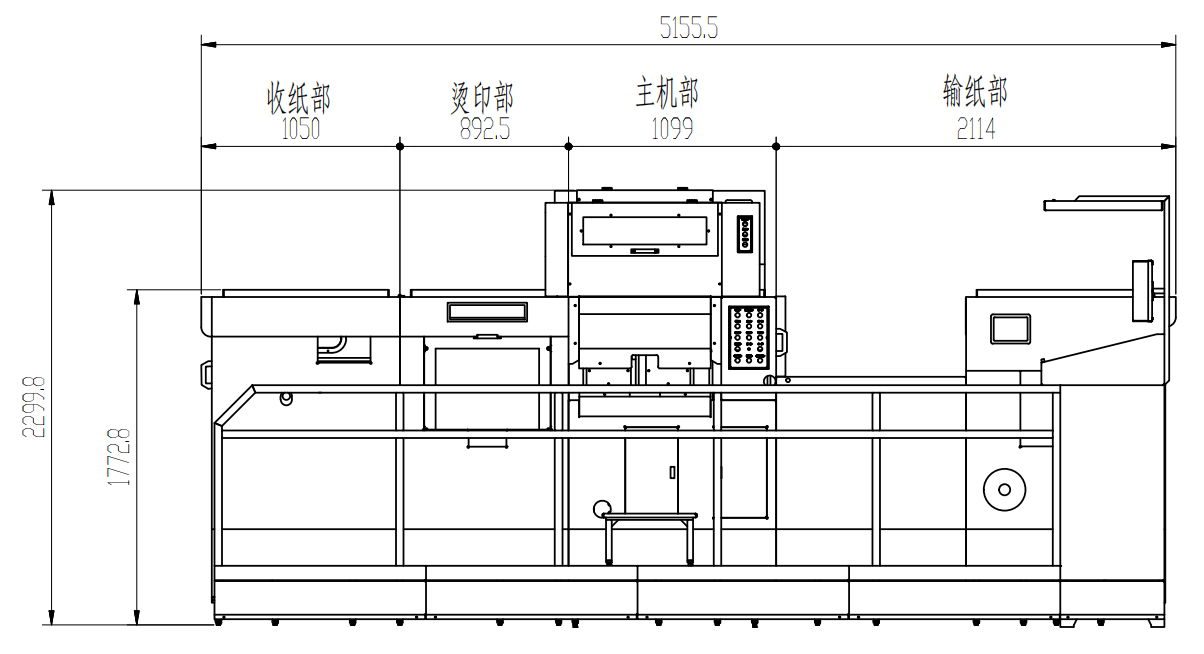

Overall Dimension | 5150(+1360)×2200(+1300)×2260mm | |
【L (+ pre-stacking)×W(+ platform)×H】 | ||
This paperboard embossing machine is widely used in high-end gift box manufacturing, food & beverage packaging, pharmaceutical packaging, cosmetic packaging, tobacco packaging, greeting card and label production. It is ideal for packaging production enterprises, commercial printing factories, and paper product processing plants requiring high-volume, high-precision hot stamping and die cutting production.
We provide tailored customization for enterprise users, including adjustable heating zone configuration, extended foil feeding shafts, and material-specific processing optimization to match unique production needs. Our full support covers professional on-site installation & commissioning, standardized operator training, global after-sales maintenance, and long-term original spare parts supply, ensuring uninterrupted production.
YAOJIA is a professional post-press equipment manufacturer with years of industry experience, focusing on reliable, high-efficiency production solutions for industrial enterprise users. We implement strict quality control in every production link, with a global service network delivering fast responsive support worldwide. Our equipment helps you reduce production costs, improve product quality, and gain a sustainable competitive edge in the market.
 |  |
The maximum pressure reaches 200 T, suitable for thick materials and high-strength embossing processing.
Yes, we offer professional on-site installation, commissioning and training services for clients worldwide.
The minimum gripper margin is 7 mm, which maximizes the usable area of the sheet and reduces material waste.
Contact our technical team now to get a free custom solution for your production needs, including exclusive equipment configuration advice, detailed quotation, and on-site demonstration service. We are committed to providing you with the most suitable hot stamping and die cutting production solution to boost your business growth.
