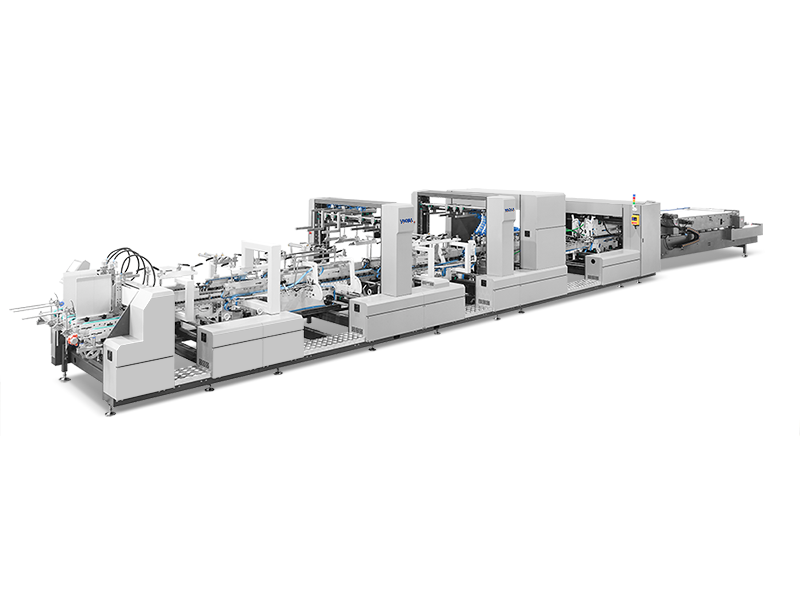

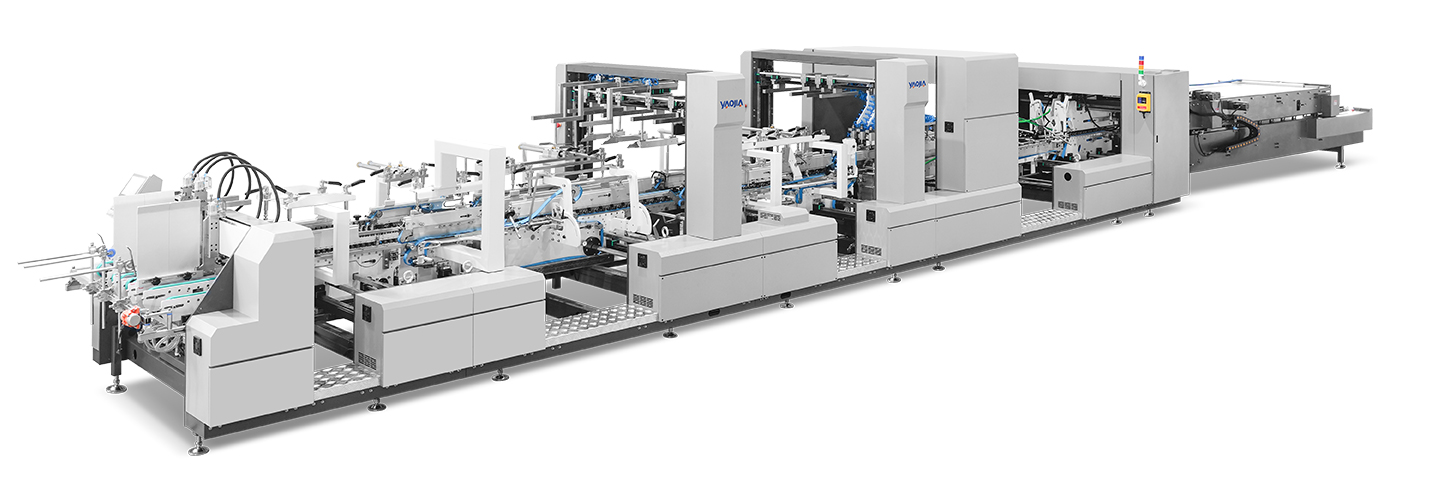

Full Servo Control Automated Set-Up Folder Gluer Machine YJZ-700F/900F/1100F

Product Overview

The Full Servo Control Automated Set-Up Folder Gluer Machine YJZ-F Series (700F/900F/1100F) is YAOJIA’s next-generation intelligent packaging solution, engineered for packaging manufacturers with frequent product changeover and multi-box type production needs. This intelligent auto set-up folder gluer features a full-servo independent drive system, automated job set-up with job memory function, and 3 sets of HMI operation screens, delivering unmatched production flexibility and efficiency. It is compatible with 200~800gsm cardboard and E/F-flute corrugated board, with a maximum speed of up to 400 m/min, ideal for high-quality color box production.

Core Advantages & Business Benefits

Automated Set-Up with Job Memory for Ultra-Fast Changeover

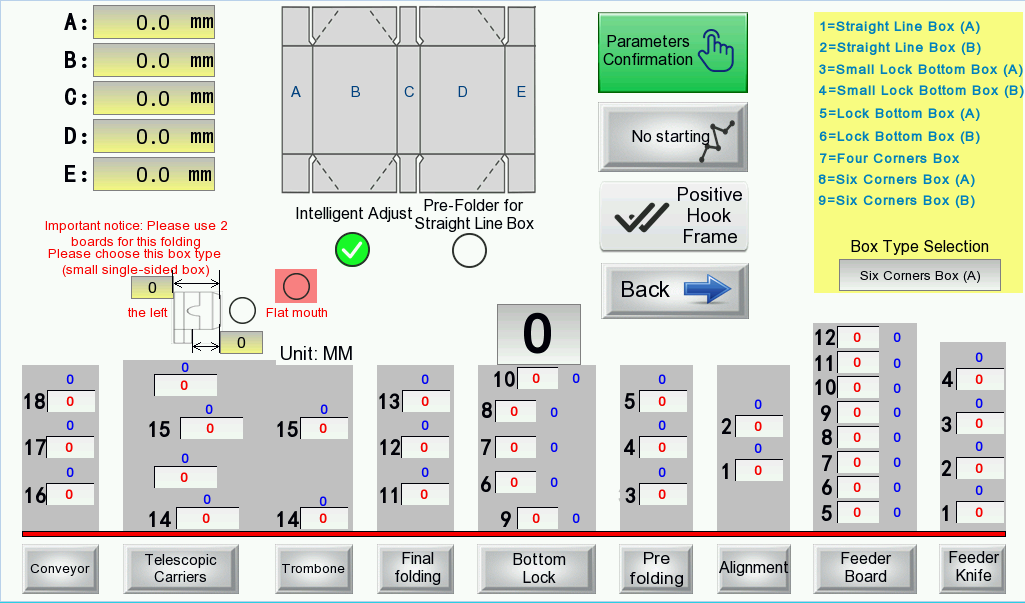

The biggest highlight of this full servo carton folder gluer is its fully automated job set-up and job memory function, which stores parameters for previous orders and enables one-click recall for repeat production. All functional tools are lifted and positioned automatically without dismantling, drastically reducing changeover time between box types from hours to minutes. This is especially valuable for multi-batch, small-volume production, helping you cut labor costs, reduce human error, and improve order fulfillment efficiency.

Full-Servo Independent Drive for Precision & Stability

Every functional unit, from the feeder to the final folding unit, is driven by an independent servo motor, ensuring precise control of every production step. The independent servo-driven feeder delivers stable paper feeding and accurate blank spacing, even for complex box structures. The intelligent pre-fold unit supports 180-degree pre-folding, breaking the fiber of rigid cardboard to ensure consistent forming quality, reducing defective rates and material waste for your business.

Versatile 4&6 Corner System for Diverse Box Production

Equipped with an intelligent 4&6 corner device with automatic height-adjustable hook shafts, this 4&6 corner color box gluing machine eliminates the need to remove back hooks when the back folding system is not in use, further simplifying changeover. It supports the production of straight-line boxes, crash-lock bottom boxes, 4&6 corner boxes, hexagonal boxes and other complex box types, allowing you to adapt to diverse customer demands from different industries.

Technical Specifications

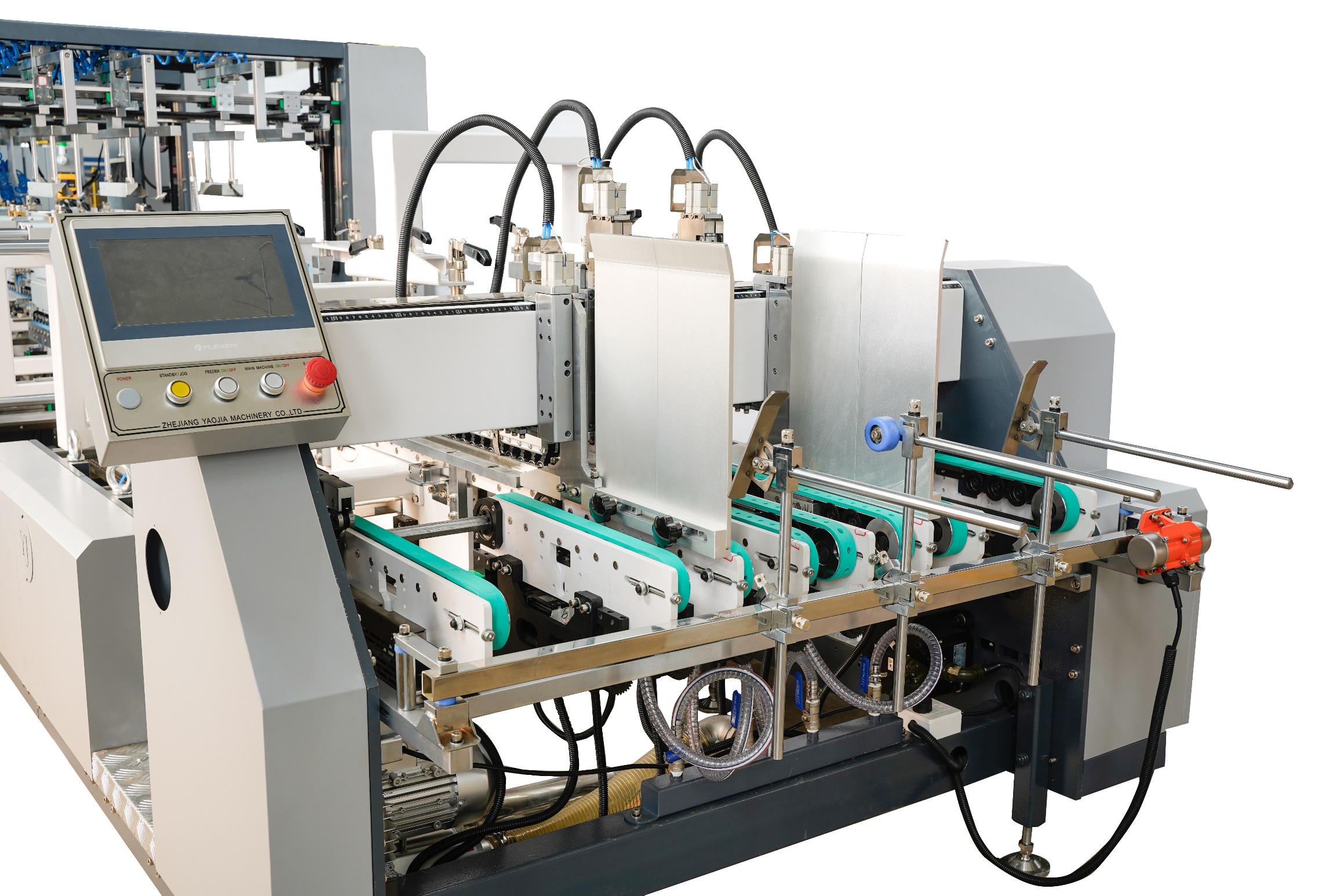

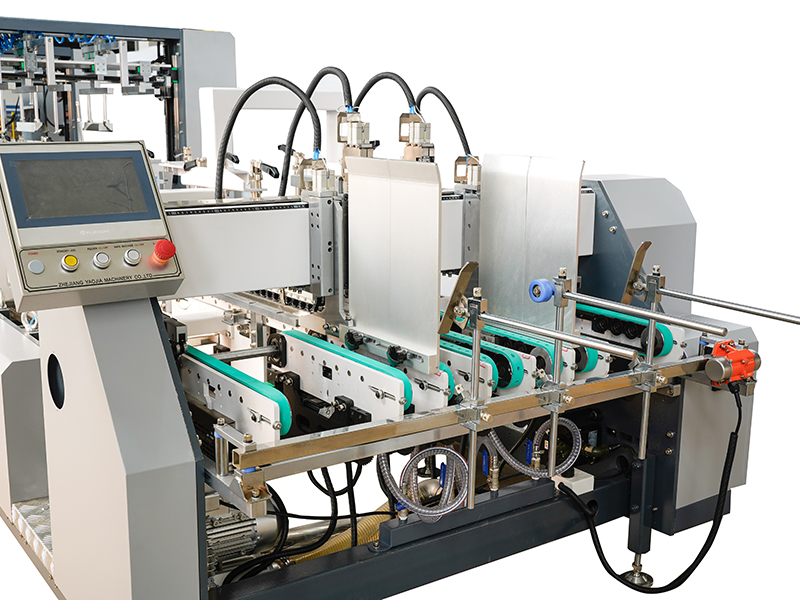

	Feeder • Independent servo motor driven belts for stable feeding and accurate blank spacing. • The positions of 2 pile side guides, 2 feeding gates, and rear support are driven by servo motors. • Vibrator equipped as standard. • HIM touch screen for parameter setting. • Equipped with feeder suction device. • resulting in the reliable intake of almost kinds of blanks. • Pneumatic lifter of feeding gates and side guides for easy operation.

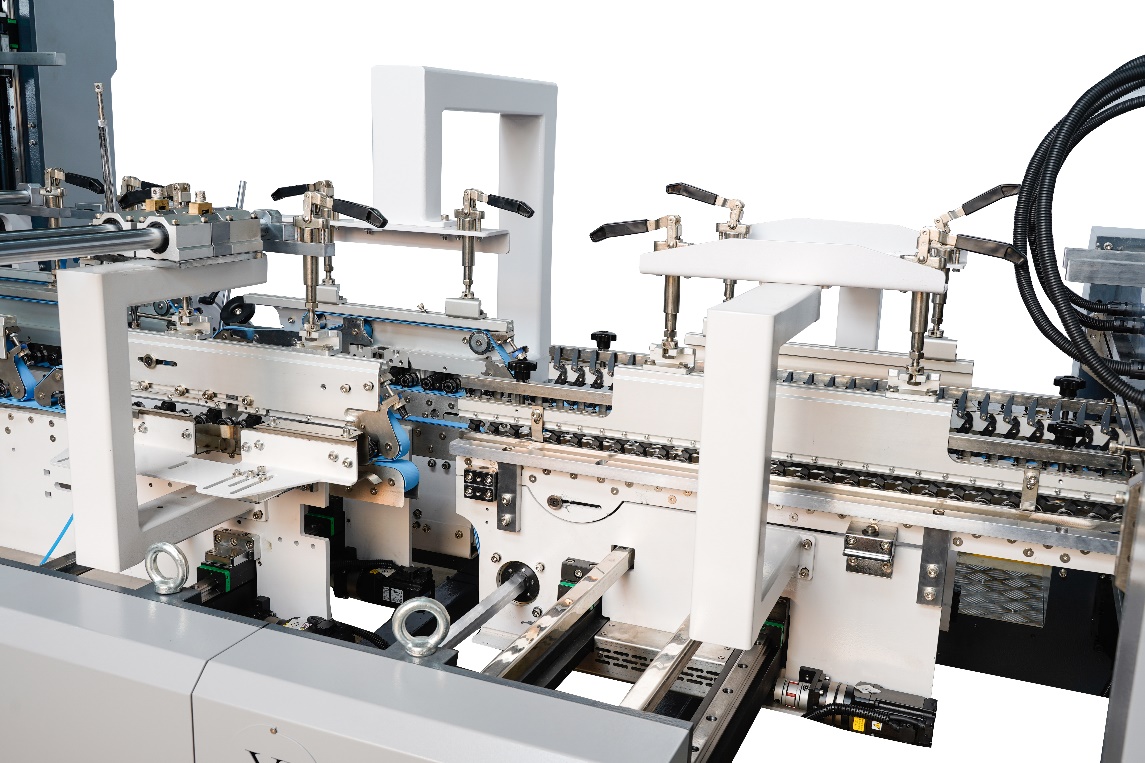

Alignment Unit • Each carrier driven by servo motor independently • Can be easily converted to left or right side for registration.
	Pre Fold Unit • 1st and 3rd Crease Pre Folding up to 180 and 135 degrees helping to break the fiber of rigged board • 3 Bottom Carriers • 3 Top Carriers • Each Carriers driven by servo motor independently

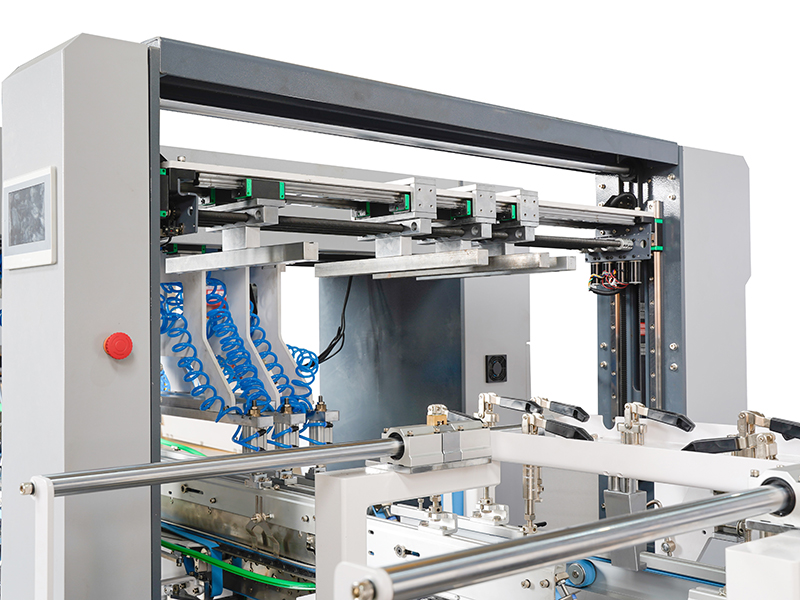

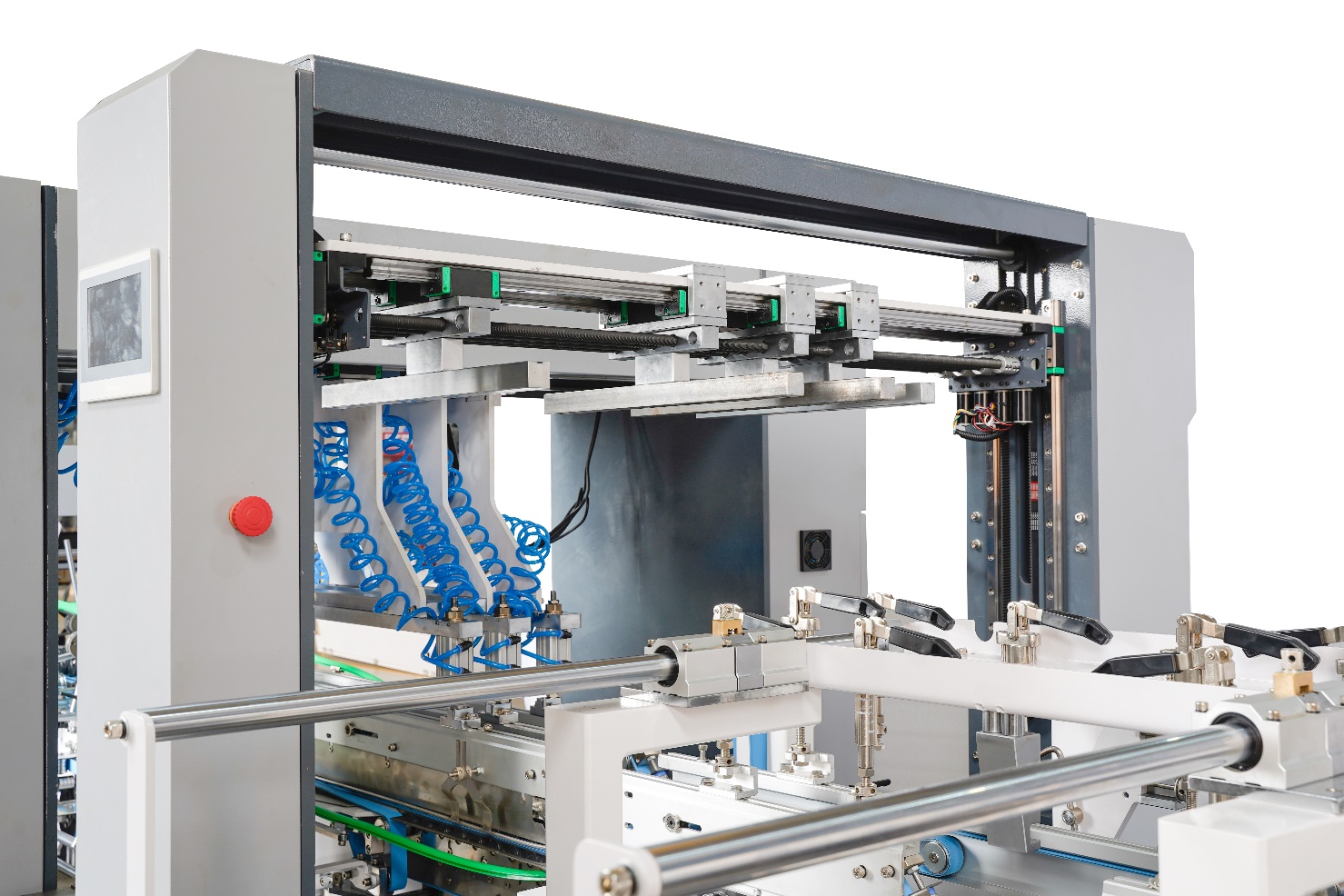

Crash Lock Unit • 3 Bottom Transport Carriers • 3 Top Transport Carriers • Each Carriers driven by servo motor independently • Lock accessories are driven by servo motors with automatic up and down positioning, no need to remove without usage. • Modular design of lock accessories with gluing guns for easy change.

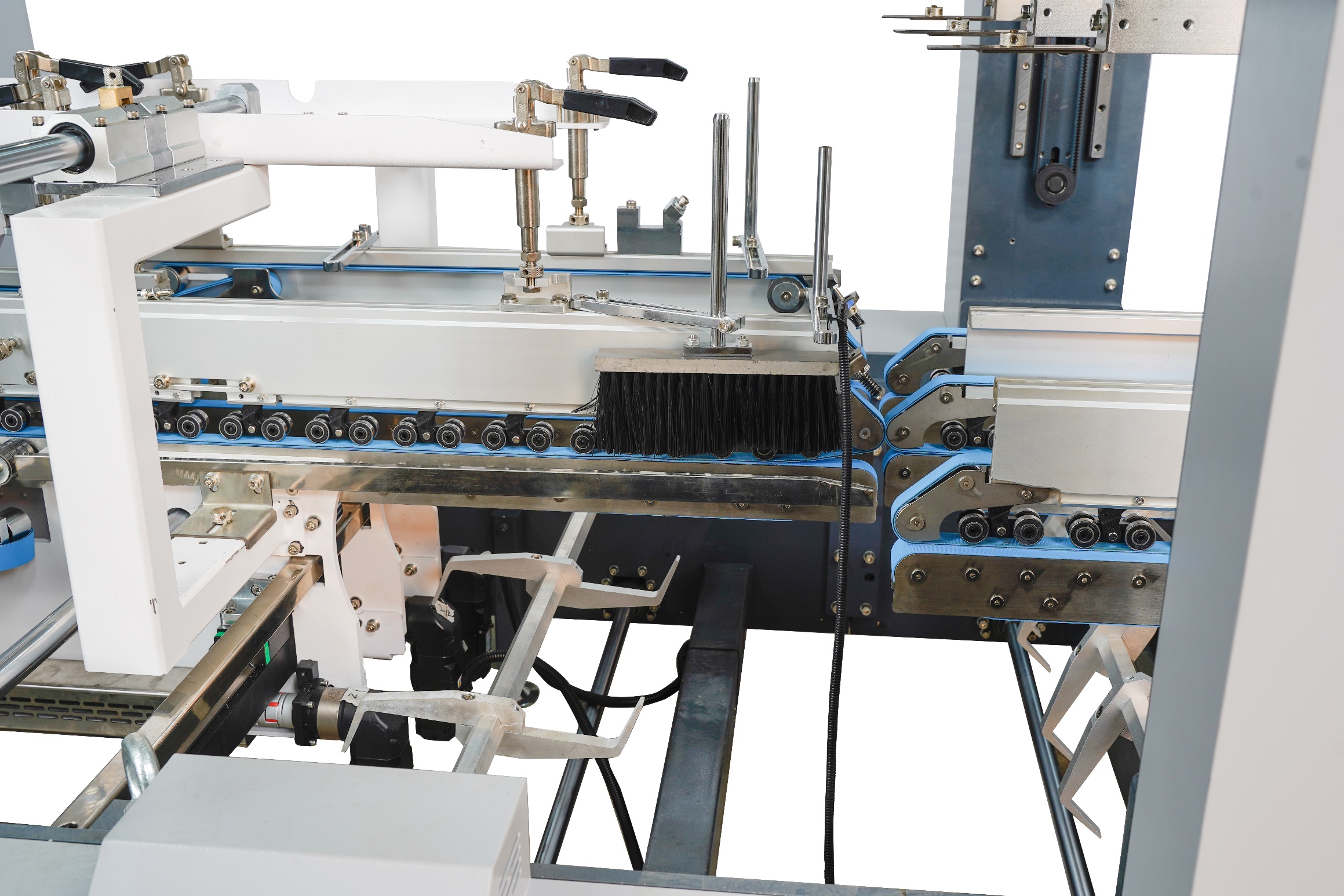

	4&6 Corner Device • The two hook shafts with automatic height adjustment individually, and no need to remove hooks when the back folding system is not in use. • HIM touch screen for 4&6 corner parameter setting • 4&6 corner back shoes accessories are driven by servo motors with automatic up and down positioning, no need to remove without usage.
Final Folding Unit • Folding 2 and 4 crease • 2 Carriers or 3 Carriers depend on customer request • Equipped with 2 glue tanks 1 Left 1 Right with 4 M/m disc • Adjustable speed control of belts left and right • Each Carriers driven by servo motor independently

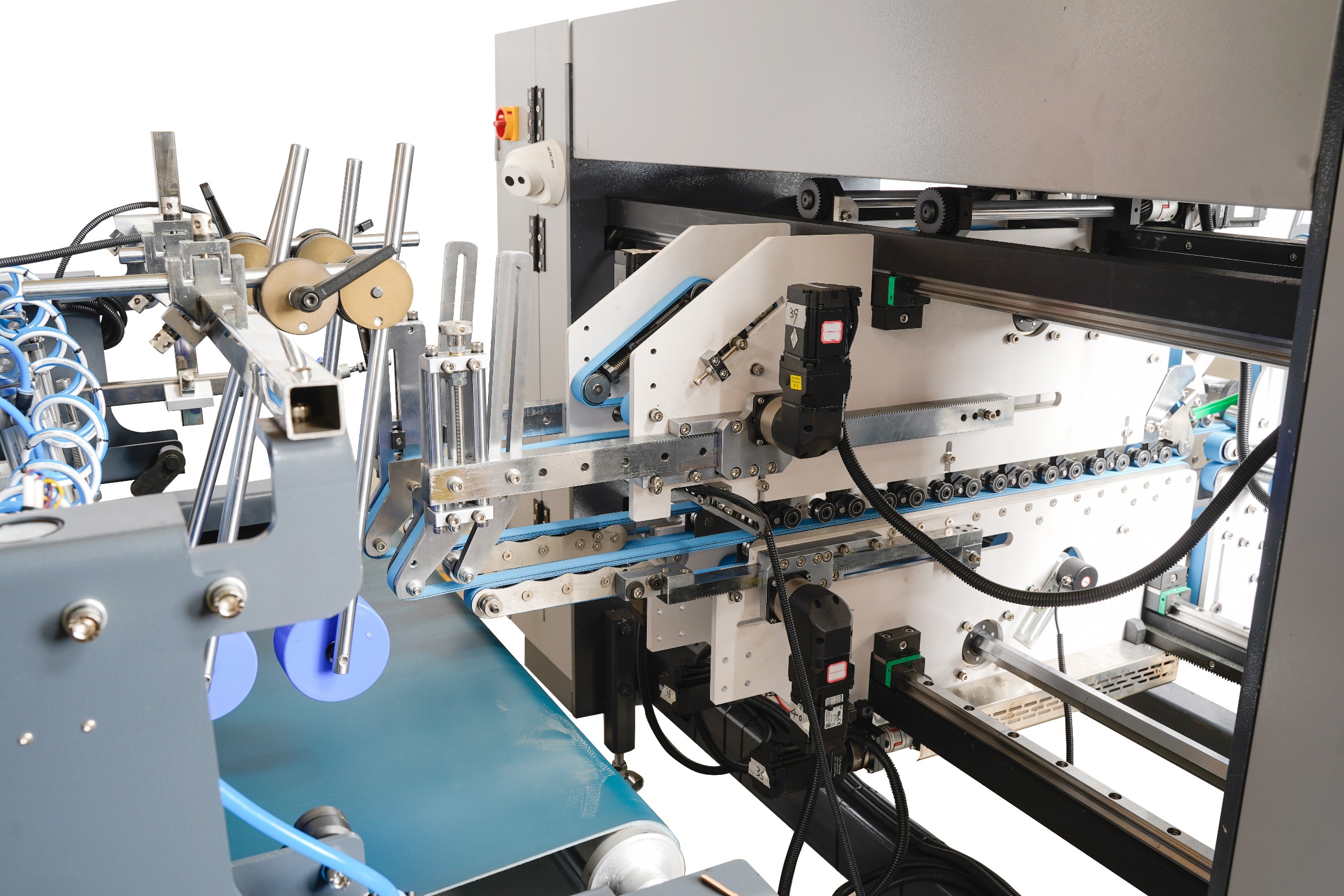

	Trombone Unit • Main control panel with touch screen. • Each carrier driven by servo motors. • Telescopic upper and lower carriers driven by servo motors independently, it can be adjusted automatically to meet different length cartons • Kicker counter and spraying counter are equipped as standard. • Camera for live status.

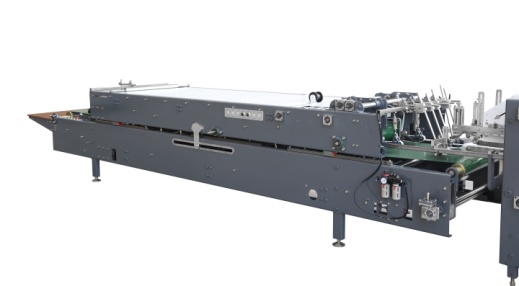

Pressing Unit • Motorized forward and backward moving for the upper section • Pneumatic pressing (Adjustable via Pneumatic Regulator valves) • Squaring device

Industrial Applications & Suitable Scenarios

This intelligent color box folder gluer is perfect for color box packaging manufacturers, printing and packaging enterprises, and brand owners in the cosmetics, electronics, daily chemical, pharmaceutical and gift industries. It produces high-quality folding cartons for cosmetic packaging, electronic product boxes, daily chemical packaging, medicine boxes, gift boxes and other premium color packaging, suitable for both high-volume bulk production and small-batch customized high-end packaging production.

Customization & Cooperative Support

YAOJIA provides full customization services for the YJZ-F series, including custom machine width, functional unit configuration and production line integration solutions to match your specific production needs. Our comprehensive support includes pre-sales technical consultation, remote parameter debugging, on-site installation and commissioning, operator training and long-term after-sales maintenance, ensuring optimal equipment performance for long-term production.

Why Choose YAOJIA

YAOJIA is a professional R&D and manufacturer of intelligent folding carton machinery, with years of experience serving printing and packaging enterprises worldwide. We focus on technological innovation in intelligent packaging equipment, with strict quality control for every machine we produce. Our global service network provides timely technical support, helping commercial clients improve production intelligence, reduce operational costs, and meet the evolving demands of the premium packaging market.

FAQ

What is the core advantage of the YJZ-F series?

Its core advantage is the fully automated job set-up and job memory function, which drastically reduces changeover time and labor costs, ideal for multi-batch, small-volume color box production.

What materials can this machine process?

It is compatible with 200~800 gsm solid cardboard, as well as E-flute and F-flute corrugated board, meeting the needs of most color box packaging production.

What box types can the YJZ-F series produce?

It supports straight-line, crash-lock bottom, 4&6 corner and hexagonal boxes, covering diverse color packaging needs for multiple industries.
