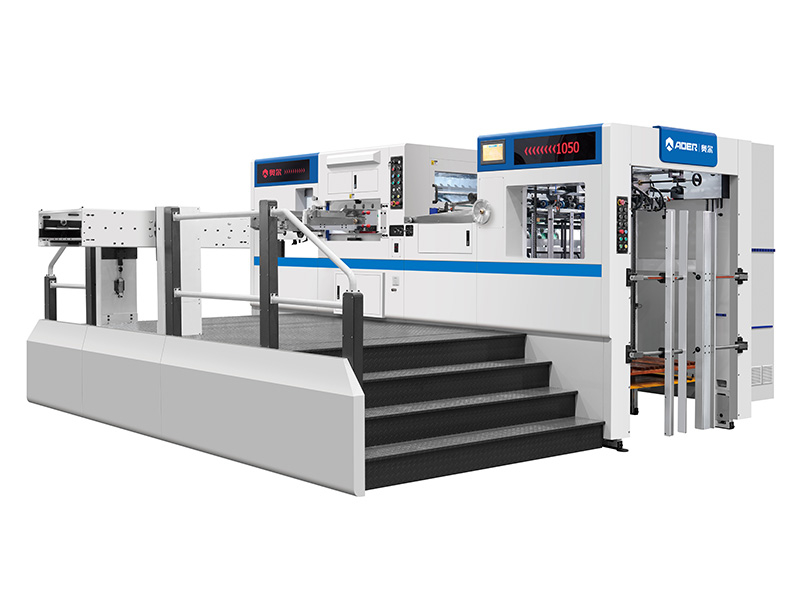

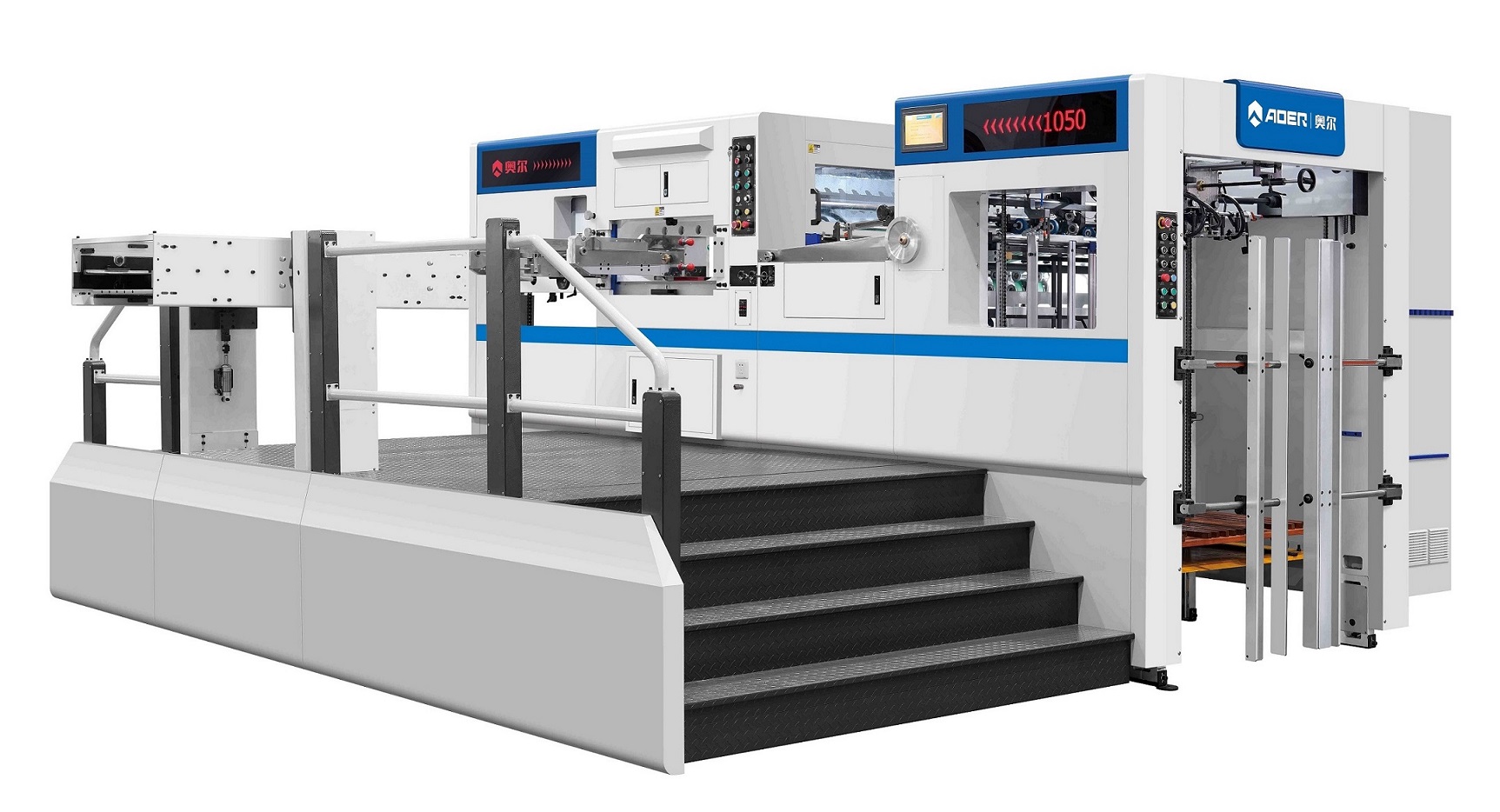

The AEM-1050 Automatic Die Cutting Machine is a professional packaging processing solution designed for efficient die cutting, creasing, and embossing of various materials. Ideal for packaging manufacturers, printing houses, and industrial production lines, this machine handles paper, paperboard, corrugated board, and plastic sheets (PVC, PP) with exceptional accuracy. Boasting a maximum speed of 7500 sheets per hour and die-cutting precision of ≤±0.1 mm, it balances high productivity with consistent quality, meeting the demands of large-scale production while adhering to European Safety Standards. Whether creating packaging boxes, labels, or custom-shaped products, the AEM-1050 delivers reliable performance that elevates your production line efficiency.
Equipped with a Taiwan TECO main motor and Panasonic inverter, the machine optimizes energy consumption without compromising power. The PLC centralized controlling system automatically monitors working status, detects malfunctions, and records operational data, while an advanced startup alarm reminds operators to clear unsafe areas. In case of paper jams, no-paper situations, or faults, the pneumatic clutch separates instantly, reducing material waste and protecting both staff and equipment.
With a maximum die cutting speed of 7500 S/H, the AEM-1050 outperforms standard models, significantly shortening production cycles. Its precise die-cutting accuracy of ≤±0.1 mm ensures uniform results even for intricate designs, making it perfect for high-precision packaging projects. The machine’s minimum gripper margin of 7 mm also maximizes material utilization, cutting down on costs.
The mainframe and base are crafted from high-strength spheroidal graphite iron QT500-7, processed by a numerical control center to withstand 200T pressure during long-term operation. Core components like the crankshaft and worm gear use imported high-grade alloy steel, treated with quenching and high-temperature tempering for extended service life. This robust build guarantees stability and reduces downtime due to wear and tear.
The pre-packed device and non-stop paper feeding & delivery system minimize stacking time, boosting overall productivity. A dedicated lubrication system with oil pressure display and insufficient pressure alarms ensures core parts remain protected, while optional heating plates expand compatibility to plastic sheet processing.
Youtube link:
Max. Sheet Size: 1050×750 mm; Min. Sheet Size: 400×370 mm
Max. Die-Cutting Size: 1040×730 mm; Inner Chase Size: 1144×760 mm
Stock Range: Paperboard (0.1–2 mm), Corrugated paper (<4 mm), Plastic sheets (0.2–1 mm with optional heating)
Total Power (without heating): 17.8 KW; Main Motor Power: 11 KW
Machine Weight: 16 T (AEM-1050) / 17 T (AEM-1050Q)
Overall Dimension: 4700(+1430)×2100(+1900)×2400 mm (AEM-1050)
Centralized PLC Control: Automates status checks, fault detection, and data recording for seamless operation.
Pneumatic Clutch System: Instantly stops machine during issues to prevent damage and waste.
Non-Stop Feeding/Delivery: Reduces downtime between batches, enhancing production efficiency.
Customizable Configurations: Optional heating plate and stripping section adapt to diverse production needs.
Machine Model | AEM-1050 Automatic Die Cutting Machine | |
Machine configuration | Feeder section | √ |
Platen press section | √ | |
Heating plate | OPTIONAL | |
Stripping section | OPTIONAL | |
Sheet delivery section | √ | |
Max. Sheet Size | 1050×750 mm | |
Min. Sheet Size | 400×370 mm | |
Max. Die-Cutting Size | 1040×730 mm | |
Inner Chase Size | 1144×760mm | |
Die Cutting Plate Size | 1080×738mm | |
Feeding Pile Height | 1550mm | |
Delivery Pile Height | 1400mm | |
Cutting Rule Height | 23.8mm | |
Cutting Plate Thickness | 5mm (3+2 or 4+1 is optional) | |
Stock Range | Paperboard:0.1～2 mm | |
Corrugated paper:＜4 mm | ||
Plastic sheet: 0.2～1 mm (heating plate is optional) | ||
Die-Cutting Accuracy | ≤±0.1 mm | |
Max. Die-Cutting Pressure | 320 T | |
Max. Machine Speed | 7500 S/H | |
Min Gripper Margin | 7mm | |
Air Supply | 0.6-0.7Mpa, 0.36m³/Min | |
Power Requirement | 3 phases 380V 50HZ | |
Main Motor Power | 11 kw | |
Heating area power(if for plastic cutting, optional) | 24 KW (12 heating zone, each zone is 2kw) | |
Total Power(without heating) | 17.8KW | |
Total Machine Weight | AEM-1050 | 16 T |
AEM-1050Q | 17 T | |

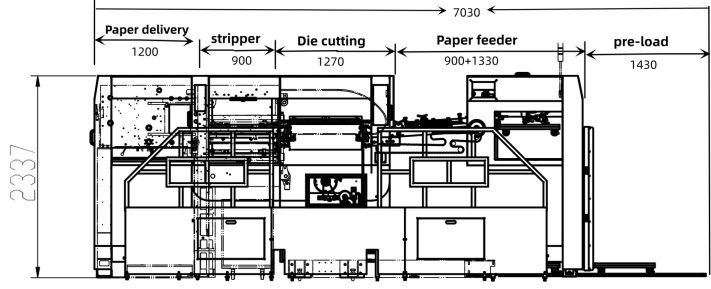

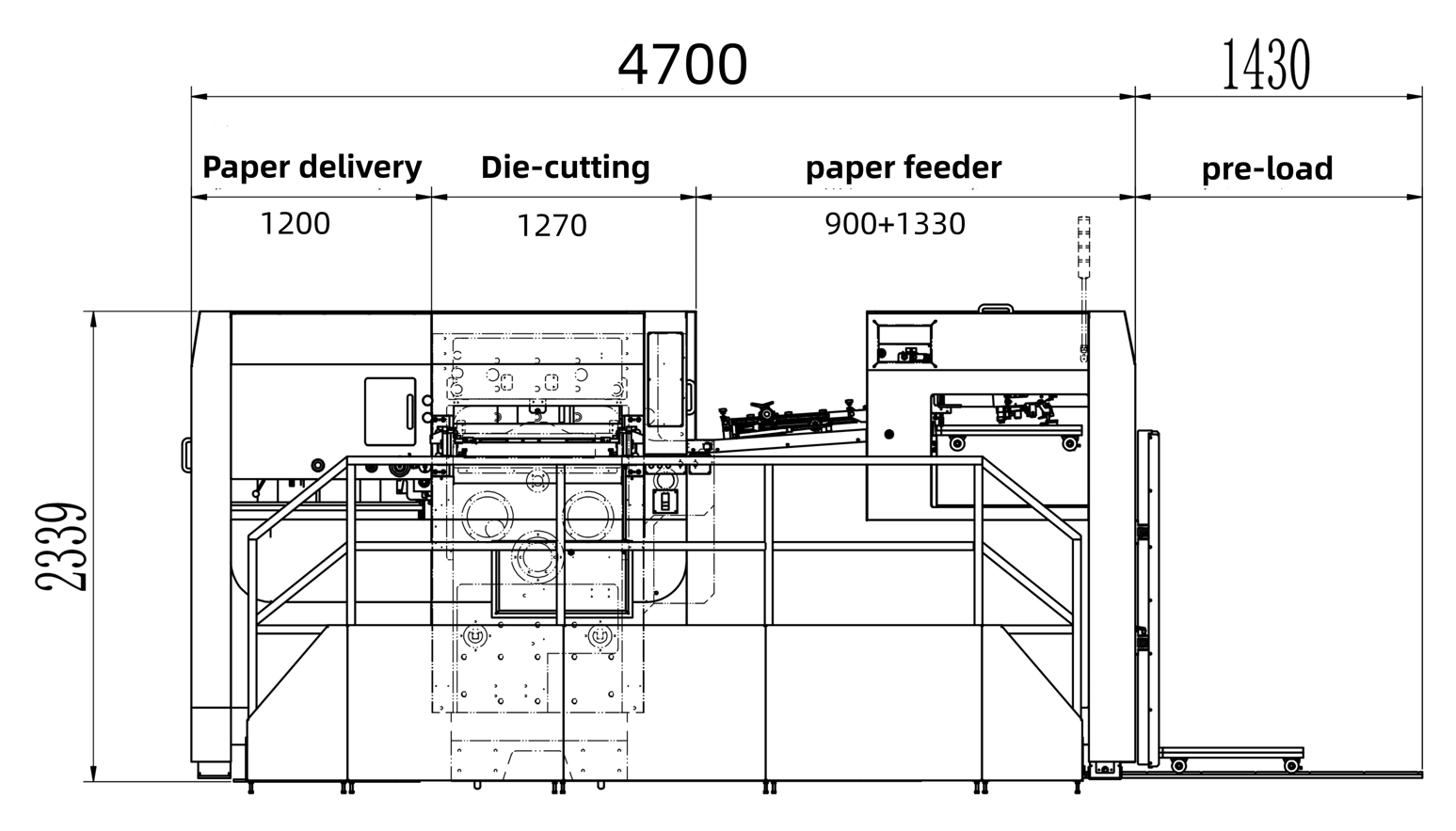

Overall Dimension 【L (+ pre-stack)×W(+ platform)×H】 | AEM-1050 | 4700(+1430)×2100(+1900)×2400mm |
AEM-1050Q | 5600(+1430)×2100(+1900)×2400mm | |

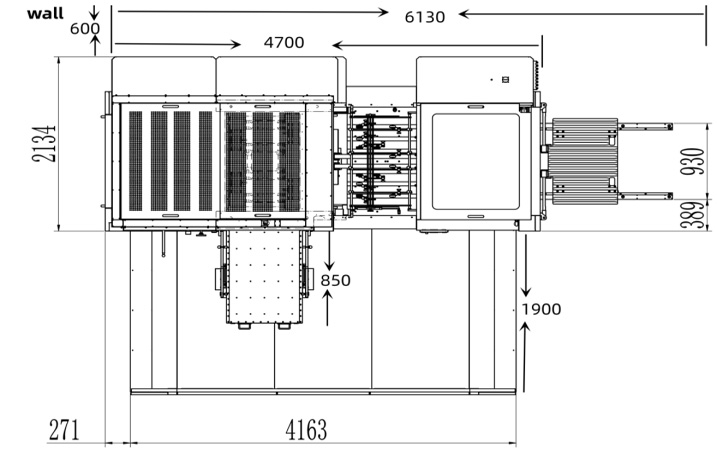

AEM-1050

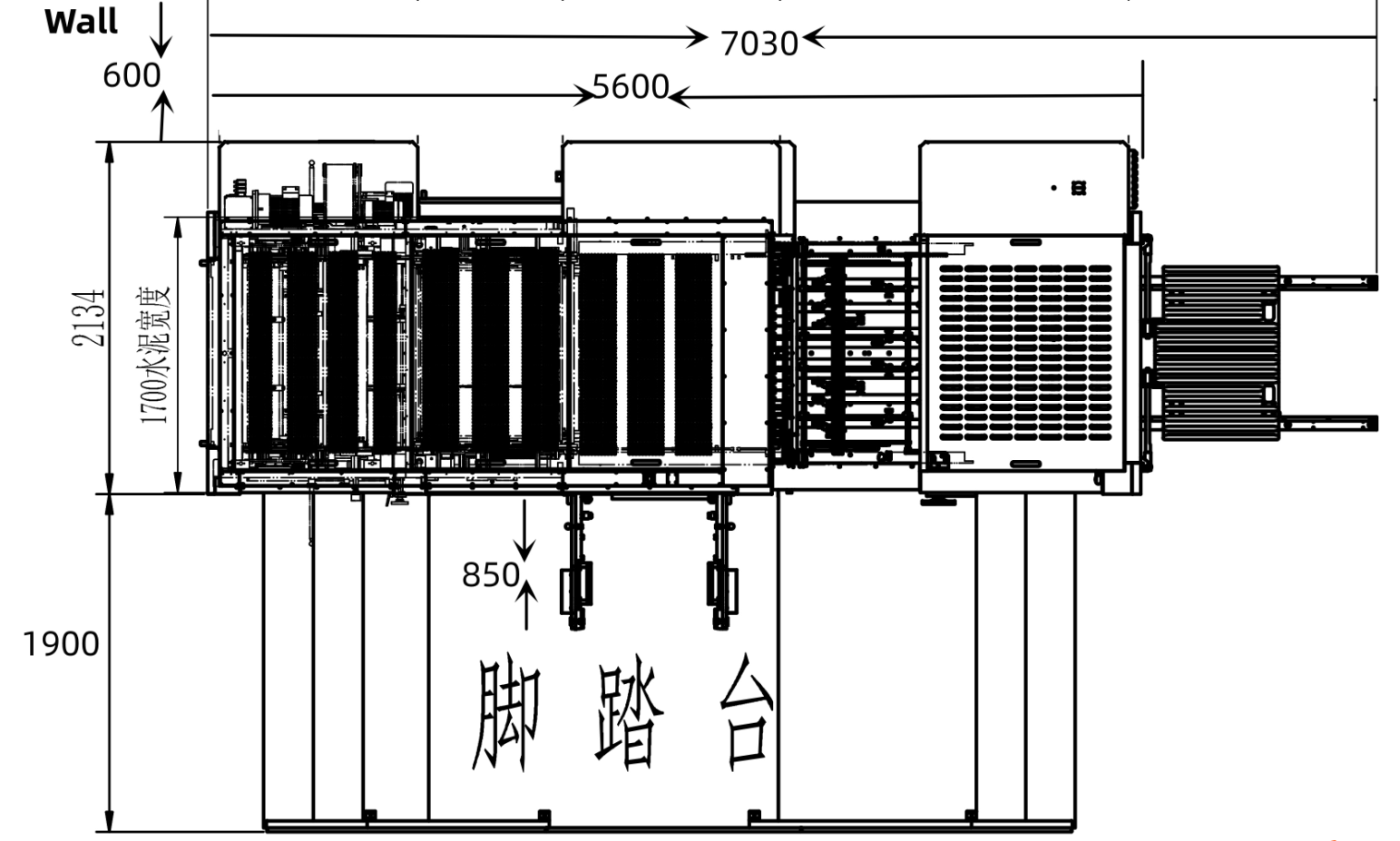

AEM-1050Q
We use premium components (European, Japanese, and Taiwanese electrical/pneumatic parts) and precision manufacturing to ensure the AEM-1050 runs stably under heavy loads. The machine’s durable structure and corrosion-resistant materials guarantee long-term performance.
Enjoy 1 year of free maintenance and lifelong technical training. Our team provides prompt troubleshooting and spare parts supply, ensuring minimal production disruption.
Designed to meet European Safety Standards, the machine prioritizes operator safety with intelligent alarms, automatic shutdowns, and ergonomic design.
High-speed operation, material-saving precision, and low energy consumption reduce per-unit production costs, delivering a strong return on investment.
It handles paper, paperboard (0.1–2 mm), corrugated board (<4 mm), and plastic sheets (PVC, PP, 0.2–1 mm) with an optional heating plate.
The machine reaches up to 7500 sheets per hour, ideal for high-volume production.
Yes, we offer a 1-year free maintenance warranty and lifelong technical support.
It operates on 3-phase 380V 50HZ with a total power of 17.8 KW (without heating).
