Heavy-Duty Folder Gluer YJC-1200F

Product Overview

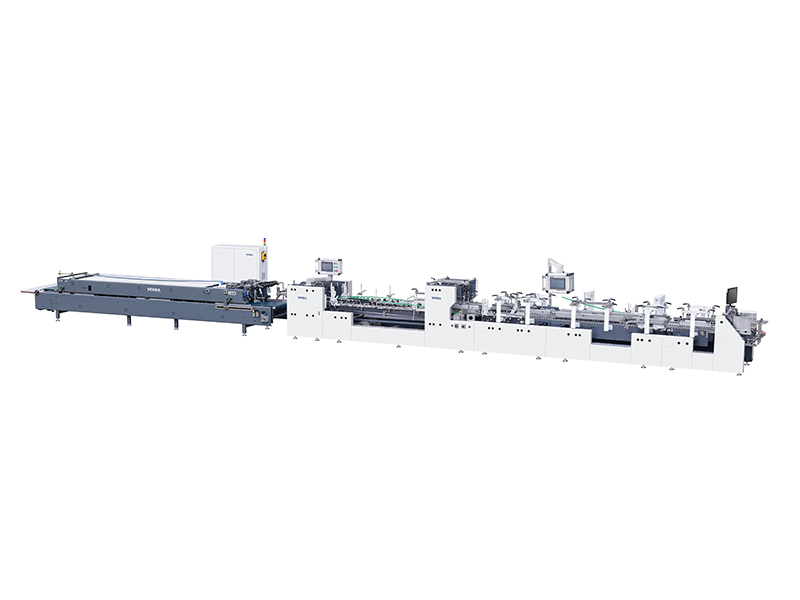

The Pace-Setter YJC-1200F Folder Gluer Machine is a professional-grade packaging equipment designed for high-speed production of diverse carton types. Engineered to handle straight line boxes, bottom lock boxes, 4&6 corners boxes, side glue boxes, box inside boxes, mini boxes, and custom special-shaped boxes (irregular boxes), this machine is a game-changer for packaging factories seeking efficiency and versatility. With a maximum speed of 400 meters/min, it outperforms standard folder gluers, while its compatibility with 200~800 gsm cardboard and E-flute & F-flute corrugated boards makes it adaptable to most packaging materials. Whether for large-scale mass production or customized orders, the YJC-1200F delivers consistent results, meeting the demands of modern packaging workflows.

Video

What Stands Out

Servo-Driven Fully Automatic Feeder

Equipped with a servo motor and 8pcs 30mm soft rubber compound friction belts (with optional 4 vacuum belts), the feeder ensures smooth, continuous paper feeding without jams. The 4 back carton supports and 3 quick-adjust front paper supports adapt to different substrate thicknesses, reducing downtime for material changes.

4&6 Corners Box Production Capability

Unlike basic folder gluers, the YJC-1200F features a dedicated 4&6 Corners Device with 2 servo drive motors and separate folding hooks for 4-corner and 6-corner boxes. The lid can be folded from either side, offering unmatched flexibility for complex box designs.

Remote-Controlled Electronic Movements

Key units (aligning, pre-fold, crash lock, folding) feature electronic movements controlled via remote, allowing operators to adjust positions and pressures without manual intervention. This enhances precision and reduces human error.

Heavy-Duty Durability

With a net weight of 8.5 Ton and robust construction, the machine withstands long hours of continuous operation. The 3.7 KW pressing motor and pneumatic pressing system (adjustable via regulator valves) ensure firm, neat folds for every box.

Video Screen Monitor for Quality Control

A built-in video screen lets operators view the final product at the end of the production line, enabling real-time quality checks and immediate adjustments to avoid defective outputs.

Machine Details

Feeder

• Fully automatic feeder with servo motor

• 8pcs 30mm Friction Belts Soft Rubber Compound (optional extra 4 vacuum belts)

• 4 Back Carton supports

• 3 Front paper supports (Quick adjustment for thickness of substrate)

• 2 Paper Side guides

• Vibrator

• Video screen monitor (view final product at the end of the Machine)

Aligning Unit

• 2 Bottom Transport Carriers

• 1 left Hand Side Squaring Guide

• 1 Right Hand Side Squaring Guide

• 4 Top paper support guides

• Adjustable top Carriers fitted with independent lever system which can be independently applied giving the desired pressure required for the alignment of Substrate carton blank

• Electronic movements of Carriers in and out of working position (Via remote control)

Pre Fold Unit

• 1^st and 3^rd Crease Pre Folding up to 180 and 135 degrees helping to break the fiber of rigged board

• 3 Bottom Carriers

• 3 Top Carriers

• Electronic movements of carriers in and out of working position (Via remote control)

Crash Lock Unit

• 3 Bottom Transport Carriers

• 3 Top Transport Carriers

• 4 Sets of crash lock hooks

• 3 Sets of diagonal folding shoes 2 Unit per Set

•  Electronic movements of Carriers in and out of working position (Via remote control)

4 And 6 Corner Device

•  2 Servo Drive Motors

•  3 Folding Hooks 4 Corners

•  3 Folding Hooks 6 Corners

•  6 Corner Box Lid Can Be Folded from the Left or Right hand side Of Machine

•  Moveable Touch screen Commander Module (For programing Measurement’s: Speed and position and Electronic angel of the folding Hooks)

Final Folding Unit

• Folding 2 and 4 crease

• 3 Carriers

• Equipped with 2 glue tanks 1 Left 1 Right with 4 M/m disc

• Adjustable speed control of belts left and right

• Electronic movements of Carriers in and out of working position (Via remote control)

Trombone Unit

• Double Trombone (Telescopic)

• Moveable Touch screen Commander Module

• Dirven by 2.2KW motor independently

• Electronic movements of carriers in and out of working position (Via remote control)

Pressing Unit

• 1 Drive Motor (Standard 3.7 KW)

• Front and Backward position

• Pneumatic pressing (Adjustable via Pneumatic Regulator valves)

• Squaring device

Electric Parts List

NAME	MODEL	BRAND
Feeder Servo Motor	5KW
Main Motor	15KW
Trombone Motor	2.2KW
4&6 Corners Back Hook Servo Motor	2KW(2pcs)
Conveyor Motor	3.7KW
Driving Multi-wedge Belt	PL Type
Feeder Sponge belt	Thickness 8mm
Flat Belt
Inverter
Touch Screen
PLC
Contactor
Circuit Breaker
Power Switch
Button
Solenoid Valve
Air Cylinder
Due to technical upgrade, YAOJIA reserves the right to modify relevant parameters and functions without prior notice.

Why Choose Us

With a max speed of 400 m/min, the YJC-1200F boosts output by 30% compared to average folder gluers, helping you meet tight deadlines.

Electronic alignment, servo-driven movements, and pre-folding technology ensure every box has neat, accurate folds, reducing waste and improving product quality.

From standard straight line boxes to complex 6-corner and special-shaped boxes, this machine eliminates the need for multiple devices, saving costs and space.

Heavy-duty components and high-quality materials minimize wear and tear, while easy-to-access parts simplify maintenance, reducing downtime.

We provide detailed installation guides, operator training, and 24/7 technical support to ensure your machine runs smoothly.

FAQ

What materials can the Pace-Setter YJC-1200F handle?

It works with 200~800 gsm cardboard and E-flute & F-flute corrugated boards, covering most common packaging materials for boxes.

Is the machine suitable for 6-corner box production?

Yes! The dedicated 4&6 Corners Device with servo motors and adjustable folding hooks makes it ideal for 6-corner box production, with flexible lid folding options.

How to adjust the machine for different box sizes?

The machine features quick-adjust paper supports, remote-controlled electronic movements, and a movable touch screen for programming measurements—no complex tools required.
