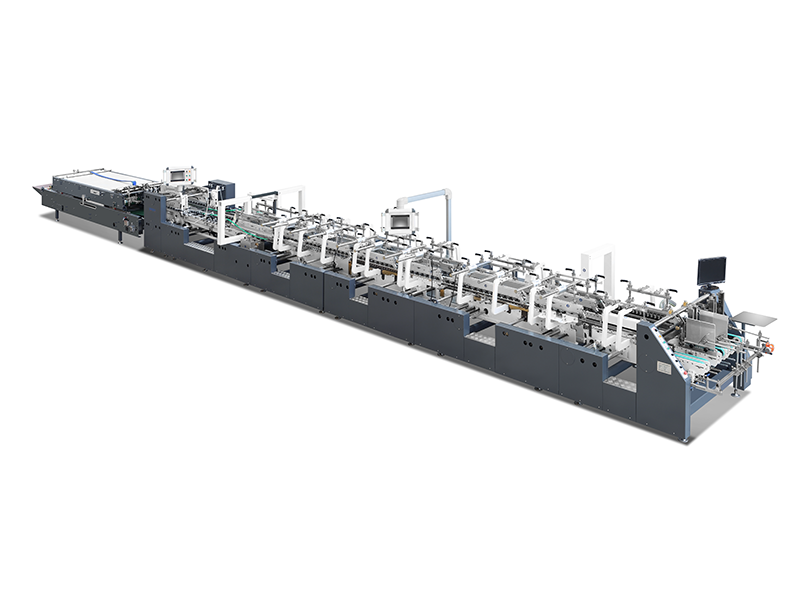

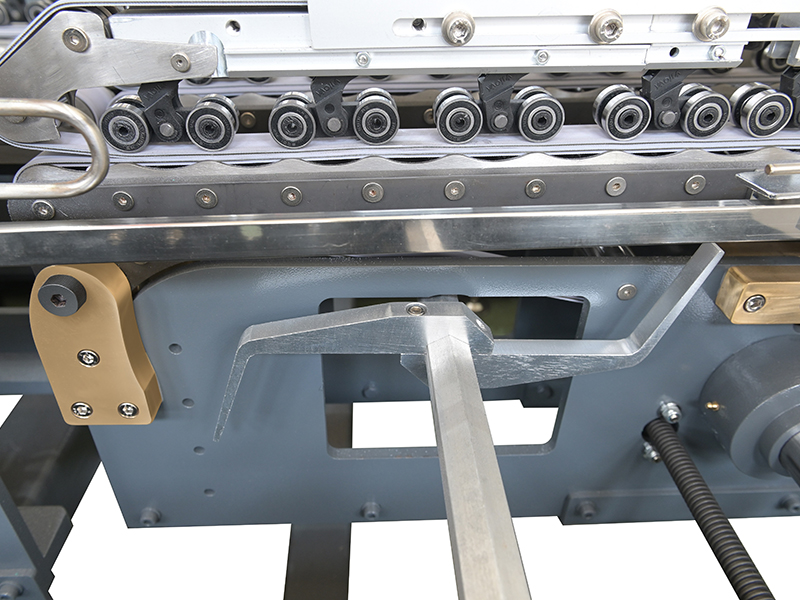

Technical Data Leader YJS-1200FL
| Processed Materials | |
| Cardboard | 200~800 gsm |
| Corrugated Flute Type | E-flute and F-flute |
| Capability | |
| Speed | Max. 400 m/min |
| Paper Width Size | Max. 1200 mm, Min. 76 mm |

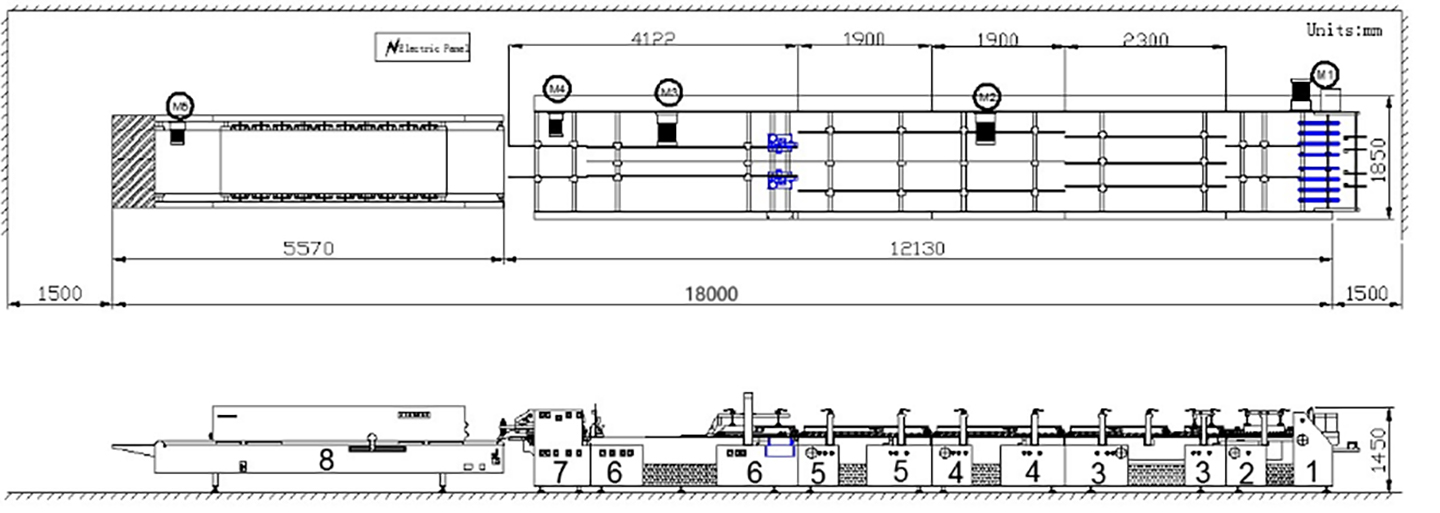

| Dimensions & Weight | |
| Length | 18 m |
| Width | 1.85 m |
| Height | 1.9 m |
| Weight | 10 Ton |
| Installation | |
| Electrical Connected Load | 45 KW |
| Power Supply | 380 Volts 3 Phase 50 Hz |
| Compressed Air | 6 bar |
| Air Compressor Capacity | 10 m³/h |
| Air Tank Capacity | 60 L |
Machine Details
 |  |

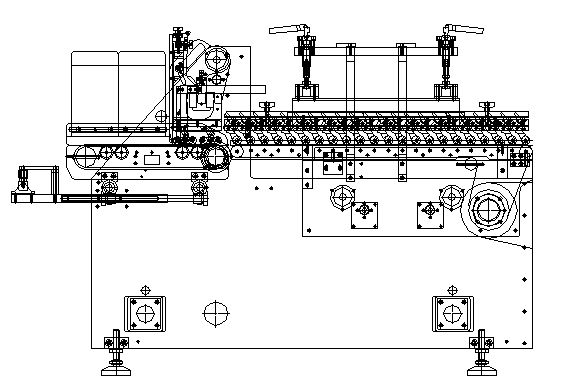

Feeder
Fully Automatic Feeder With Servo Motor 5kw
10 pcs 30mm Friction Belts Soft Rubber Compound (optional extra 4 vacuum belts)
4 Back Carton Supports
3 Front paper supports (Quick adjustment for thickness of substrate)
2 Paper Side Guides
Vibrator
Full Colour Video Monitor (Supervise view final product at the end of the Machine)
AligningUnit
2 Bottom Transport Carriers (fitted with 34mm wide Belts)
1 left Hand Side Squaring Guide
1 Right Hand Side Squaring Guide
4 Top paper support guides
Adjustable top Carriers fitted with independent lever system which can be independently applied giving the desired pressure required for the alignment of Substrate carton blank
Electronic movements of carriers in and out of working position (Via remote control)
 |  |
Pre Fold Unit
• 1st and 3rd crease
• 3 Bottom Carriers
• 3 Top carriers
• Electronic movements of carriers in and out of working position (Via remote control)
• One Hookless unit
Crash bottom lock unit
• Two crash bottom lock units
• 3 Bottom Transport carriers in each unit
• 3 Top Transport carriers in each unit
• 8 Sets of crash lock hooks
• Bottom chromed support bars
• Electronic movements of carriers in and out of working position (Via remote control)
• One Hookless unit
 |
|  |
4 And 6 Corner
• 2 Servo Drive Motors 3kw Each
• 3 Folding Hooks 4 Corners
• 3 Folding Hooks 6 Corners
• 6 Corner Box Lid Can Be Folded from the Left or Right hand side Of Machine
• Moveable Touch screen Commander Module
|  |
Final Folding Unit
• Folding 2 and 4 crease
• Equipped with 2 glue tanks 1 Left 1 Right with 4 M/m disc
• Guide rollers Left and right
• Adjustable speed control of belts left and right
• Electronic movements of carriers in and out of working position (Via remote control)
• Removable Center top and bottom carriers (For production of small size boxes)
 | |
Final Folding Unit
• Folding 2 and 4 crease
• Equipped with 2 glue tanks 1 Left 1 Right with 4 M/m disc
• Guide rollers Left and right
• Adjustable speed control of belts left and right
• Electronic movements of carriers in and out of working position (Via remote control)
• Removable Center top and bottom carriers (For production of small size boxes)
 |  |
Trombone Unit
• Double Trombone (Telescopic)
• Servo Motor driven independently
• Electronic movements of carriers in and out of working position (Via remote control)
• Motorized variable speed control of Belt Speed for smooth delivery
• Moveable Touch screen Commander Module
Pressing Unit
• 1 Drive Servo Motor
• Electronic Movement of Press Motorized (Front and Backward position)
• Pneumatic pressing (Adjustable via Pneumatic Regulator valves)
• Squaring Device
