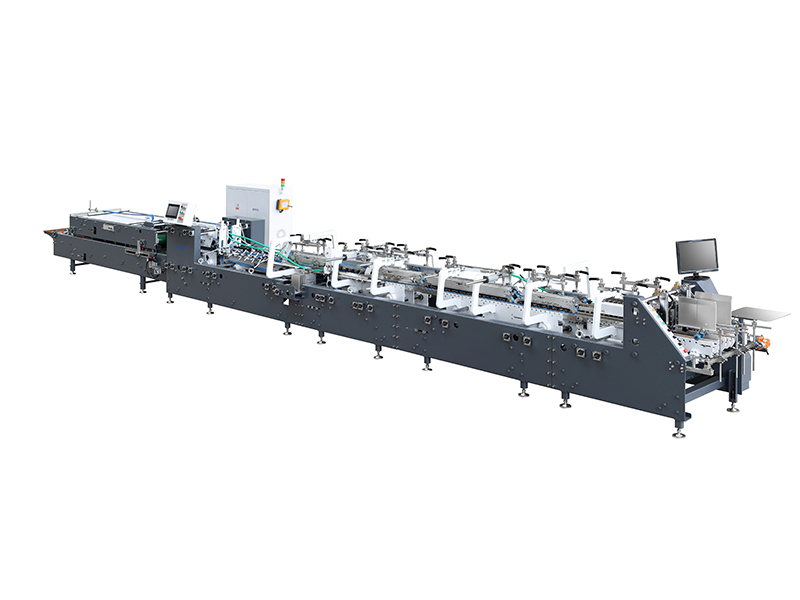

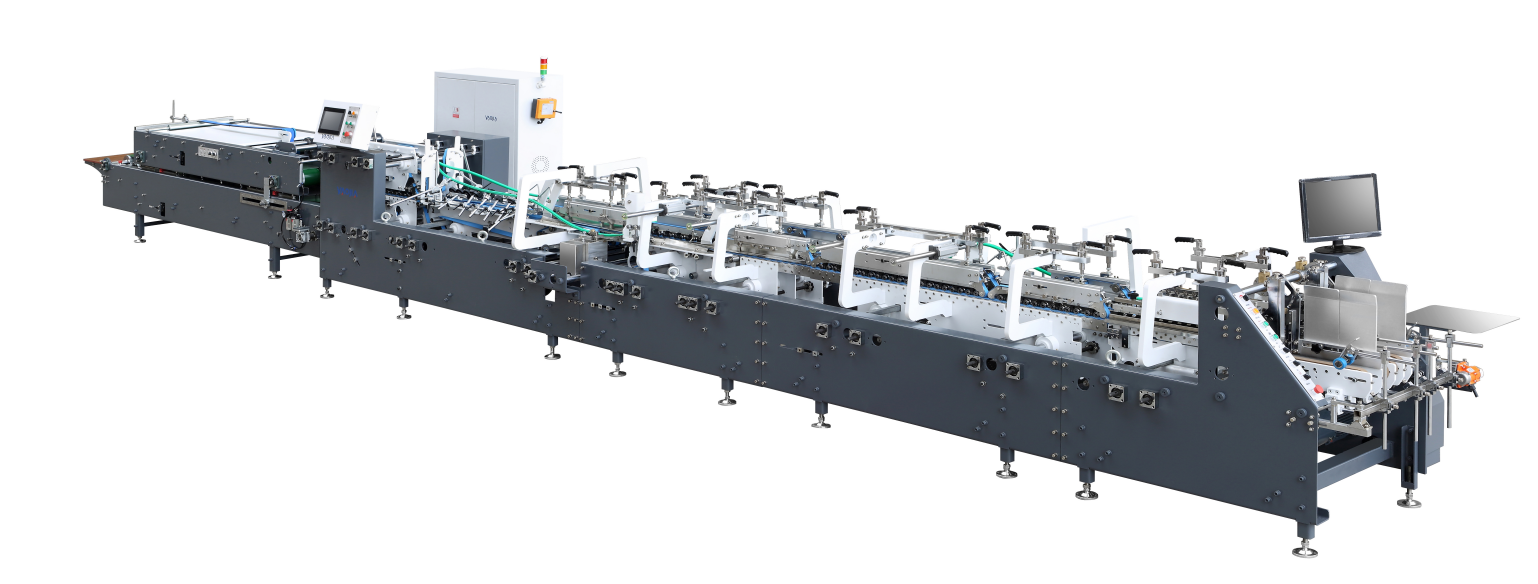

The Pioneer YJA-700 Folder Gluer Machine is a compact, high-performance packaging solution tailored for small to medium-sized workshops. Specializing in straight line boxes, bottom lock boxes, side glue boxes, mini boxes, and special-shaped boxes (irregular boxes), this machine combines speed, precision, and space-saving design. With a maximum speed of 350 meters/min, it delivers efficient production without compromising quality, while its compatibility with 200~800 gsm cardboard, E-flute & F-flute corrugated boards, and water-based glue ensures versatility for diverse packaging needs. Whether you’re producing mini gift boxes or custom-shaped packaging, the Pioneer YJA-700 is engineered to streamline your workflow and reduce operational costs.
With a length of only 13.5 m and width of 1.25 m, the YJA-700 occupies 20% less space than standard folder gluers, making it perfect for workshops with limited area. Its net weight of 5.5 Ton also simplifies installation and relocation.
Equipped with a full-color video monitor, the machine allows operators to supervise the final product in real time at the end of the production line, enabling instant adjustments to avoid defective outputs and ensure consistent quality.
The double telescopic trombone unit features motorized variable speed control. Ensuring smooth delivery of folded boxes and preventing damage during the final stage of production.
The pressing unit uses pneumatic technology with adjustable regulator valves. Delivering uniform pressure for firm, neat folds—critical for maintaining box structural integrity.
With an 18 KW electrical connected load. The YJA-700 is energy-efficient, while its easy adjustment and operation make it ideal for small-batch orders and frequent product changes.
Processed Materials | |
Cardboard | 200~800 gsm |
Corrugated Flute Type | E-flute and F-flute |
Glue Type | Water-based glue |
Capability | |
Speed | Max. 350 m/min |
Paper Width Size | Max. 650 mm, Min. 76 mm |
Dimensions & Weight | |
Length | 13.5 m |
Width | 1.25 m |
Height | 1.7 m |
Net Weight | 5.5 Ton |
| Installation | |
Electrical Connected Load | 18 KW |
Power Supply | 380 Volts 3 Phase 50 Hz |
Compressed Air | 6 bar |
Air Compressor Capacity | 10 m³/h |
Air Tank Capacity | 60 L |

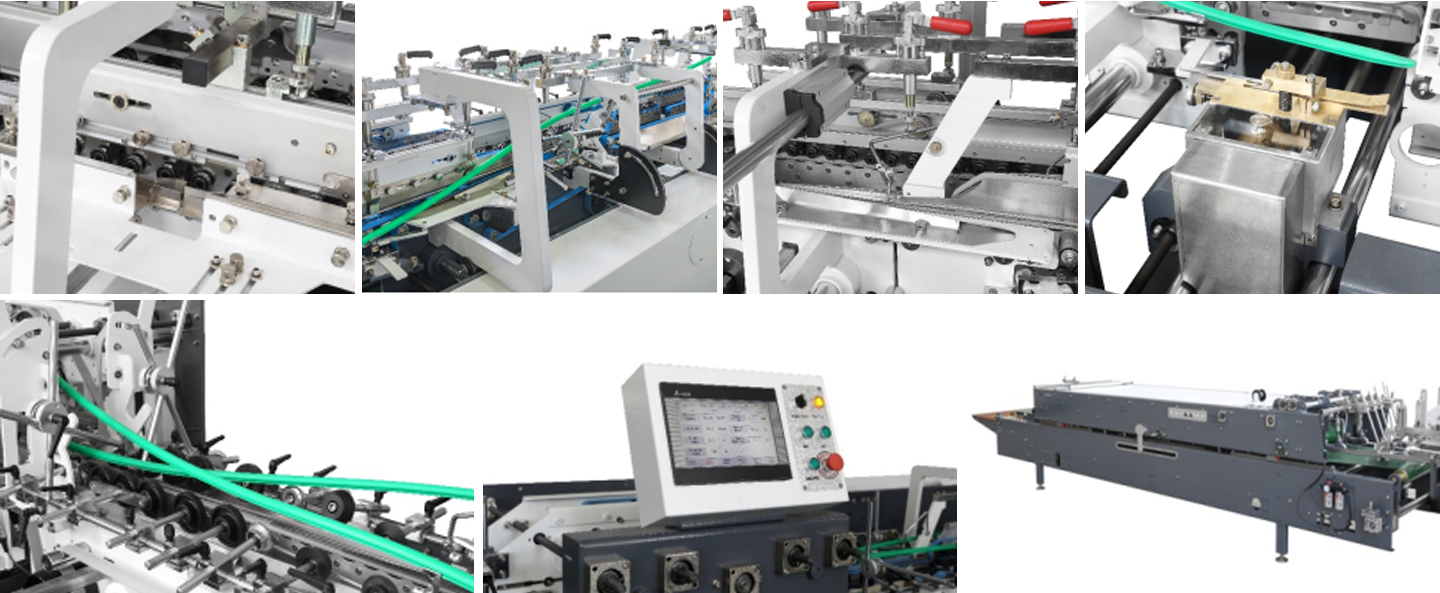

Machine Details
Feeder
• Fully Automatic Feeder With Motor
• 5 pcs 30mm Friction Belts Soft Rubber Compound
• 4 Back Carton Supports
• 3 Front paper supports (Quick adjustment for thickness of substrate)
• 2 Paper Side Guides
• Vibrator
• Full Color Video Monitor (Supervise view final product at the end of the Machine)
Aligning Unit
• 2 Bottom Transport Carriers
• 1 left Hand Side Squaring Guide
• 1 Right Hand Side Squaring Guide
• 4 Top paper support guides
• Adjustable top Carriers fitted with independent lever system which can be independently applied giving the desired pressure required for the alignment of Substrate carton blank
Pre Fold Unit
• First crease line pre-folder up to 180º. Third crease line pre-folder up to 135º
• 3 Bottom Carriers
• 3 Top Carriers
• Pre-folding belt (right) and pre-folding sword (left)
Crash Lock Unit
• 3 Bottom Transport Carriers
• 3 Top Transport Carriers
• 4 Sets of crash lock hooks
• 3 Sets of diagonal folding shoes 2 Unit per Set
• Bottom chromed support bars
Final Folding Unit
• Folding 2 and 4 crease
• Equipped with 2 glue tanks 1 Left 1 Right with 4 M/m disc
• Adjustable speed control of belts left and right
Trombone Unit
• Double Trombone (Telescopic)
• Motorized variable speed control of Belt Speed for smooth delivery
• Driven by motor independently
Pressing Unit
• 1 Drive Motor (Standard 2.2 KW)
• Front and Backward
• Pneumatic pressing (Adjustable via Pneumatic Regulator valves)
• Squaring device
Ideal for small workshops, the YJA-700’s compact footprint (13.5m x 1.25m) maximizes floor space utilization without sacrificing performance.
Pneumatic pressing, precise alignment guides, and pre-folding technology ensure every box has uniform folds and strong gluing, reducing waste and customer complaints.
With an 18 KW electrical connected load, the machine consumes less energy than larger models, lowering your monthly utility costs.
]Intuitive controls, quick-adjust supports, and a full-color monitor make the YJA-700 easy to operate—no specialized training required. Perfect for frequent product changes.
High-quality components and robust construction ensure stable operation for daily use, while accessible parts simplify maintenance and extend the machine’s lifespan.
The machine is designed for water-based glue, which is eco-friendly, cost-effective, and suitable for most cardboard and corrugated board materials.

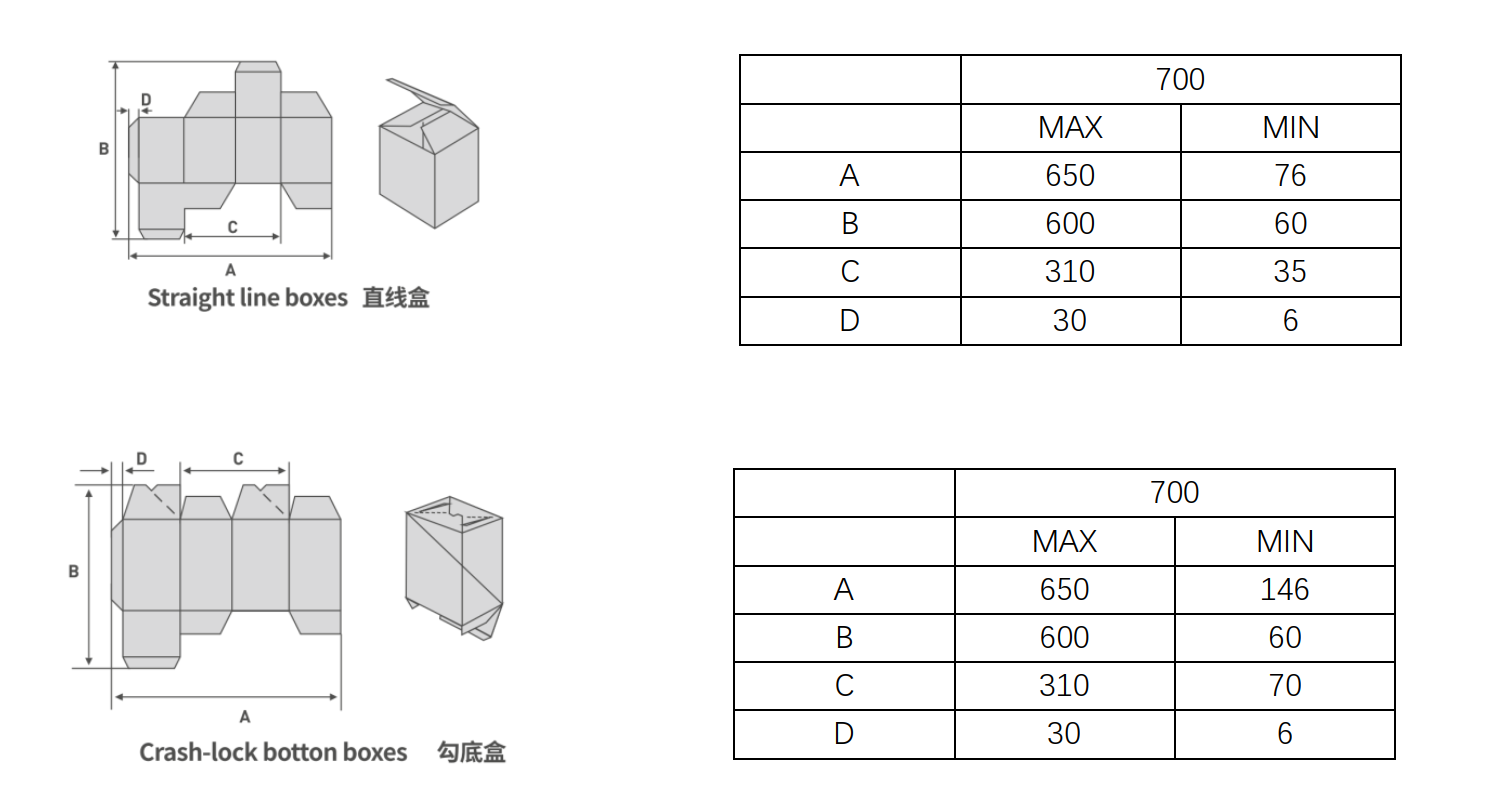

It can handle paper widths as small as 76 mm, making it ideal for mini box production and small-sized packaging.
Yes! Its easy adjustment, quick setup, and energy-efficient design make it perfect for small to medium batches, reducing downtime between orders.

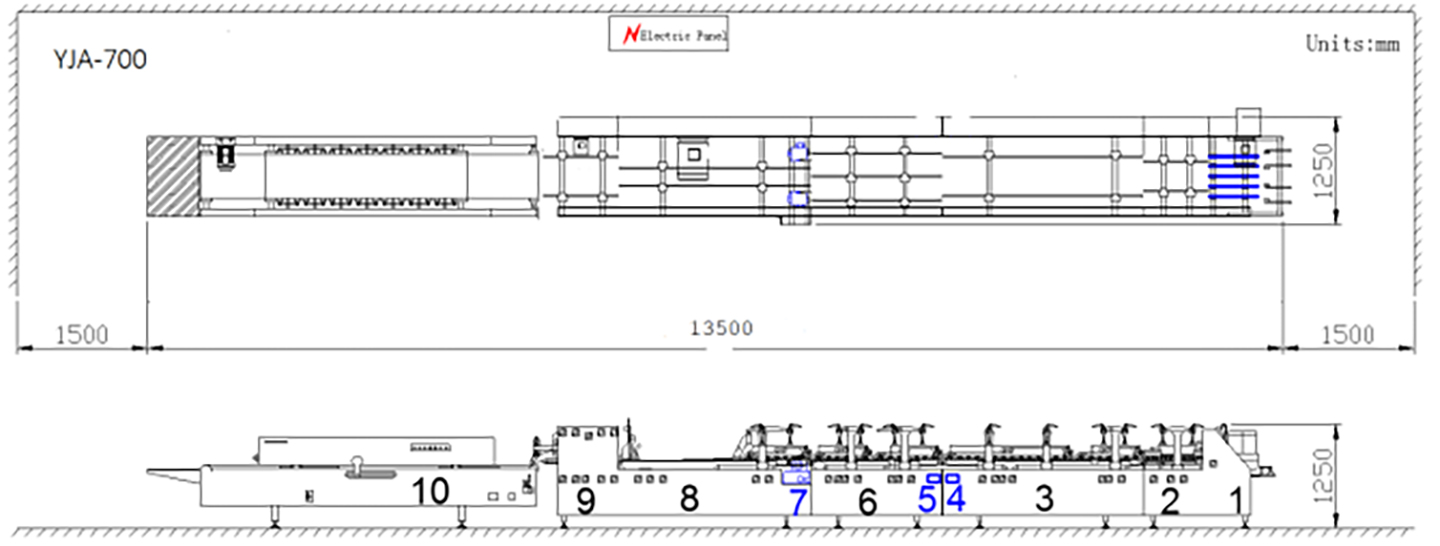

The machine’s dimensions are 13.5m (L) x 1.25m (W) x 1.7m (H)—it requires minimal space compared to standard folder gluers, fitting most small workshops.
Yes, it features intuitive controls, a full-color video monitor, and adjustable settings, making operation simple even for new operators.
