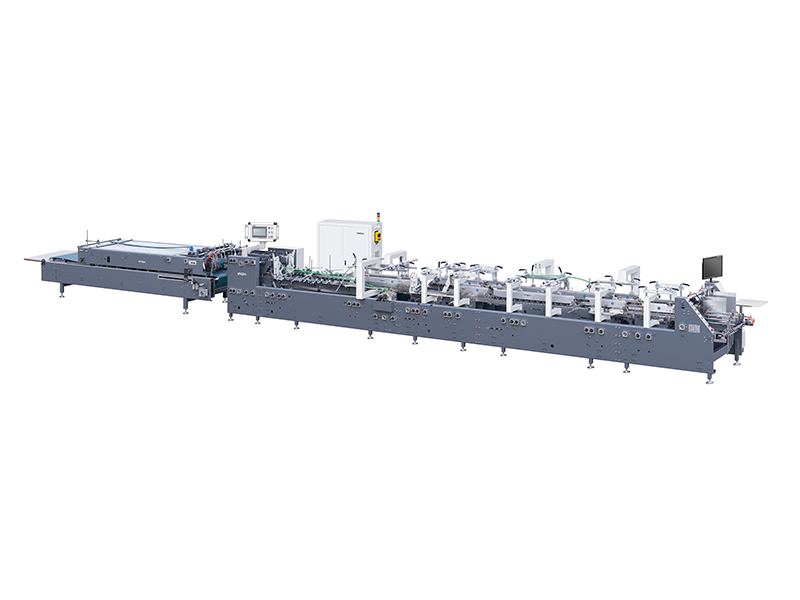

Pace-Setter YJB-900 Folder Gluer Machine

Video

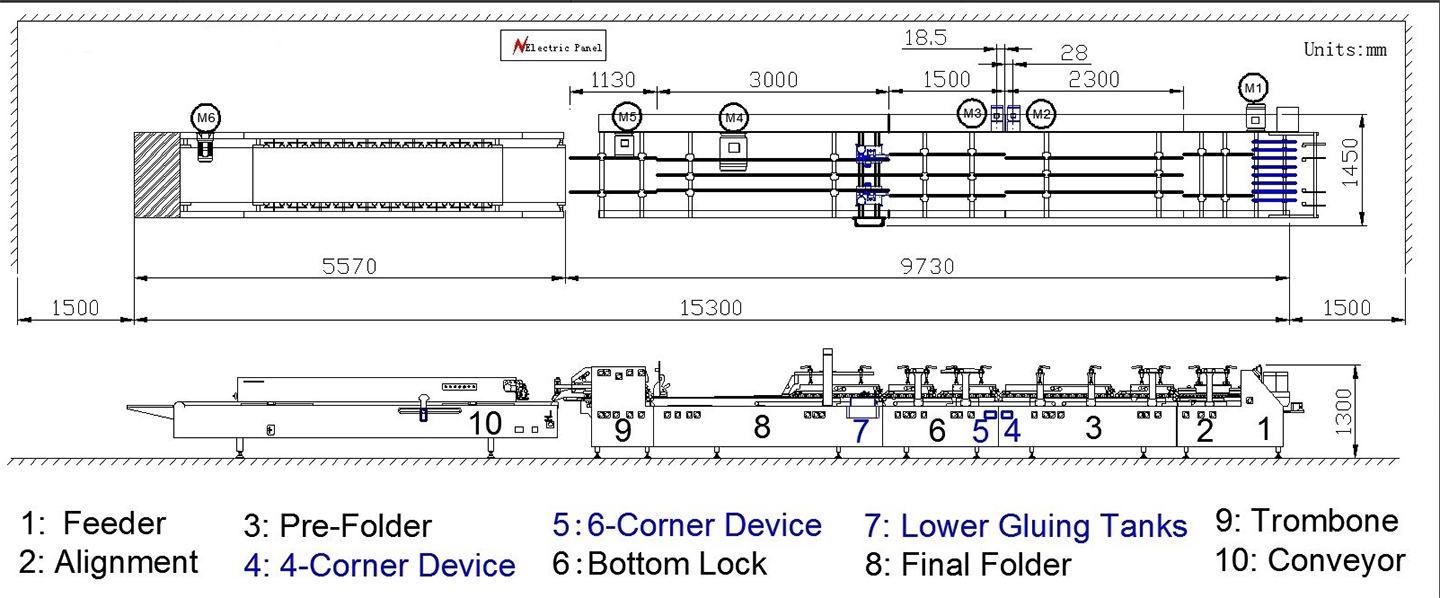

Machine Details

Feeder

• Fully Automatic Feeder With Servo Motor

• 8 pcs 30mm Friction Belts Soft Rubber Compound

• 4 Back Carton Supports

• 3 Front paper supports (Quick adjustment for thickness of substrate)

• 2 Paper Side Guides

• Vibrator

• Full Colour Video Monitor (Supervise view final product at the end of the Machine)

Aligning Unit

• 2 Bottom Transport Carriers (fitted with 34mm wide Belts)

• 1 left Hand Side Squaring Guide

• 1 Right Hand Side Squaring Guide

• 4 Top paper support guides

• Adjustable top Carriers fitted with independent lever system which can be independently applied giving the desired pressure required for the alignment of Substrate carton blank

• Electronic movements of Carriers in and out of working position (Via remote control)

Pre Fold Unit

• 3 Bottom Carriers

• 3 Top Carriers

• Pre-folding belt (right) and pre-folding sword (left)

• First crease line pre-folder up to 180º. Third crease line pre-folder up to 135º

• Electronic movements of Carriers in and out of working position (Via remote control)

Crash Lock Unit

• 3 Bottom Transport Carriers

• 3 Top Transport Carriers

• 4 Sets of crash lock hooks

• 3 Sets of diagonal folding shoes 2 Unit per Set

• Bottom chromed support bars

• Electronic movements of Carriers in and out of working position (Via remote control)

4 And 6 Corner (Optional)

• 2 Servo Drive Motors 2kw Each

• 3 Folding Hooks 4 Corners

• 3 Folding Hooks 6 Corners

• 6 Corner Box Lid Can Be Folded from the Left or Right hand side Of Machine

• Moveable Touch screen Commander Module (For programing Measurement’s: Speed and position and Electronic angel of the folding Hooks)

Final Folding Unit

• Folding 2 and 4 crease

• Equipped with 2 glue tanks 1 Left 1 Right with 4 M/m disc

• Guide rollers Left and right

• Adjustable speed control of belts left and right

• Removable Center top and bottom Carriers (For production of small size boxes)

• Three Carriers

• Electronic movements of Carriers in and out of working position (Via remote control)

Trombone Unit

• Double Trombone (Telescopic)

• Motorized variable speed control of Belt Speed for smooth delivery

• Moveable Touch screen Commander Module

• Driven by motor independently

• Electronic movements of Carriers in and out of working position (Via remote control)

Pressing Unit

• 1 Drive Motor (Standard 3.7 KW)

• Front and Backward position

• Pneumatic pressing (Adjustable via Pneumatic Regulator valves)

• Squaring Device

NAME	MODEL	BRAND
Feeder Servo Motor	5KW
Main Motor	11KW
Trombone Motor	2.2KW
Conveyor Motor	3.7KW
Driving Multi-wedge Belt	PL Type	France
Feeder Sponge belt	Thickness 8mm	Japan
Flat Belt		Japan
Air  Cylinder	MA20*15SCA
Inverter		Korea
PLC
Screen
Contactor		France
Circuit Breaker
Power Switch
Button		Germany
Solenoid Valve		Japan
