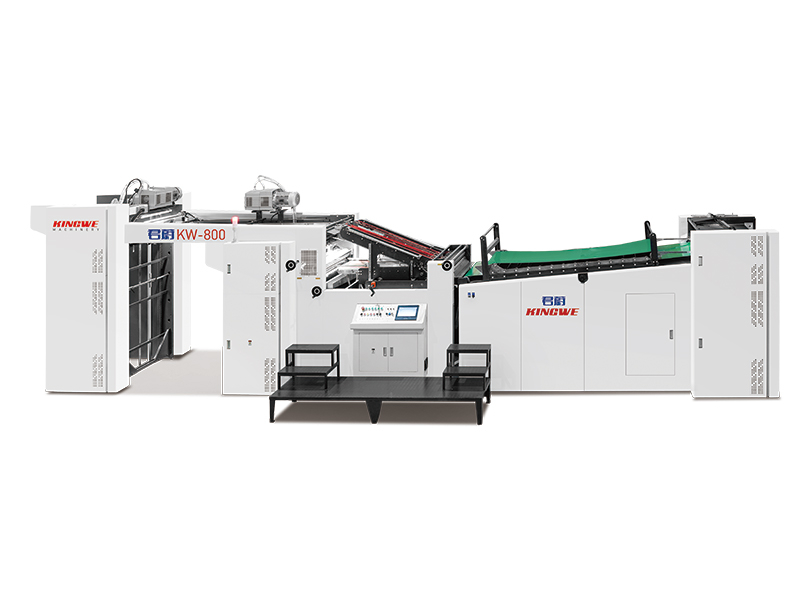

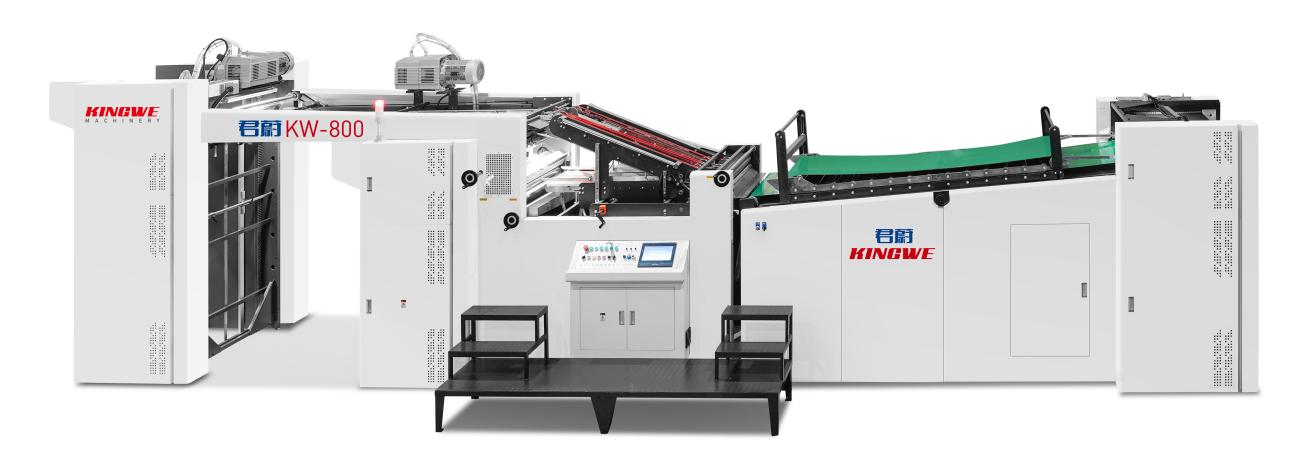

The KW Series Automatic Cardboard Laminating Machine is a high-end smart solution designed for sheet-to-sheet laminating tasks, integrating high alignment, high speed, and high efficiency into one robust system. This advanced laminator excels in bonding cardboard, coated paper, and chipboard, delivering deformation-free finished products that meet the demands of diverse packaging needs—from double side printing paper laminating and thin and thick paper laminating to 3-ply to 1-ply product laminating. Ideal for wine box packaging, shoe box production, hang tags, toy boxes, gift boxes, and cosmetic box manufacturing, it caters to the most delicate packaging requirements with consistent performance. Whether for small-batch customization or large-scale production, the KW series redefines reliability in the laminating industry.
A core highlight of the KW series is its four-suction and four-feeding paper feeder system, featuring feeding nozzles that freely adjust angles to match different paper types and thicknesses. This design ensures smooth, uninterrupted feeding even for thin or thick materials, eliminating paper jams and reducing waste—critical for maintaining high production efficiency.
With an impressive alignment accuracy of ±0.5mm, the machine guarantees precise bonding between sheets, making it perfect for intricate packaging designs. The rigid structure and optimized drive system ensure stable operation over long hours, while the deformation-free lamination preserves the integrity of printed patterns and paper structure.
The KW series accommodates a wide range of material thicknesses: upper paper from 100-800 g/m² and bottom paper from 180-2200 g/m² (varies by model). This versatility allows it to handle everything from lightweight coated paper for hang tags to heavy-duty cardboard for wine boxes, adapting to diverse production needs without compromising quality.
Equipped with an intuitive control system, the machine simplifies setup and operation, even for less experienced operators. The optimized operating space (3*12m for all models) ensures easy integration into existing production lines, while the high-speed performance (up to 150 pcs/min for KW-800 and KW-1207) boosts throughput significantly.
| Model | KW-800 | KW-1207 | KW-1210 |
| Max Paper Size | 800*720mm | 1200*720mm | 1200*1000mm |
| Min Paper Size | 450*260mm | 450*300mm | 450*300mm |
| Thickness of upper paper | 100-800 g/m² | 100-800 g/m² | 100-800 g/m² |
| Thickness of bottom paper | 180-2000 g/m² | 180-2200 g/m² | 180-2200 g/m² |
| Max Speed | 150 pcs/min | 150 pcs/min | 105 pcs/min |
| Accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Power | 14KW | 14KW | 14KW |
| Weight | 6600kg | 7000kg | 7000kg |
| Operating Space | 3*12m | 3*12m | 3*12m |
| Dimension | 9000*2100*2700mm | 9000*2200*2700mm | 9000*2200*2700mm |
 |  |

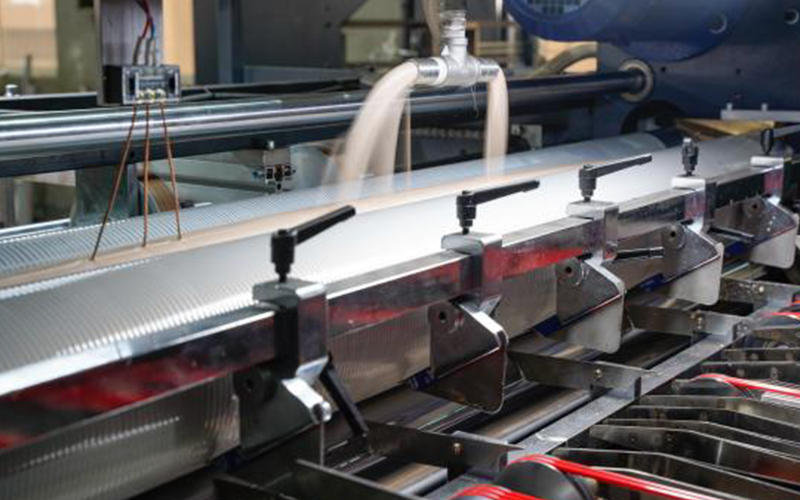

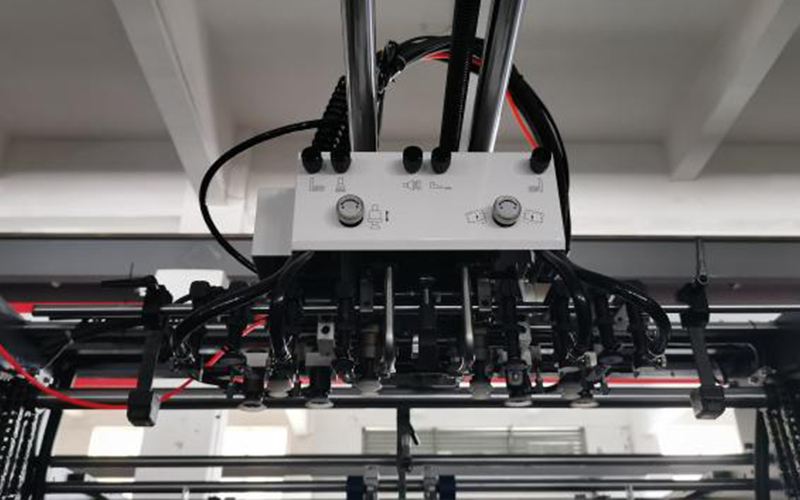

| Coating System | Feeder System |
 |  |

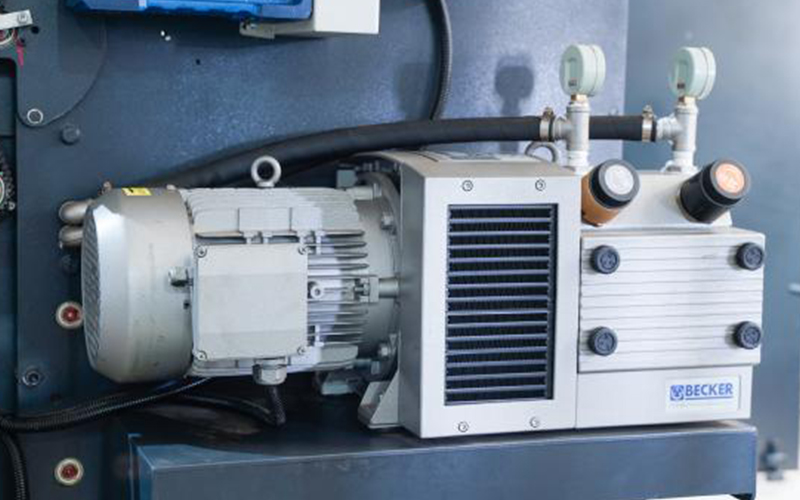

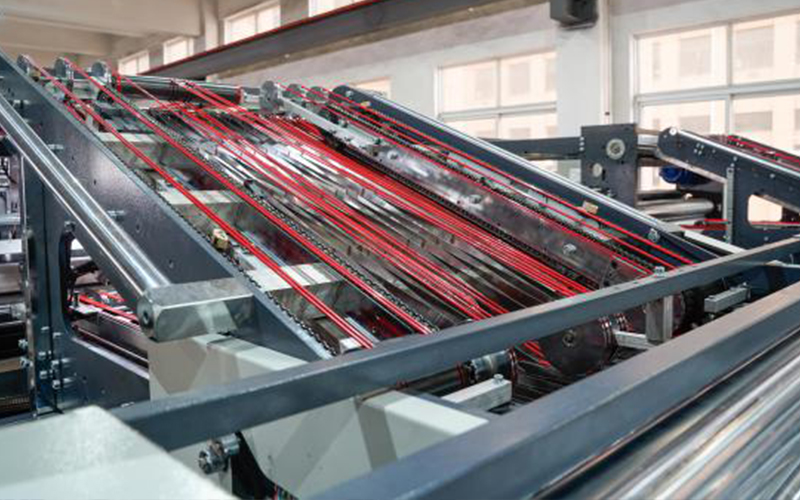

Top Sheet Dynamic Aligning System | Airing System |
 |  |

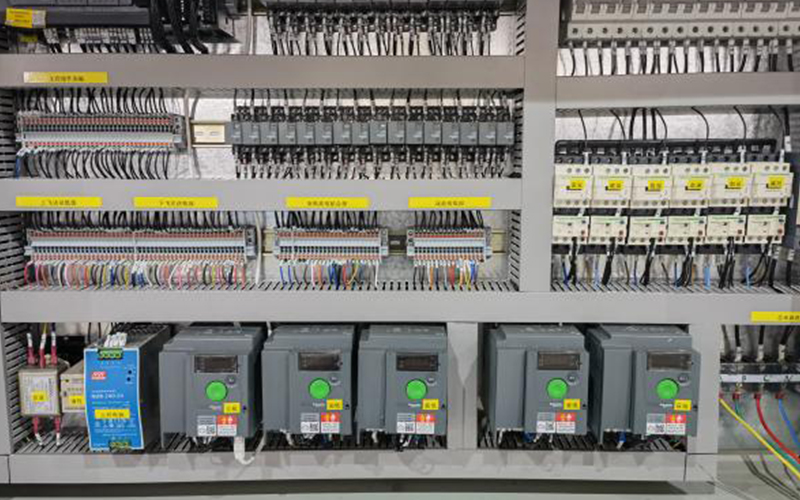

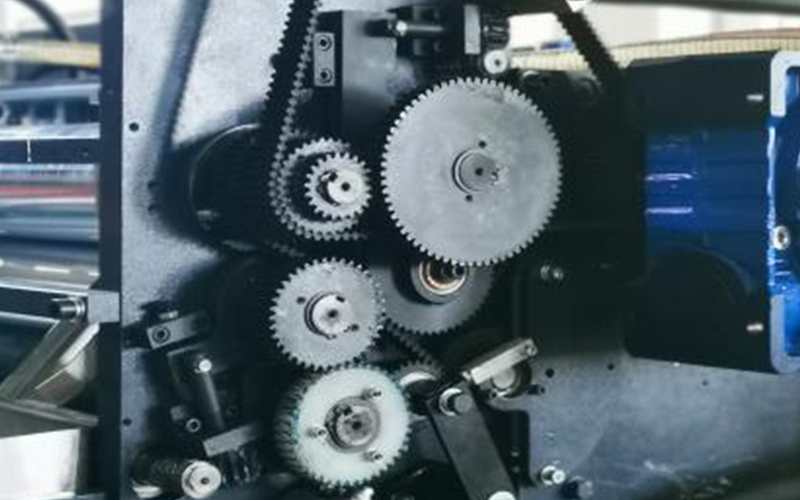

Control System | Drive System |
Video
Innovation-Driven Design: The advanced four-suction feeding system and dynamic aligning technology set the KW series apart from conventional laminators, ensuring superior performance.
Reliable Quality Assurance: Constructed with high-grade materials and rigorously tested, the machine offers long-term stability even under heavy workloads.
Tailored for Packaging Excellence: Specifically engineered for delicate packaging like cosmetic boxes and wine boxes, it meets the strict quality standards of premium product packaging.
Comprehensive Support: We provide professional technical guidance, installation assistance, and responsive after-sales service to maximize your production efficiency.
Cost-Effective Operation: High speed, low waste, and energy-efficient design (14KW power) reduce operational costs while boosting output.
It supports cardboard, coated paper, chipboard, and other similar materials, suitable for laminating double-sided printing paper, thin/thick paper combinations, and 3-ply to 1-ply products.
No. The machine’s optimized lamination process and airing system ensure that finished products remain flat and deformation-free, preserving print quality and structural integrity.
All models offer an accuracy of ±0.5mm, ensuring precise bonding for intricate packaging designs and small-format products.
Yes. With a maximum speed of 150 pcs/min (KW-800/KW-1207), it efficiently handles large batches, making it ideal for mass production of wine boxes, gift boxes, and other packaging.
Absolutely. The four-suction and four-feeding paper feeder system features adjustable nozzles, allowing it to handle upper paper from 100-800 g/m² and bottom paper from 180-2200 g/m².
 |  |
Tag | Jigsaw |
 |  |  |

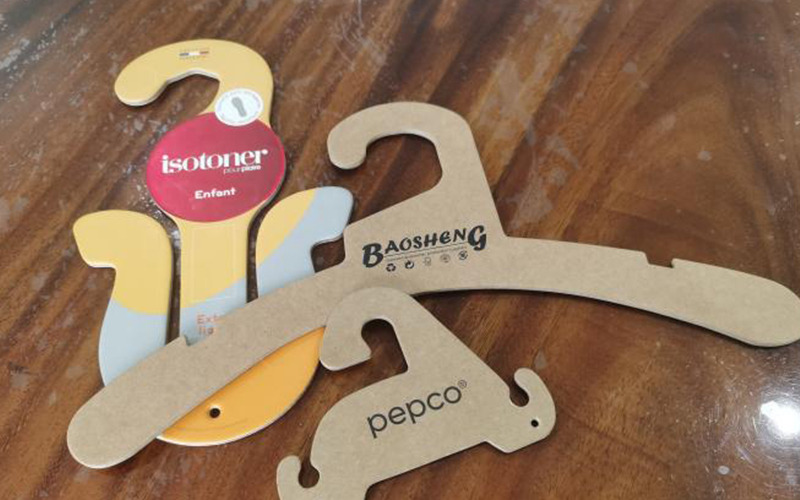

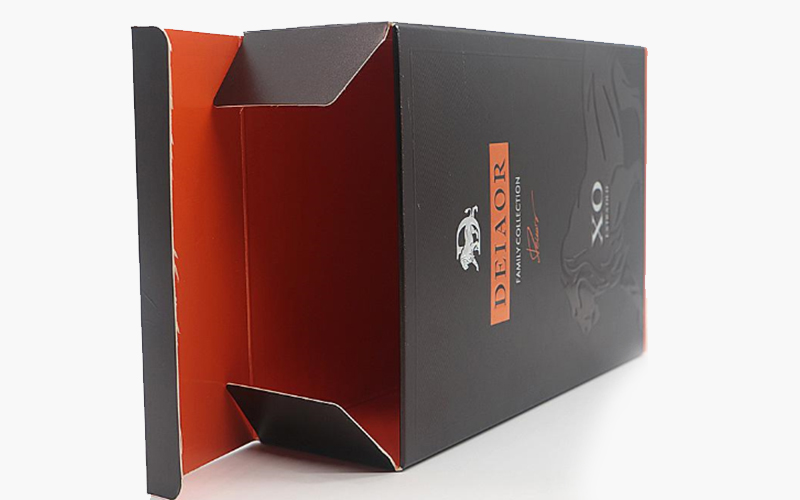

Wine Packaging | Electronics Packagin | Paper Hanger |
