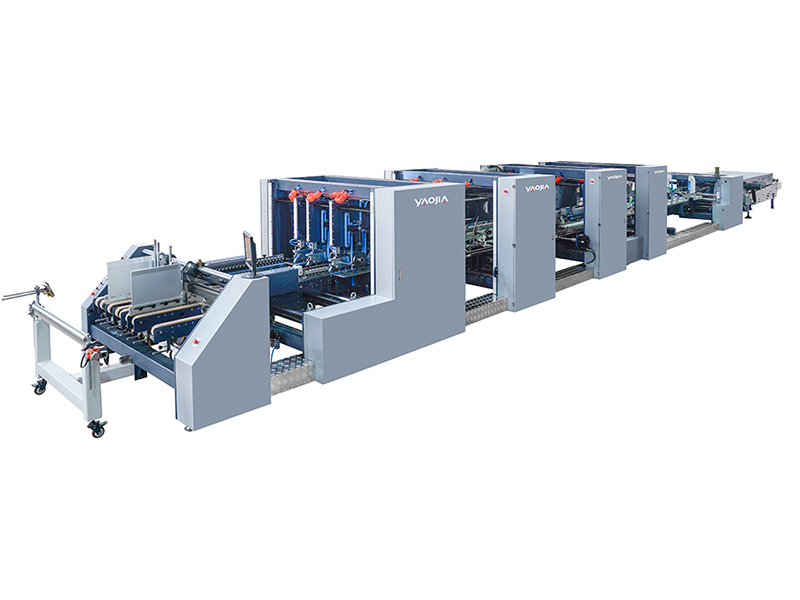

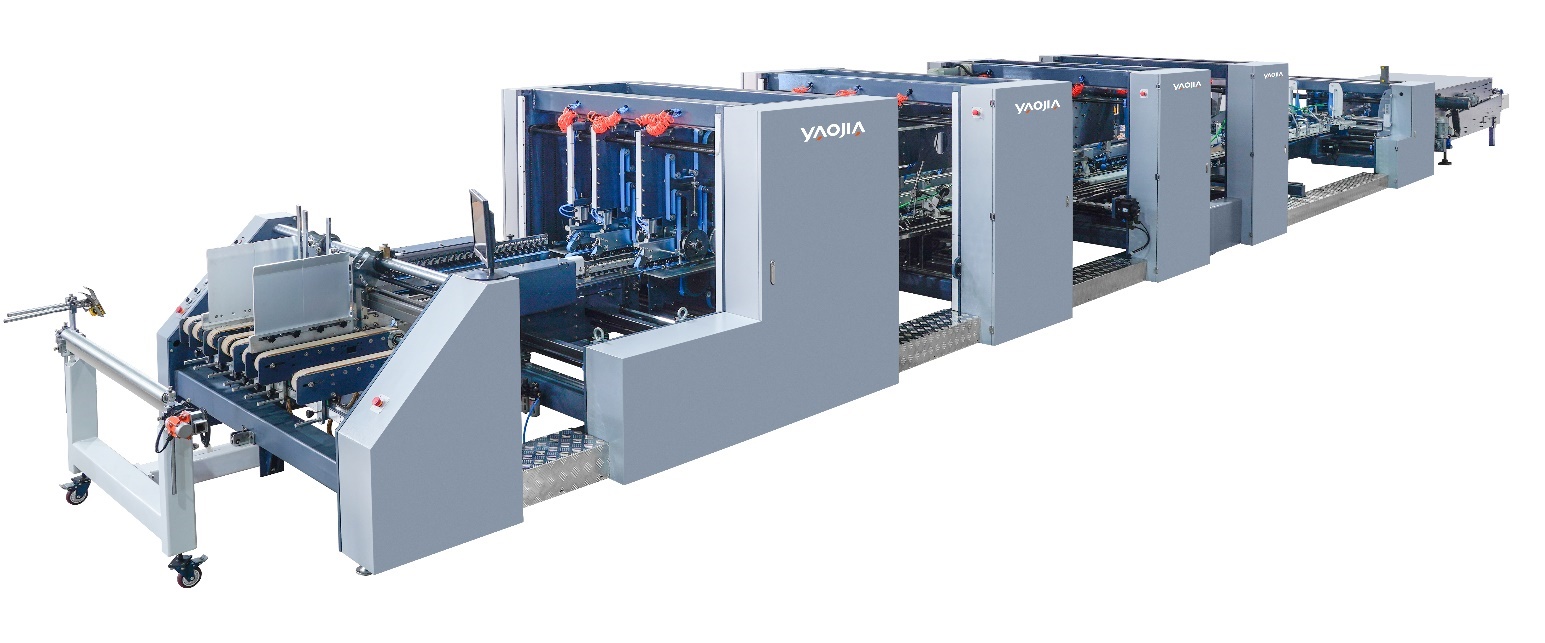

Trombone Unit Corrugated Folder Gluing Machine YJM-G1650SL

Product Overview

The Trombone Unit Corrugated Folder Gluing Machine YJM-G1650SL is YAOJIA’s flagship heavy-duty packaging solution, purpose-built for medium and large-sized box production in the heavy packaging industry. This industrial-grade corrugated box folder gluer features a modular full-servo drive design, delivering exceptional flexibility to process both thin solid cardboard and thick multi-layer corrugated board. Equipped with a professional 4&6 corner device, it supports diverse complex box types, meeting the rigorous demands of industrial bulk packaging production.

Core Advantages & Business Benefits

Modular Full-Servo System for Unmatched Flexibility

Every functional unit of this heavy duty corrugated folder gluer is driven by an independent servo motor, with a modular design that allows customized configuration to match your unique production needs. The pre-fold, crash-lock, trombone and final folding units all support electronic position adjustment via remote control, eliminating complex manual disassembly, drastically reducing changeover time between box types, and improving your production line’s order responsiveness.

High-Speed Heavy-Duty Production for Bulk Orders

With a maximum production speed of up to 300 m/min, this industrial corrugated carton gluing machine delivers outstanding efficiency for high-volume bulk production. It is compatible with 200~1200gsm solid cardboard and E, C, B, AB 3 & 5 layers corrugated board, handling heavy-duty industrial materials with stable performance. The integrated trombone unit with a dedicated clapping device ensures precise box forming, reducing defective rates and material waste costs for your business.

Intelligent Design for Simplified Operation & Maintenance

The machine features an intelligent electronic back folding system with servo motor technology, enabling easy setup for 4&6 corner box production. All functional units are designed for easy accessibility, simplifying daily maintenance and reducing unplanned downtime. The adjustable final folding unit with independent servo control ensures smooth, accurate folding even for complex double-wall and crash-lock bottom boxes.

Technical Specifications

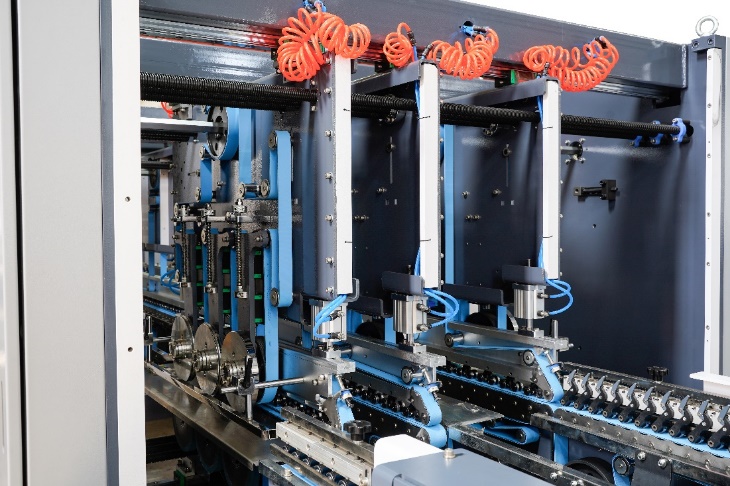

	Pre-Fold Unit Independently driven by servo-motor. 1st and 3rd crease openers. Electronic movements of carriers in and out of working position (Via remote control)

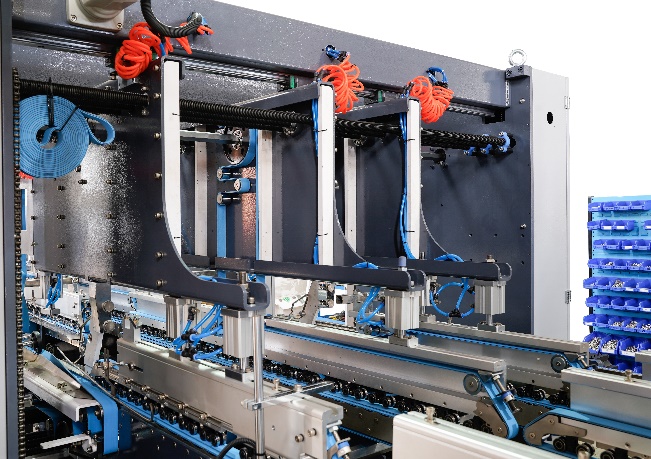

Crash-lock Unit Independently driven by servo-motor Electronic movements of carriers in and out of working position (Via remote control)

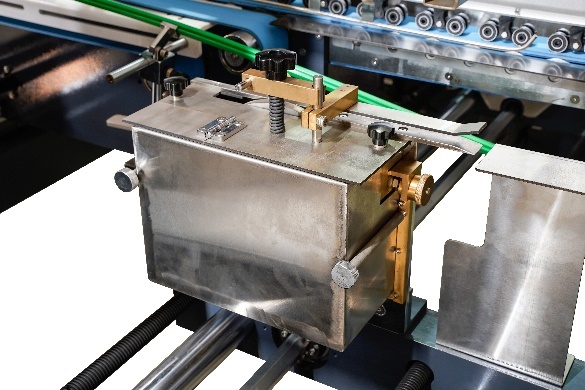

	Lower Gluing Tanks Electronic movements of carriers in and out of working position (Via remote control)

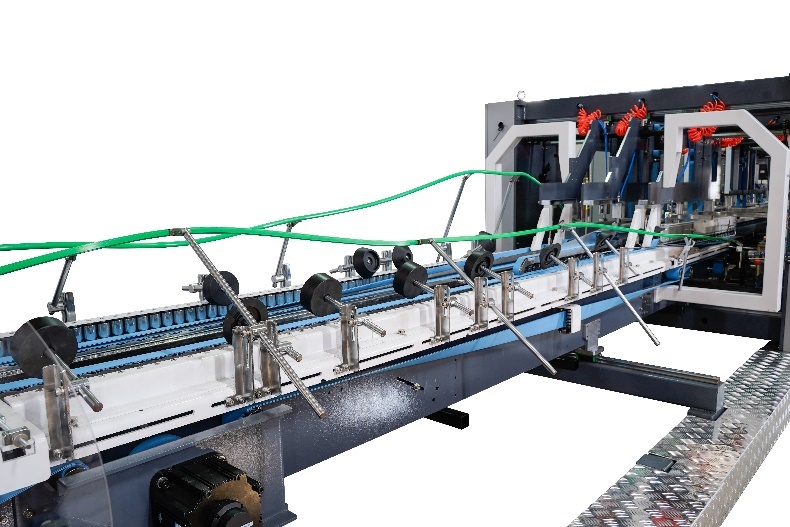

Final Folding Unit Independently driven by servo-motor Smooth and accurate folding of 2nd and 4th creases Outer folding belts adjustable up to 180º with variable speed controlled by two independent servo-motors, L & R side Easy accessibility Mini-box folding device Electronic movements of carriers in and out of working position (Via remote control)

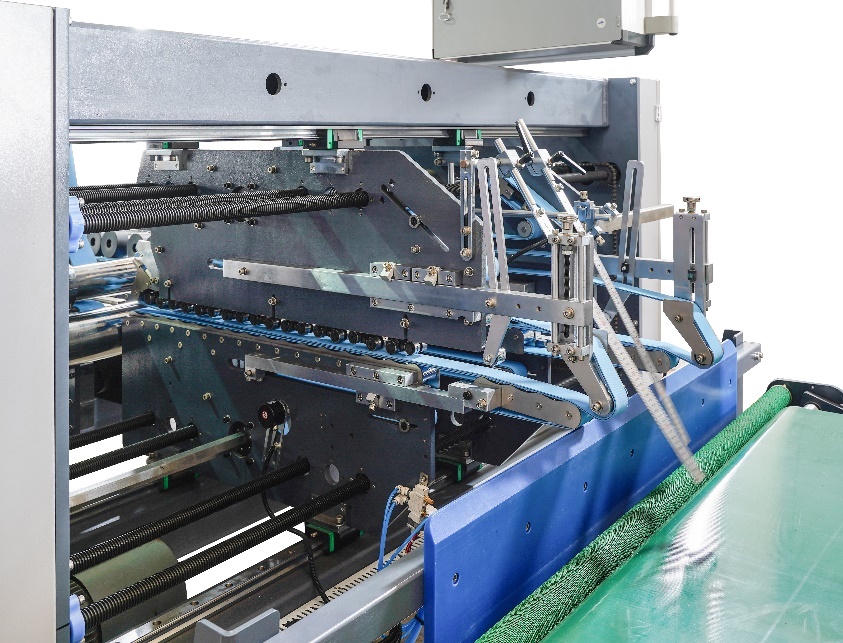

	Trombone Unit Independently driven by servo-motor Clapping Device for corrugated box, improve the box quality Upper and lower drive mechanism for length adjustment Electronic movements of carriers in and out of working position (Via remote control)

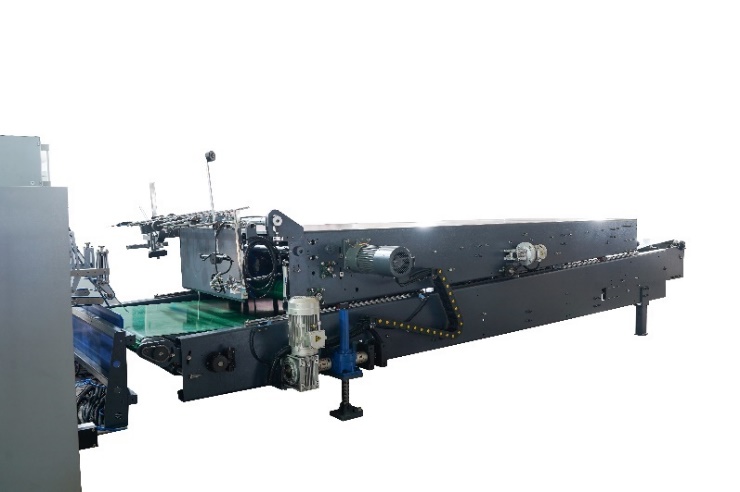

Pressing Unit Independently motorized Front and Backward position Pneumatic pressing (Adjustable via Pneumatic Regulator valves) Squaring Device at conveyor
	Scoring/Creasing Module Independent scoring section driven by servo motors. - Located right after the Side-register section, before the pre-folding section. - Allows for deeper scores if needed.

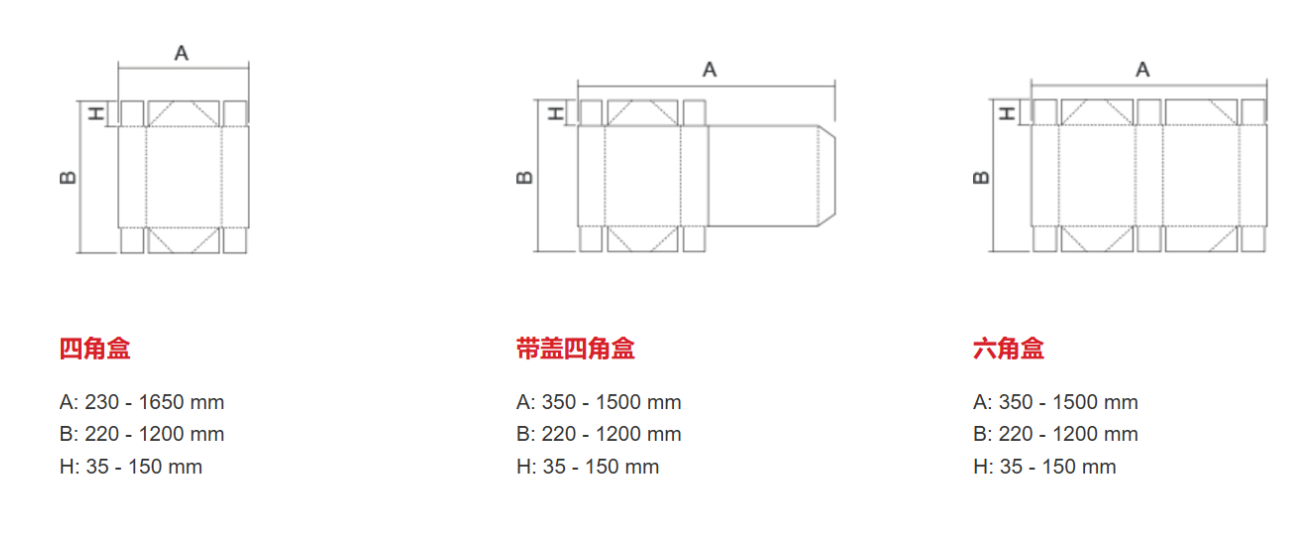

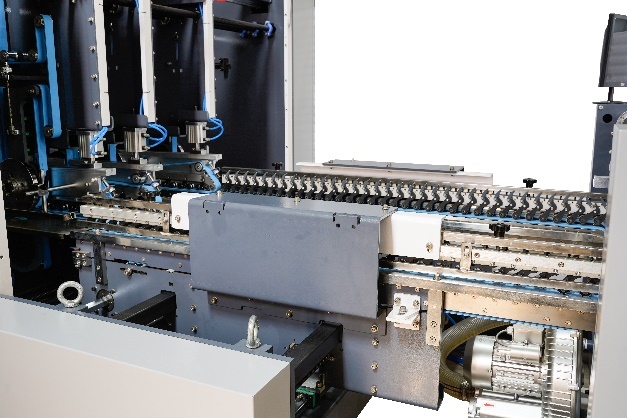

4&6 Corner Device Motorized and untimed electronic back folding system with intelligent servo-motor technology. Two independent servo motors, one for each shaft. Versatile and easy to setup.

Industrial Applications & Suitable Scenarios

This 4&6 corner corrugated box making machine is ideal for industrial packaging manufacturers, logistics packaging enterprises, home appliance brands, automotive component suppliers and electronic product manufacturers. It produces heavy-duty corrugated packaging for home appliances, automotive parts, industrial equipment, electronic products and logistics express delivery, supporting straight-line, crash-lock bottom, double wall and 4&6 corner box production.

Customization & Cooperative Support

YAOJIA offers fully customized configuration for the YJM-G1650 series, with multiple model options (C/AC/PC/SL) to match your production needs. We can tailor functional units, machine specifications and production line integration based on your box type, material and capacity requirements, with full support including on-site installation, operator training and long-term after-sales technical support.

Why Choose YAOJIA

YAOJIA is a leading industrial corrugated packaging machinery manufacturer with decades of R&D and production experience serving industrial enterprises worldwide. We adhere to strict industrial quality standards, with every machine undergoing rigorous performance testing before delivery. Our global service network provides timely technical support, helping clients improve production efficiency, reduce operational costs, and gain a competitive edge in the heavy packaging market.

FAQ

What corrugated flute types are compatible with the YJM-G1650SL?

It supports E, C, B, AB 3 & 5 layers corrugated board, as well as 200~1200 gsm solid cardboard, meeting diverse industrial packaging material needs.

What box types can this machine produce?

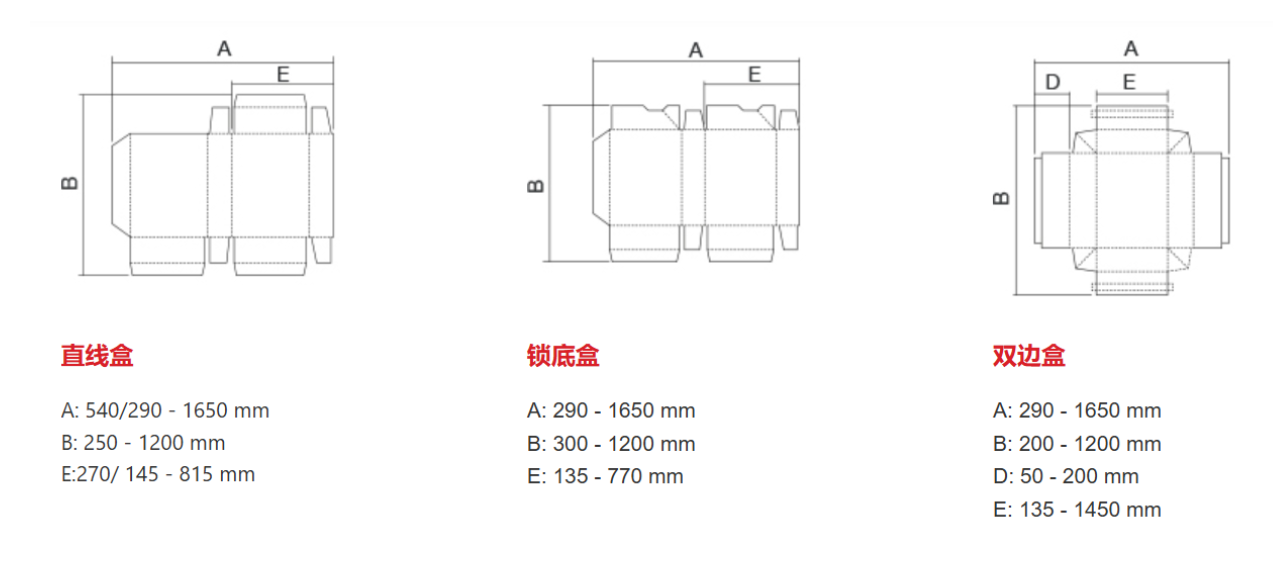

It produces straight-line, crash-lock bottom, double wall and 4&6 corner boxes, covering almost all common industrial corrugated packaging box types.

Can the machine be configured for different production needs?

Yes, the modular design allows flexible configuration of pre-fold, crash-lock and 4&6 corner units, with multiple model options to match your specific requirements.
