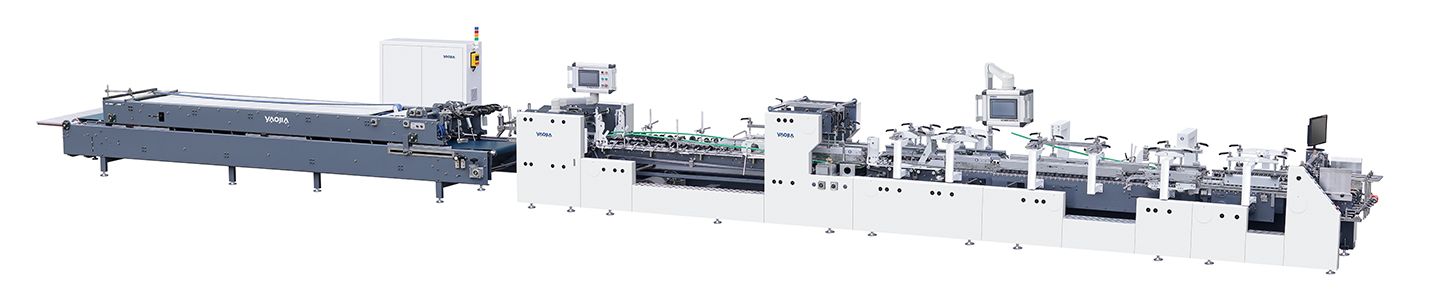

Versatile Folder Gluer YJC-900F

Product Overview

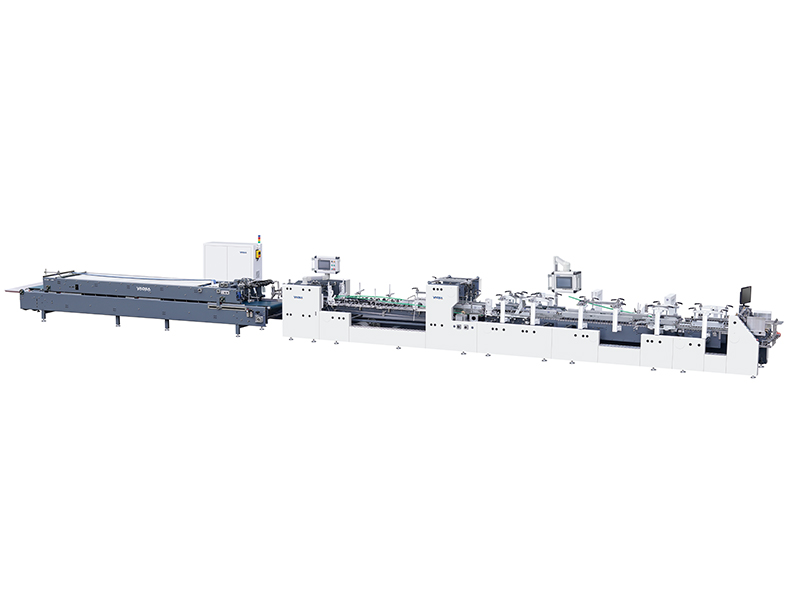

The Pace-Setter YJC-900F Folder Gluer Machine is a high-performance packaging solution engineered for fast and precise folding and gluing of diverse box types. Specializing in straight line boxes, bottom lock boxes, 4&6 corners boxes, side glue boxes, and mini boxes, this automatic folder gluer caters to the packaging needs of food, electronics, logistics, and retail industries. With a maximum speed of 400 meters per minute, it processes cardboard (200–800 gsm) and E/F-flute corrugated board, delivering consistent, professional results that streamline your production line. Its user-friendly design and robust construction make it a reliable choice for high-volume box manufacturing.

What Stands Out

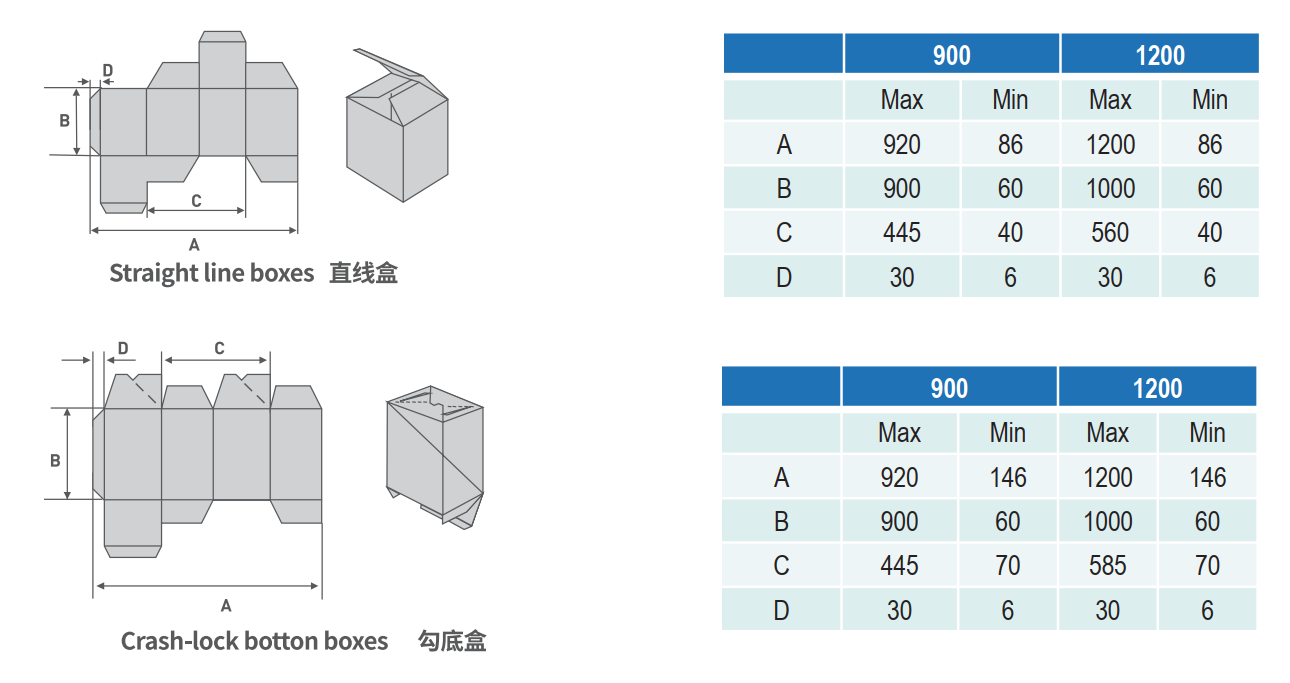

Versatile Box Type Compatibility

Unlike single-purpose machines, the YJC-900F handles straight line boxes, crash-lock bottom boxes, 4&6 corner boxes, and special-shaped boxes—eliminating the need for multiple devices and reducing production costs.

High-Speed Servo-Driven Performance

Powered by servo motors (including 5KW feeder servo and 2.2KW trombone motor), the machine achieves a maximum speed of 400 m/min, outpacing conventional folder gluers while maintaining folding accuracy.

Precision Alignment & Folding

The aligning unit features dual bottom transport carriers, left/right squaring guides, and adjustable top supports, ensuring precise paper alignment. Pre-folding units handle creases up to 180º, breaking fiber for rigid board and ensuring neat folds.

User-Friendly Electronic Control

Equipped with a movable touch screen commander module, the machine allows easy programming of speed, position, and folding hook angles. Electronic movement of carriers (via remote control) simplifies setup and reduces changeover time.

Video

Product Details

Technical Parameters

Processed Materials: Cardboard (200–800 gsm), E-flute/F-flute corrugated board

Max. Speed: 400 m/min; Max. Paper Width: 920 mm; Min. Paper Width: 86 mm

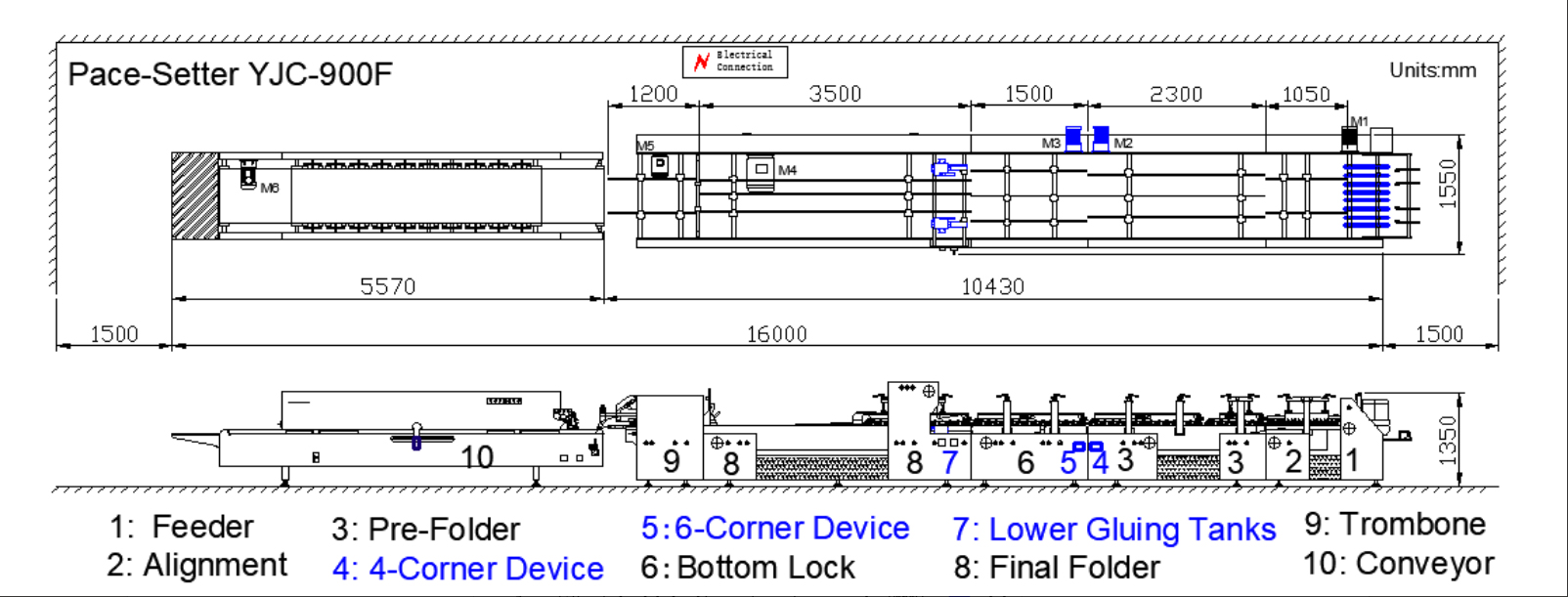

Dimensions: 16 m (L) × 1.55 m (W) × 1.9 m (H); Net Weight: 7.5 Ton

Electrical Connected Load: 31 KW; Power Supply: 380V 3-Phase 50 Hz

Compressed Air Requirement: 6 bar, 10 m³/h; Air Tank Capacity: 60 L

Core Machine Modules

Pre-Fold Unit

First crease pre-folding (up to 180º) and third crease pre-folding (up to 135º)

3 top/bottom carriers and pre-folding belt/sword for fiber-breaking and neat folds

4&6 Corner Device

2 servo drive motors and dedicated folding hooks for 4/6 corner boxes

Lid folding from left/right sides, adaptable to different box designs

Final Folding & Gluing Unit

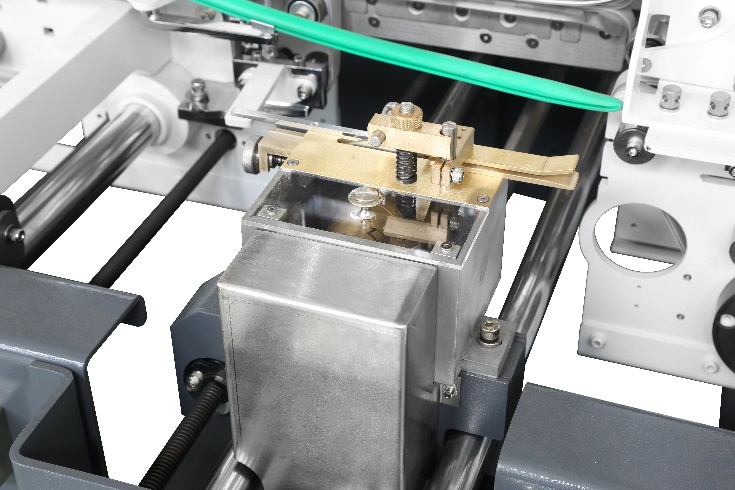

2 glue tanks (left/right) with 4 mm discs for uniform gluing

Adjustable belt speed and removable center carriers for flexible operation

Trombone Unit

Double telescopic design driven by a 2.2KW independent motor

Batch counter and pneumatic kicker for accurate quantity control

Machine Details

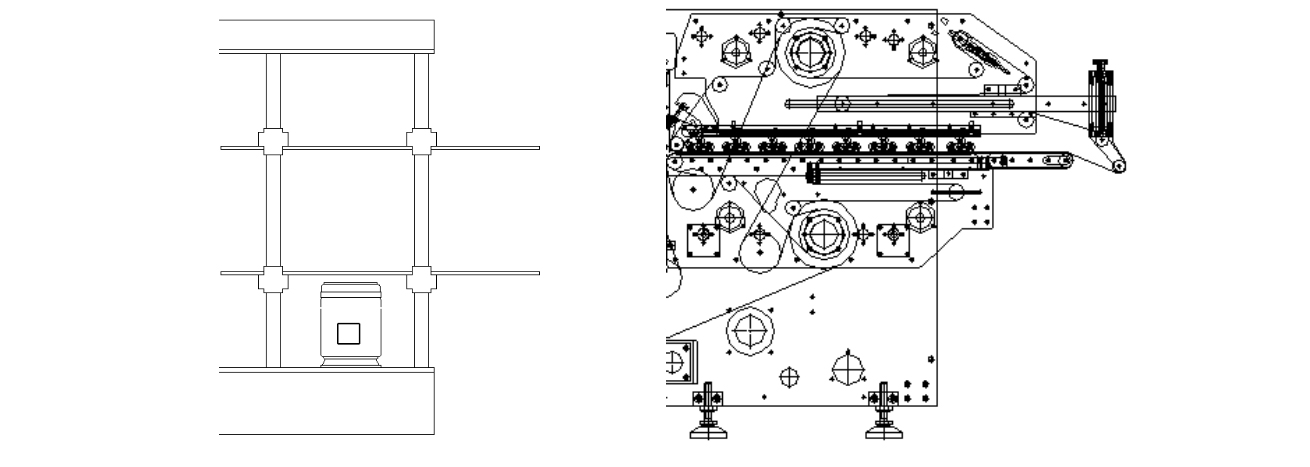

Pre Fold Unit

• 1^st and 3^rd Crease Pre Folding up to 180 and 135 degrees helping to break the fiber of rigged board

• 3 Bottom Carriers

• 3 Top Carriers

• Electronic movements of Carriers in and out of working position (Via remote control)

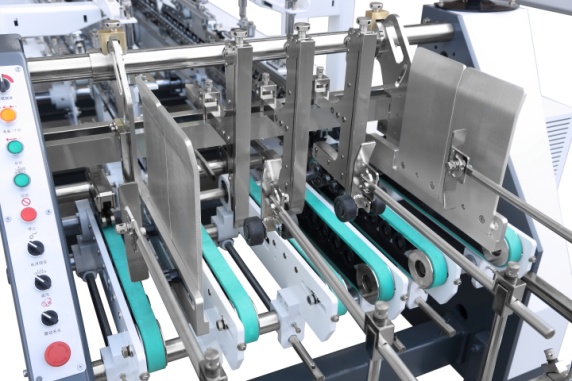

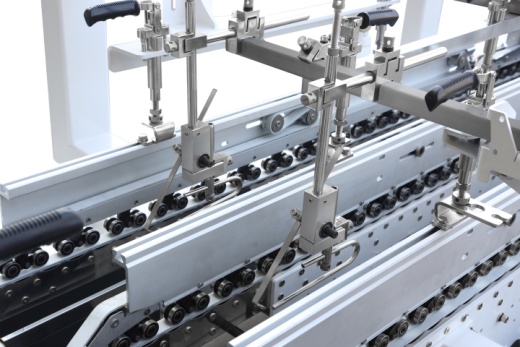

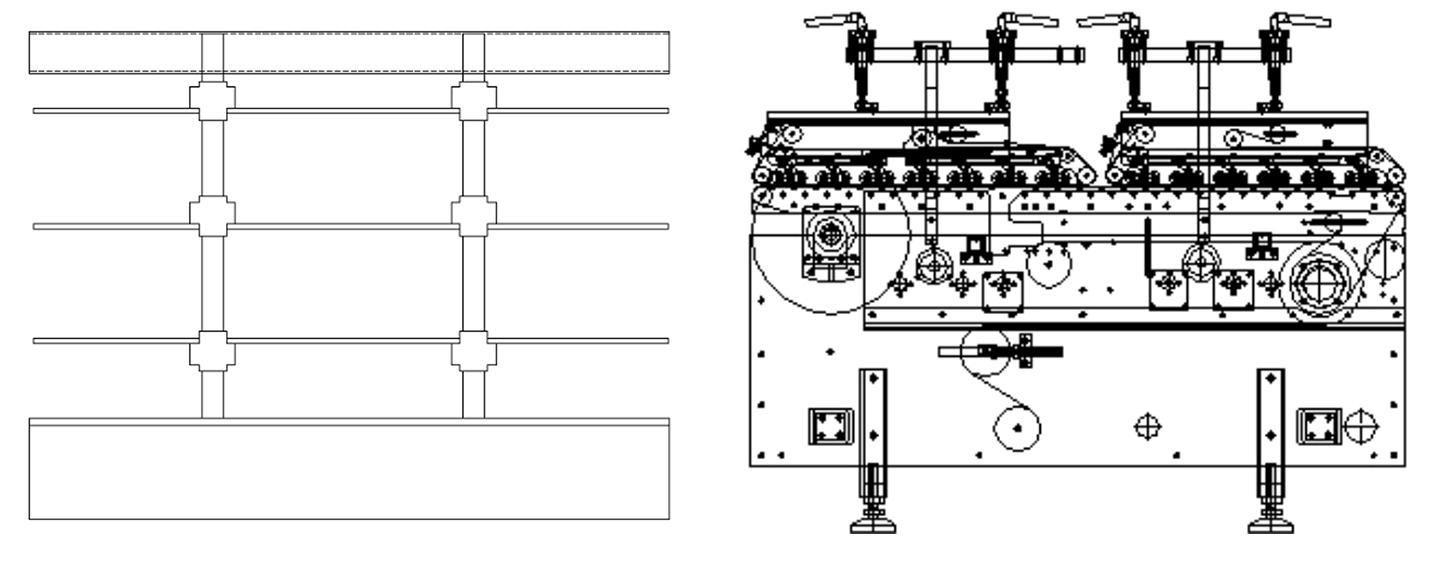

Aligning Unit

• 2 Bottom Transport Carriers

• 1 left Hand Side Squaring Guide

• 1 Right Hand Side Squaring Guide

• 4 Top paper support guides

• Adjustable top Carriers fitted with independent lever system which can be independently applied giving the desired pressure required for the alignment of Substrate carton blank

• Electronic movements of Carriers in and out of working position (Via remote control)

Pre Fold Unit

• First crease line pre-folder up to 180º. Third crease line pre-folder up to 135º

• 3 Bottom Carriers

• 3 Top Carriers

• Pre-folding belt (right) and pre-folding sword (left)

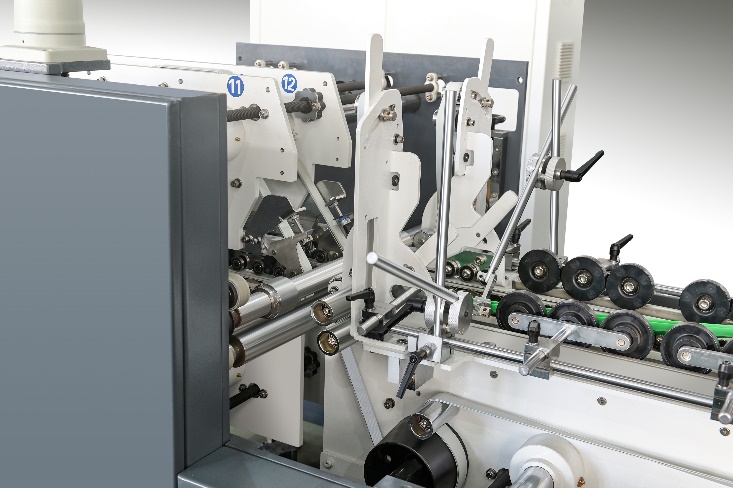

Crash Lock Unit

• 3 Bottom Transport Carriers

• 3 Top Transport Carriers

• 4 Sets of crash lock hooks

• 3 Sets of diagonal folding shoes 2 Unit per Set

•  Electronic movements of Carriers in and out of working position (Via remote control)

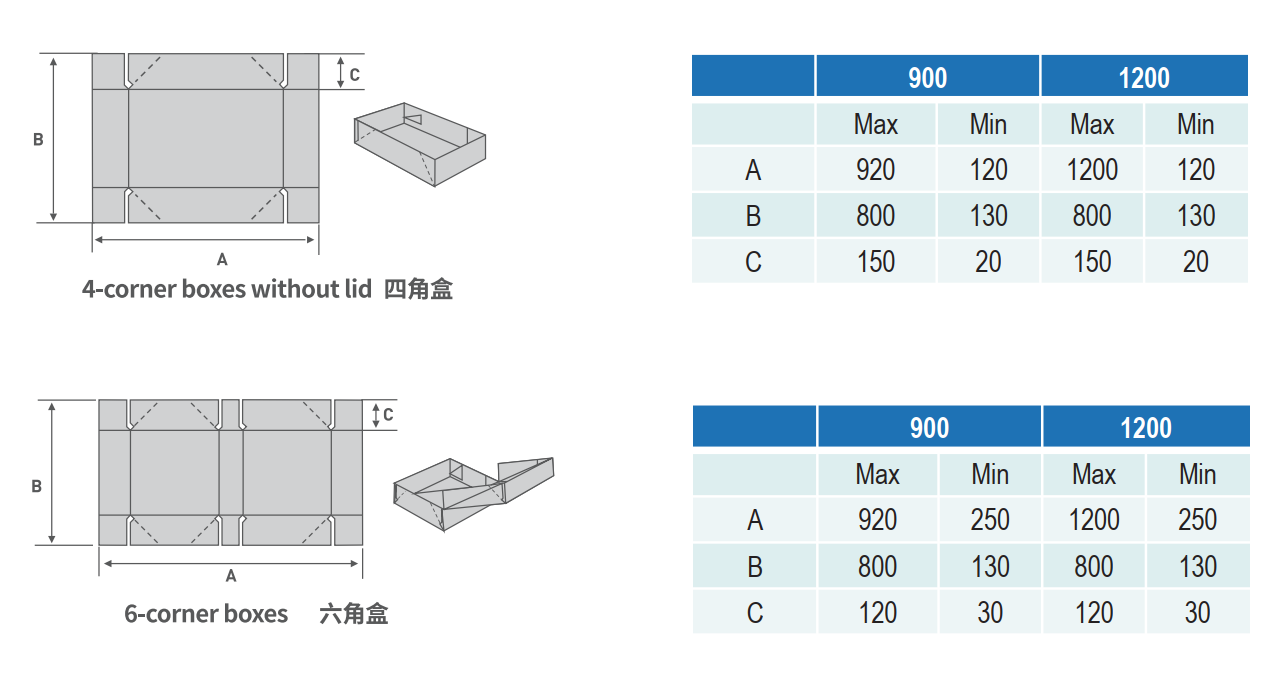

4 And 6 Corner Device

•  2 Servo Drive Motors

•  3 Folding Hooks 4 Corners

•  3 Folding Hooks 6 Corners

•  6 Corner Box Lid Can Be Folded from the Left or Right hand side Of Machine

•  Moveable Touch screen Commander Module (For programing Measurement’s: Speed and position and Electronic angel of the folding Hooks)
