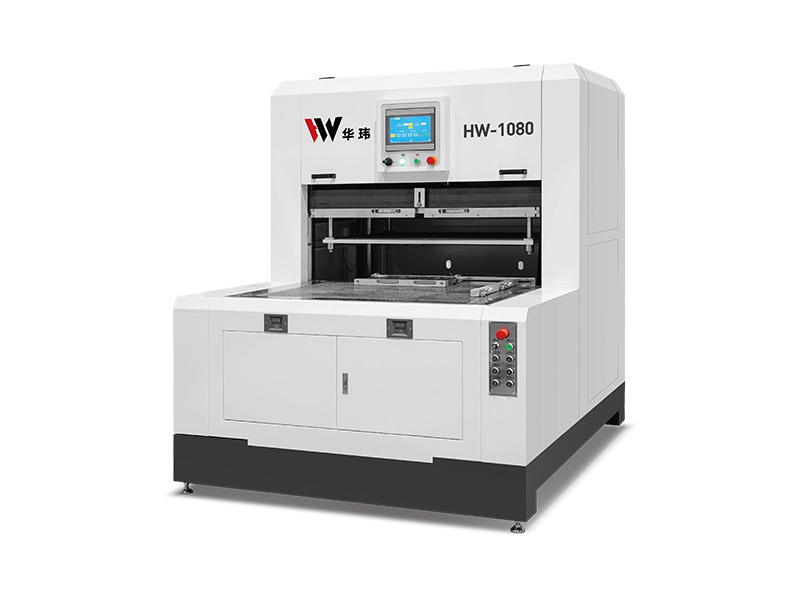

Our HW-1080 Full Page Stripping Blanking Machine is an advanced automatic post-press processing equipment, specially developed for high-efficiency full-page stripping and blanking operations in the printing and packaging industry. Driven by a high-precision servo system and stable hydraulic power, this machine replaces manual stripping and blanking, with a user-friendly PLC touch screen control system for quick programming. It is the core automation equipment for printing enterprises, packaging manufacturers, and paper product processing plants looking to achieve intelligent production upgrading.
The HW-1080 Full Page Stripping Blanking Machine is equipped with high-precision linear bearing rails, servo motors, double guide rails, and ball screws, ensuring smooth and precise movement during high-speed operation. This design strictly controls blanking accuracy, reduces product defect rate, cuts raw material waste, and helps you improve product qualification rate and brand reputation in the market.
Adopting a hydraulic system with an inserted motor and oil temperature cooling fan, the machine maintains constant and large working pressure during long-term continuous operation, avoiding performance fluctuations caused by oil temperature rise. It achieves high-speed blanking, greatly improving production efficiency compared with manual operation, and effectively solving the pain points of high labor cost and low output of manual stripping.
The complete machine has a small footprint, effectively saving valuable plant space for your enterprise. The PLC control system and touch screen interface support quick and simple programming, even new operators can master the operation quickly after short training, greatly reducing labor training costs and adapting to the production needs of multi-batch and multi-specification products.
Parameter | Specification Details |
Model | HW-1080 |
Max. Paper Size | 1080×780mm |
Min. Paper Size | 400×200mm |
Max. Blanking Size | 1030×730mm |
Min. Blanking Size | 40×40mm |
Stripping Height Range | 40-120mm |
Rated Voltage | 380V |
Total Power | 8KW |
Net Weight | 4000kg |
Blanking Speed(times/min) | 45659 |

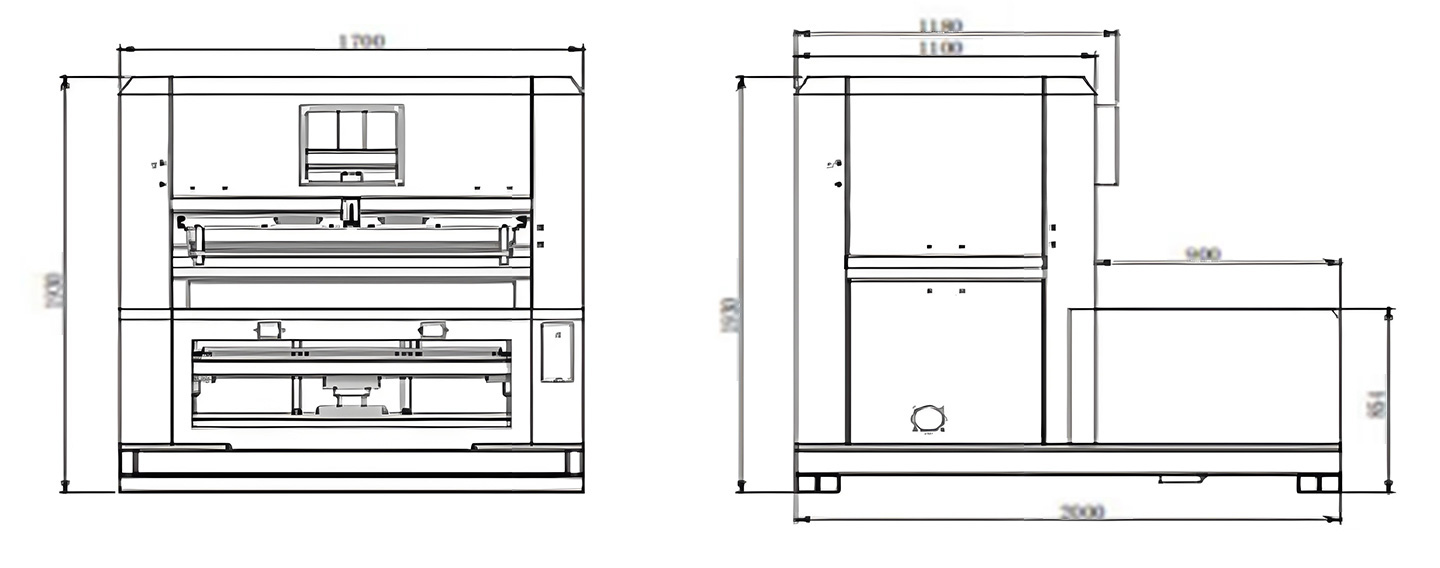

Machine Net Dimension | 2000×1700×1950mm |
Machine Packing Dimension | 2150×1900×2200mm |
This automatic full page stripping blanking machine is widely used in food packaging, pharmaceutical packaging, cosmetic box production, color label processing, gift box manufacturing, and paper card making. It is suitable for mass high-precision stripping and blanking of various paper products, perfectly adapting to the production needs of printing enterprises, packaging factories, and brand supporting processing plants that pursue high efficiency and low cost.
We provide targeted customization services for our industrial partners, including personalized adjustment of paper size adaptation, stripping height optimization, custom program development for special products, and mold matching customization. Our professional team provides full-chain support, including pre-sales process evaluation, on-site installation and commissioning, operation training, and long-term after-sales maintenance, to fully match your unique production needs.
YAOJIA is a professional R&D and manufacturing enterprise of intelligent post-press equipment, focusing on the automation upgrading needs of printing and packaging production lines for many years. We use high-quality core components, strict factory testing standards, and a global service network to provide reliable automation equipment for commercial users around the world, helping you reduce labor dependence, improve production efficiency, and achieve long-term profitable growth.
The maximum supported paper size is 1080×780mm, and the minimum is 400×200mm, adapting to most mainstream product specifications in the printing and packaging industry.
It completely replaces manual stripping and blanking, greatly reducing labor costs and management costs, while improving production efficiency and reducing raw material waste caused by manual operation errors.
We can customize the equipment functions and parameters according to your product characteristics, production process, and site conditions to fully meet your personalized production needs.
Contact our technical team now to get a free custom solution and exclusive quote for the HW-1080 Full Page Stripping Blanking Machine. We also provide free process evaluation and on-site investigation services to help you build the most suitable automated production solution.
