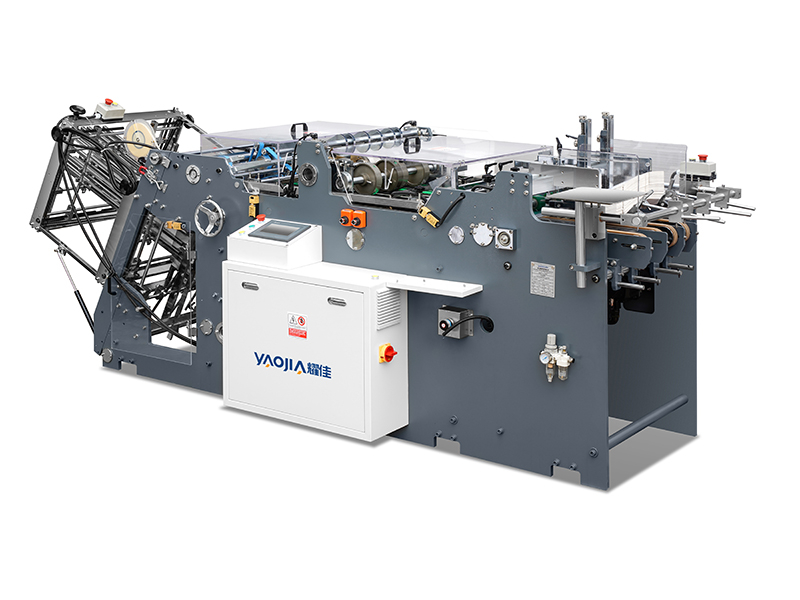

Food Grade Glue Automatic Carton Erecting Machine LHH-800

Product Overview

The Food Grade Glue Automatic Carton Erecting Machine LHH-800 is YAOJIA’s specialized automatic forming solution for food packaging production. This high-performance automatic food carton erecting equipment forms premium food cartons, boxes and containers from cardboard, paperboard, corrugated paper and film coated paper, using food-grade polyvinyl-acetate emulsion water glue to fully comply with global food safety standards. Its compact, robust structure and fully automated workflow deliver consistent, reliable performance for continuous food packaging production.

Core Advantages & Business Benefits

High-Efficiency Stable Production

Powered by an independent servo motor-driven paper feeder, this high speed paper food box making machine delivers a steady speed of 80~180 boxes per minute, with a rigid frame ensuring low noise, long-term durability and minimal downtime. The integrated automatic collection, stacking and counting system eliminates manual sorting labor, cutting operational costs and boosting production efficiency for your business.

Food-Grade Safety & Operator Protection

The machine adopts a food-grade water-glue welding system, meeting international food contact material regulations for safe food packaging production. It is fitted with a hard plastic-glass safety cover that triggers an immediate emergency stop when opened, providing full operator protection while maintaining full production visibility.

Quick Changeover for Flexible Production

With tool-free mold exchange, this takeaway food box making machine enables ultra-fast mold replacement and adjustment, drastically reducing changeover time between box types. The PLC program control system supports complex box structures, allowing you to quickly adapt to changing customer orders and diverse packaging demands.

Technical Specifications

Model:	LHH-800 Carton Erecting Machine
Speed:	80~180 box/minute
Welding Method:	Water-Glue System Welding;
	(Food grade glue, POLYVINYL-ACETATE EMULSION),
Available Material:	150~600gsm board, paperboard, paper, film coated paper, etc.
Material Thickness:	Max. 1.5mm

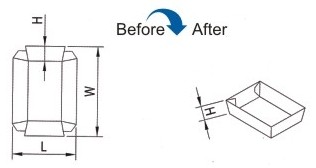

Paper Size:			L=Length: 60~450mm
			W=Width: 60~580mm
			H=Height: 10~200mm
			Angle: 50~300
Power:	4.5KW,
Power Source:	3-phase, 380V, 50/60Hz,
Machine Size (L*W*H):	3520*1510*1420	Pack Size		3550*1550*1700
Weight:	2000KG;
Air Source:	Pressure: 6KG/cm2 ;  (0.6MPa);
	Out-put: 200 L/minute ; (0.2~0.4 m3/minute);
	User Need To Buy Air Compressor

Industrial Applications & Suitable Scenarios

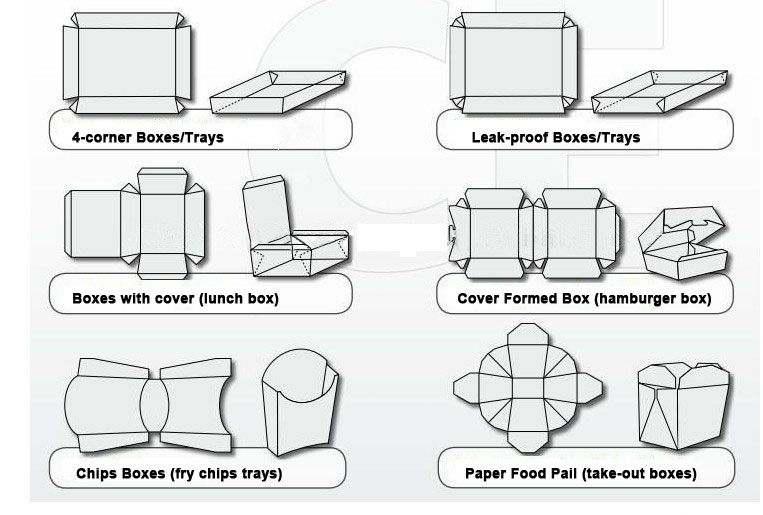

This burger carton forming equipment is purpose-built for food packaging production enterprises, fast food chain suppliers, takeaway catering brands and food processing plants. It produces various food packaging containers including burger boxes, hot dog trays, fries boxes, takeaway food pails, lunch boxes, cake trays, leak-proof food containers and covered meal boxes, suitable for both high-volume bulk production and small-batch customized food packaging production.

Customization & Cooperative Support

YAOJIA provides full customization services for the LHH-800 and its supporting molds, tailored to your specific box size, production speed and production line integration needs. Our support includes pre-sales technical consultation, on-site installation and commissioning, operator training and long-term after-sales maintenance, ensuring optimal equipment performance throughout its service life.

Why Choose YAOJIA

YAOJIA is a professional food packaging machinery manufacturer with years of industry experience, delivering safe, efficient and durable packaging solutions for food production enterprises. All our machines undergo strict quality testing before delivery, with a global service network providing timely technical support for commercial clients worldwide. We prioritize food safety compliance and production efficiency, helping clients gain a competitive edge in the food packaging market.

FAQ

What materials can the LHH-800 process?

It is compatible with 150~600gsm cardboard, paperboard and film coated paper, with a maximum material thickness of 1.5mm.

What is its production speed?

The speed ranges from 80 to 180 boxes per minute, adjustable based on production needs and box complexity.

Does it support custom molds?

Yes, we provide custom mold and machine modification services to meet your unique food packaging requirements.

Get Your Free Custom Solution Today

Contact our technical sales team now for a free tailored solution, detailed quotation and factory video tour for your food packaging production line. Whether you need standard equipment or a fully customized carton erecting system, YAOJIA is here to support your business growth.

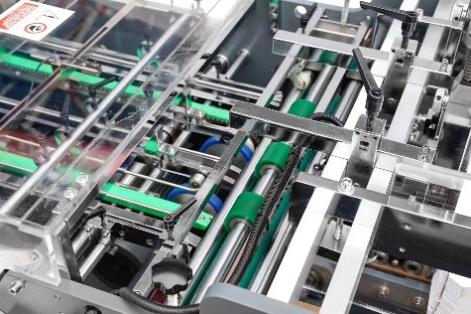

Machine equipped with SAFE COVER, if open it, machine will stop and protect operator.

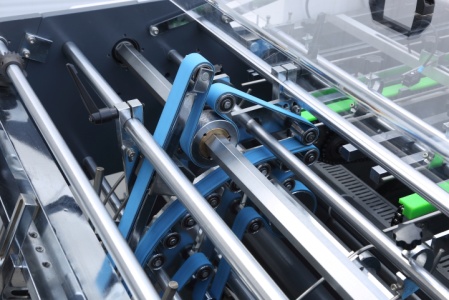

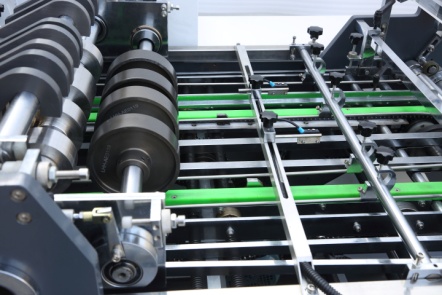

High Speed Feeder Design, Unique Feeder Knife, Easy to Adjust, Flexible and More Stable.

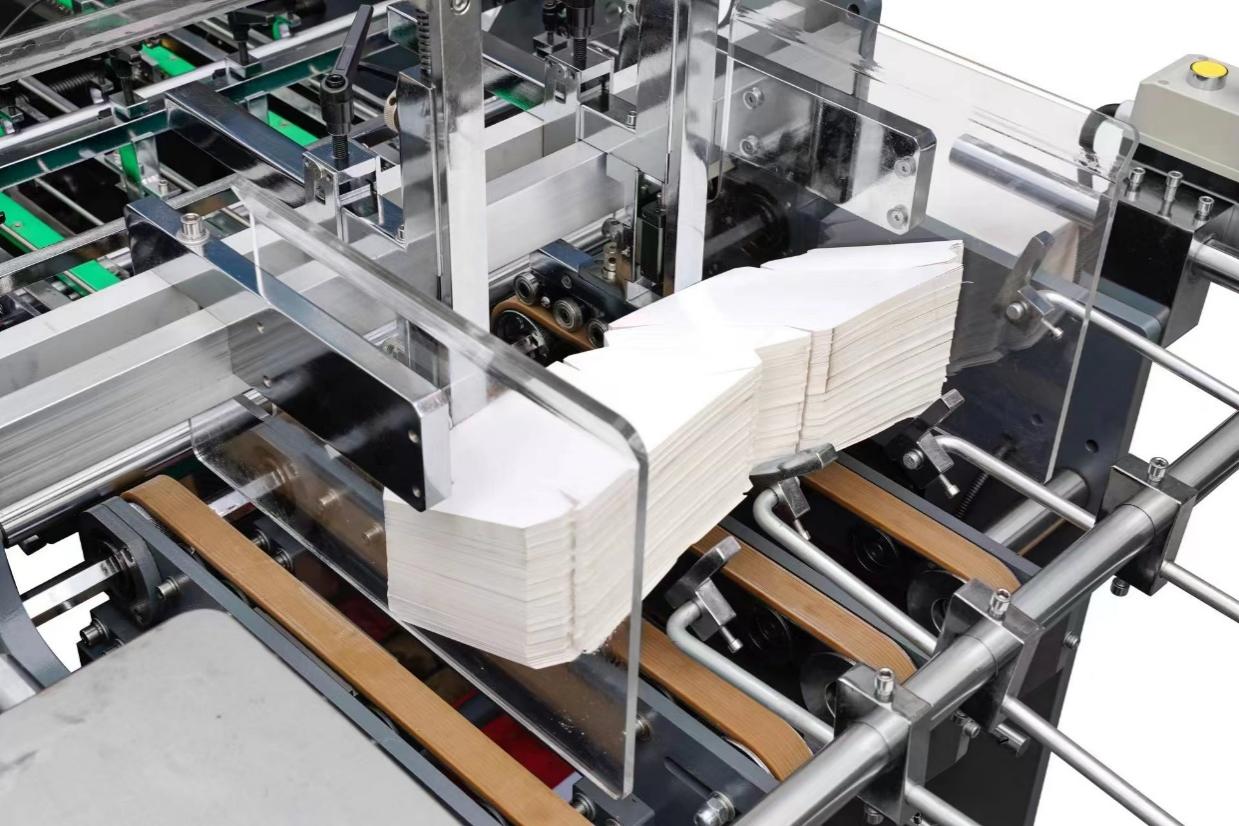

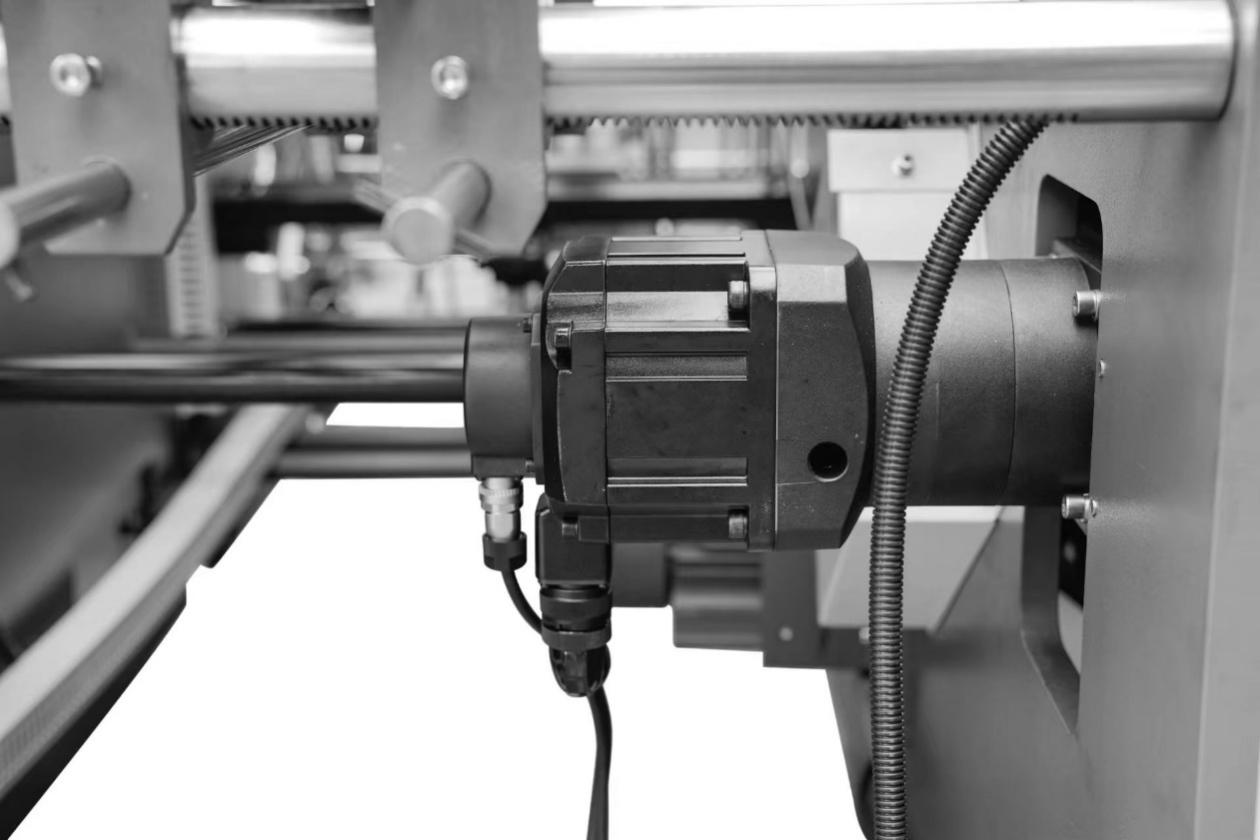

Paper Feeder Driven by SERVO MOTOR Independently

Burger box, fries box, chip box, chip tray, cake tray, lunch box, etc.
